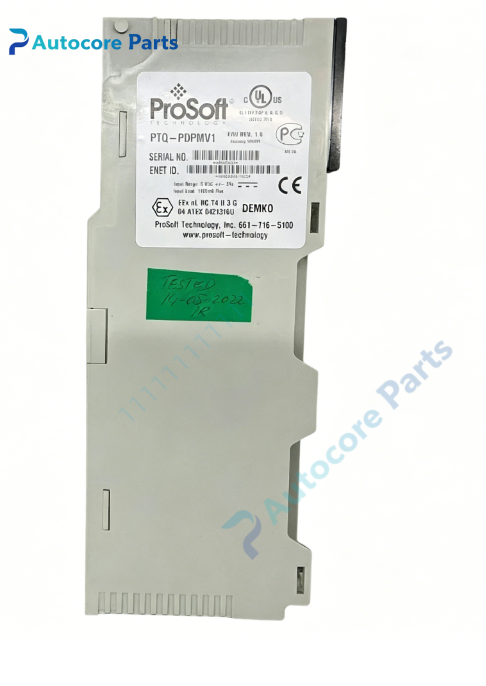

ProSoft PTQ-PDPMV1 Quantum PROFIBUS DP DPV1 Master Module

Technical Specifications

Model:PTQ-PDPMV1

Brand:ProSoft

Product type:Schneider Quantum Chassis PROFIBUS DP DPV1 Master Communication Module

Backplane power:1100mA @5VDC

Communication:1Optically isolated PROFIBUS RS485 DB9 port;110/100Mbps Ethernet RJ45;1DB9 RS232 debug port

Max slave nodes:125

Cyclic I/O data:1536 bytes input,1536 bytes output

Max baud rate:12MBaud

Weight:0.42kg

Operating temperature:0℃ ~ +60℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~95%,non-condensing

Dimension:Quantum single slot module,250mm104mm*40mm

Certification:CE,UL,Class I Division2,PROFIBUS certified

System compatibility

PTQ-PDPMV1 belongs to ProSoft PTQ series in-rack communication module.

It installs into Schneider Quantum PLC chassis,realizes high-speed data exchange with Quantum CPU via Quantum backplane.

It works as PROFIBUS DP DPV1 master to connect PROFIBUS drives,remote I/O,transmitters and field slave instruments.

Compatible with Unity Pro,Concept programming software,supports Quantum hot standby HSBY redundant system.

Suitable for petrochemical,water treatment,power,manufacturing automation PROFIBUS network renovation and spare replacement.

Function

PROFIBUS DP DPV0/DPV1 master module,compliant with IEC61158 standard.

Supports cyclic real-time I/O exchange and DPV1 acyclic read/write,device parameterization,extended diagnosis and alarm.

Supports Sync/Freeze function,slave fault diagnosis and online device parameter modification.

ProSoft Configuration Builder for network configuration;built-in FDT/DTM interface for PACTware commissioning.

Map PROFIBUS slave I/O data to Quantum CPU register area.

Supports up to 125 PROFIBUS slave stations,all standard PROFIBUS baud rate from 9.6k to 12M baud.

Bidirectional data exchange between Quantum PAC and PROFIBUS DP field network.

Installation

Insert module into empty slot of Schneider Quantum chassis.

Wire PROFIBUS RS485 bus cable,install terminal resistor at two ends of bus.

Connect Ethernet or RS232 debug port to PC for network configuration and GSD file import.

Configure I/O mapping in Unity Pro or Concept,download project and check LED indicators after power-up.

Interface

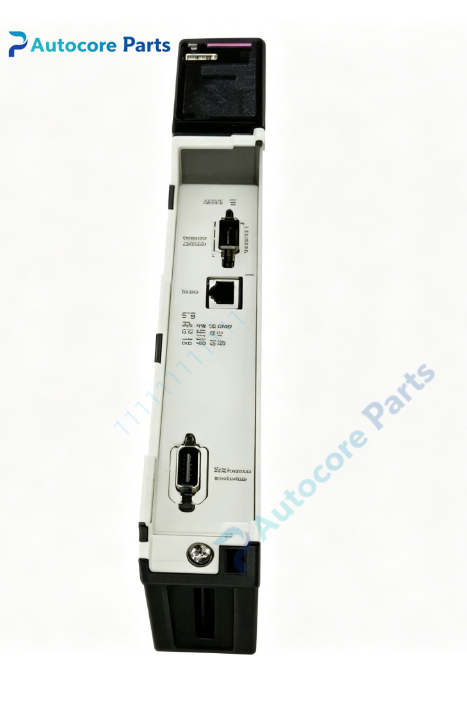

1Optical isolated PROFIBUS RS485 DB9 port,110/100Mbps Ethernet RJ45,1*DB9 RS232 debug port,Quantum backplane connector,LED indicators:PWR,FLT,COM,NET.

Feature

Quantum single slot rack-mounted design,hot swappable.

PROFIBUS RS485 with optical isolation,effectively suppress field interference.

Dual configuration channels:Ethernet and serial port for flexible on-site commissioning.

FDT/DTM tool support,convenient for slave device parameter setting and network troubleshooting.

Supports Quantum hot standby redundant architecture for high reliability control system.

Shock and vibration resistant design,stable operation in industrial cabinet environment.

Diagnostic

Check module power and status LED;communication failure:verify PROFIBUS wiring,bus terminal resistor and baud rate;data abnormal:check GSD file and I/O mapping table.

Product Brief

PTQ-PDPMV1 is ProSoft PTQ series in-chassis PROFIBUS DP DPV1 master module for Schneider Quantum PAC.

It enables Quantum controller to scan and communicate with PROFIBUS DP slave devices,widely used for industrial automation PROFIBUS network maintenance and transformation.

Disclaimer

Product parameters are for reference only and shall not be used as pricing basis. Goods are in short supply and will be powered on for inspection before shipment. Overseas delivery lead time is 3-7 working days. The product is only used for equipment maintenance and transformation.
