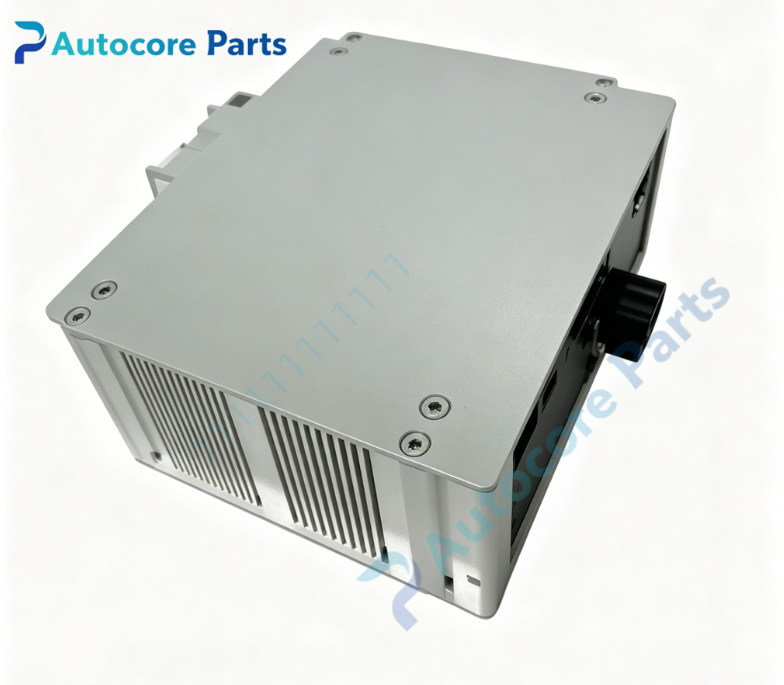

ProSoft 5210-DFNT-RIO EtherNet/IP to Remote I/O Gateway

Technical Specifications

Model:5210-DFNT-RIO

Brand:ProSoft

Product type:Protocol Communication Gateway

Power supply:18-32VDC

Communication:EtherNet/IP Client/Server,Rockwell Remote I/O

Weight:0.36kg

Operating temperature:-40℃ ~ +70℃

Dimension:127mm102mm35mm

Certification:CE,UL

System compatibility

5210-DFNT-RIO belongs to ProLinx series DIN rail gateway.It connects modern EtherNet/IP control network with old Rockwell Remote I/O devices,suitable for obsolete automation system upgrade and spare replacement.

Function

It acts as EtherNet/IP client/server and Remote I/O adapter,realizes bidirectional real-time I/O data mapping between EtherNet/IP PLC and legacy Remote I/O racks.

Installation

DIN rail mounting,connect 24VDC power,wire Ethernet and Remote I/O bus,configure rack address and data mapping via configuration software,check LED indicators.

Interface

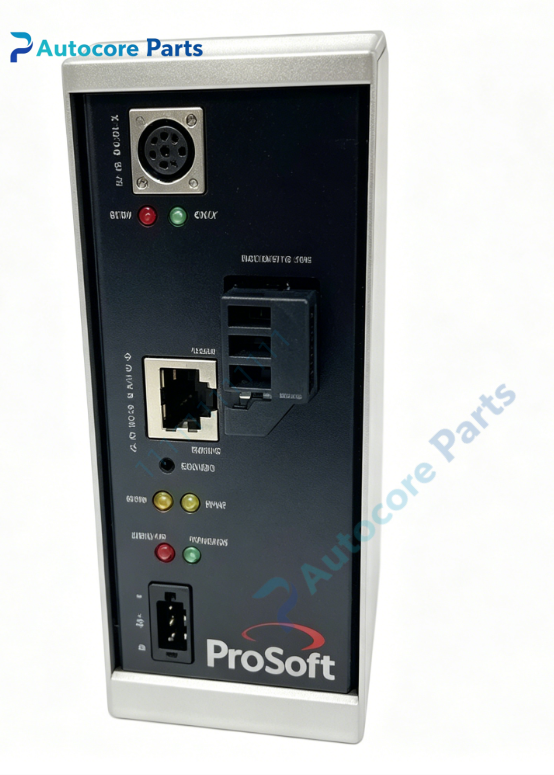

1*10/100Mbps Ethernet RJ45 port,Remote I/O bus terminal,power terminal,run and fault status LED indicators.

Feature

Compact DIN rail housing,supports Rockwell Remote I/O high speed scanning,seamless connection with old racks,stable operation in industrial cabinet environment.

Diagnostic

Check power,link and fault LED;communication failure:verify network cable,bus wiring,rack address and baud rate;data abnormal:check I/O mapping and rack configuration.

Product Brief

5210-DFNT-RIO is ProSoft ProLinx protocol gateway,bridge EtherNet/IP network and Rockwell legacy Remote I/O racks,for old industrial automation system maintenance and transformation.
