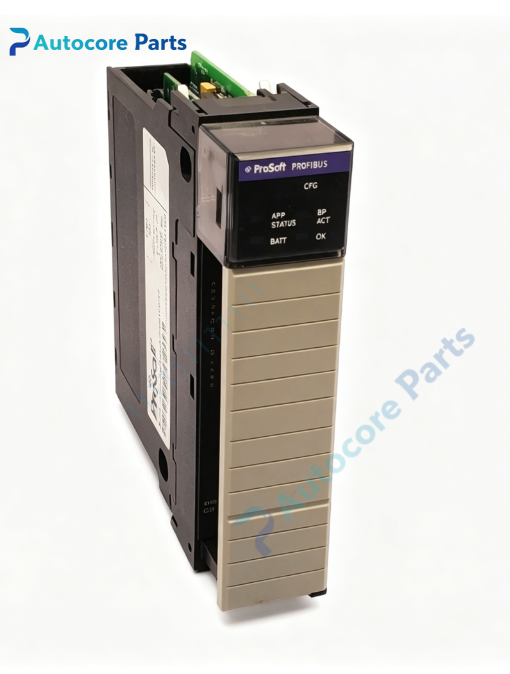

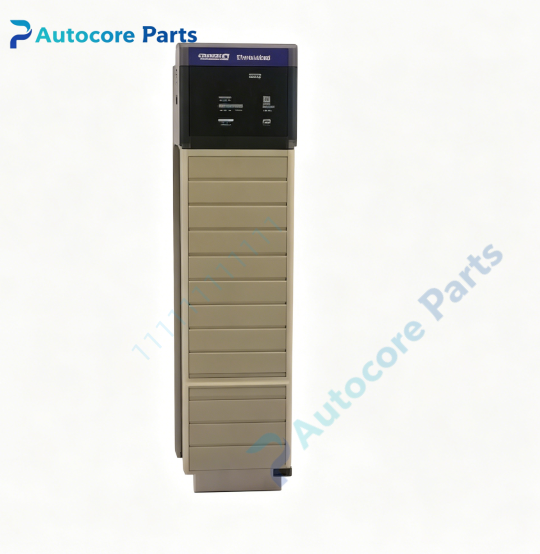

ProSoft MVI56-PDPS CLX PDPS Module

Technical Specifications

Model:MVI56-PDPS

Brand:ProSoft

Product type:ControlLogix In-Chassis PROFIBUS DP Slave Communication Module

Power supply:Supplied via 1756 backplane,800mA @5VDC,3mA @24VDC

Communication:PROFIBUS DP,9-pin D-Sub interface

Weight:0.29kg

Operating temperature:0℃ ~ +60℃

Dimension:Standard 1756 single slot module,120mm87mm32mm

Certification:CE,UL

System compatibility

MVI56-PDPS belongs to ProSoft MVI56 series module.

It plugs directly into Rockwell ControlLogix 1756 rack,compatible with ControlLogix PAC controllers.

It makes ControlLogix act as PROFIBUS DP slave device to communicate with PROFIBUS DP master station.

Suitable for mixed brand automation system renovation and spare replacement.

Function

It works as PROFIBUS DP slave,supports baud rate from 9.6k to 12M bit/s,auto baud detection.

Max 122 words input data,122 words output data,200 words combined maximum I/O data.

Supports freeze mode and sync mode,configurable PROFIBUS node address from 0 to 125.

Data mapped to ControlLogix controller memory via backplane,built-in 400 registers internal database.

Installation

Insert module into ControlLogix chassis backplane,connect PROFIBUS DP cable to D-Sub port.

Configure node address and I/O data length via ProSoft Configuration Builder,import standard GSD file.

Import AOI into Studio5000,download project through RSLinx,check LED indicators after power-up.

Interface

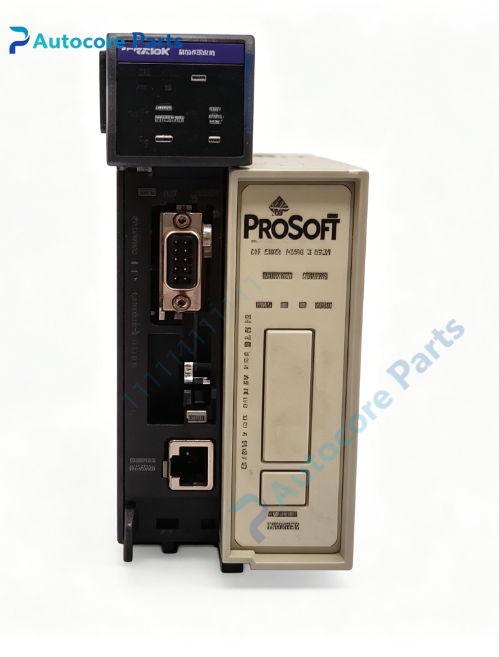

19-pin D-Sub PROFIBUS DP port,1RJ45 CFG RS232 configuration port,1756 backplane connector,module status,network and communication LED indicators.

Feature

Single slot 1756 chassis design,port isolation protection.

Supports data byte swapping,action setting on PROFIBUS communication failure.

Web diagnostic interface,stable operation in industrial cabinet environment.

Diagnostic

Check module run and fault LED;communication failure:verify PROFIBUS cable,terminal resistor and baud rate;data abnormal:check GSD file and I/O mapping configuration.

Product Brief

MVI56-PDPS is ProSoft MVI56 series PROFIBUS DP slave communication module for ControlLogix rack.

It enables ControlLogix PAC to operate as PROFIBUS DP slave and exchange cyclic I/O data with PROFIBUS DP master controller,for multi-brand industrial automation system maintenance and transformation.
