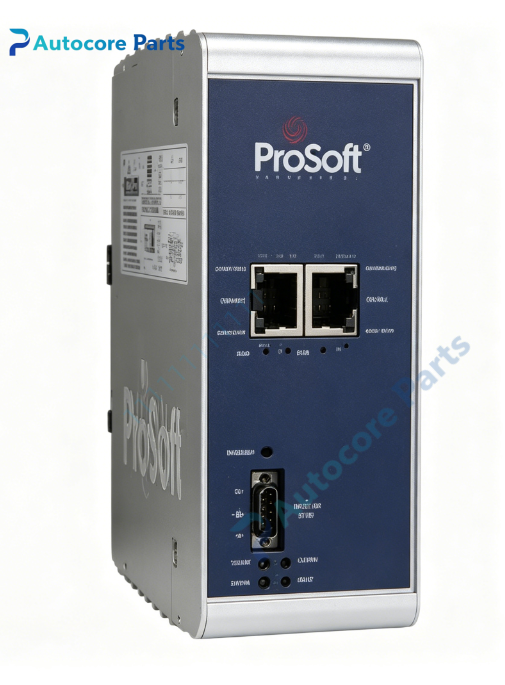

ProSoft PLX82-EIP-61850 EtherNet/IP to IEC 61850 Gateway

Technical Specifications

Model:PLX82-EIP-61850

Brand:ProSoft

Product type:EtherNet/IP Server to IEC 61850 Client Standalone Dual Ethernet Communication Gateway

Power supply:10~36VDC,nominal 24VDC,max 500mA@24VDC

Ethernet interface:210/100Mbps RJ45,two physically isolated independent subnets

IEC61850:Client mode,support up to 20 IED devices,max 300 data attributes per IED

Supported IEC61850 service:MMS,BRCB buffered report,URCB unbuffered report,GOOSE

EtherNet/IP:Adapter/Server mode,support multiple Class1 I/O connections and Class3 MSG connections

Weight:0.52kg

Operating temperature:0℃ ~ +70℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~95%,non-condensing

Dimension:155mm55mm*125mm

Certification:CE,UL,Class I Division2,RoHS

System compatibility

PLX82-EIP-61850 belongs to ProSoft PLX82 series power substation protocol gateway.

Realize data interconnection between Rockwell Logix EtherNet/IP controllers and IEC61850 substation IED intelligent electronic devices.

Compatible with ControlLogix,CompactLogix,Studio5000 programming environment.

Works with protection relays,power quality meters,bay controllers from major electrical brands.

Suitable for power substation renovation,hydropower,wind farm,energy management system integration and spare replacement.

Function

Bidirectional protocol conversion between EtherNet/IP CIP and IEC 61850 MMS/GOOSE.

Dual independent Ethernet ports,EtherNet/IP and IEC61850 run on separated subnets for network isolation.

Act as IEC61850 client to read report data,control data and receive GOOSE event messages from substation IEDs.

Import SCL ICD files,auto generate AOI add-on instruction for Studio5000,directly map IED data to Logix tags.

Support buffered and unbuffered report blocks for periodic and event-driven data transmission.

Built-in NTP time synchronization for substation time consistency.

Web page status view,event log and communication diagnostic function.

Configuration via dedicated PLX82-EIP-61850 Configuration Manager software.

Installation

Mount gateway on DIN rail,connect 10~36VDC power supply and earth terminal.

Connect one RJ45 port to Rockwell EtherNet/IP control network,another port to IEC61850 substation network.

Import IED SCL ICD files in configuration manager,configure data mapping and GOOSE subscription.

Download project to gateway,import generated AOI into Studio5000 Logix project.

Check LED indicators after power-on.

Interface

2*10/100Mbps Ethernet RJ45,power terminal,reset button,LED indicators:PWR,RUN,NET1,NET2,ERR.

Feature

Industrial DIN rail housing,designed for power substation environment.

Dual isolated Ethernet ports,separate OT control network and substation network,improve cybersecurity.

SCL file import function,reduce manual configuration workload and avoid human error.

Native GOOSE subscription,support fast substation event alarm transfer.

Auto AOI generation for Rockwell Logix,simplify power system integration project.

Built-in event log to record IED communication fault and alarm events.

Shock and vibration resistant design,stable long-term operation in substation control cabinet.

Diagnostic

Check PWR and network LED;communication failure:verify IP subnet,SCL file and IED network access;data abnormal:check report control block,GOOSE subscription and tag mapping configuration.

Product Brief

PLX82-EIP-61850 is ProSoft PLX82 series power dedicated protocol gateway.

It bridges Rockwell EtherNet/IP PAC and IEC61850 substation IED relays,supports MMS reporting and GOOSE messaging,widely used for power substation automation system transformation.
