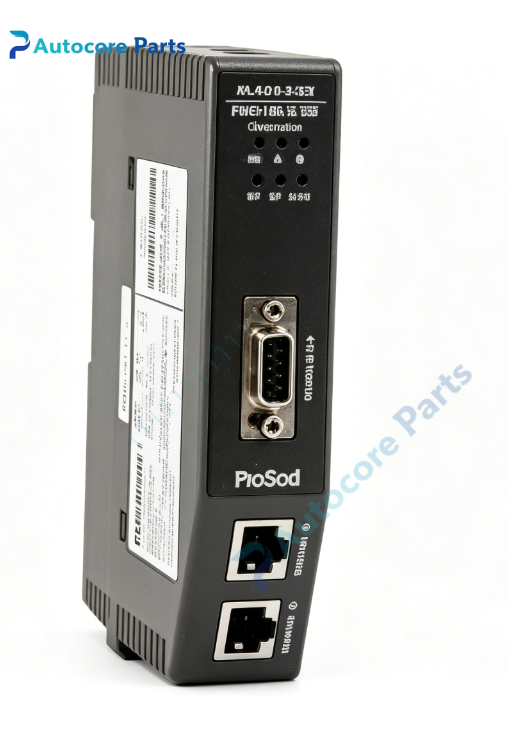

ProSoft PLX51-PBS PROFIBUS DP Slave Gateway

Technical Specifications

Model:PLX51-PBS

Brand:ProSoft

Product type:PROFIBUS DP DPV0/DPV1 Slave to EtherNet/IP / Modbus Multi-protocol Gateway

Power supply:10~36VDC

Ethernet:210/100Mbps RJ45,support DLR(Device Level Ring),auto MDIX

PROFIBUS DP:DPV0/DPV1,slave mode,simulate up to 10 independent slave nodes

PROFIBUS baud rate:9.6k,19.2k,45.45k,93.75k,187.5k,500k,1.5M,3M,6M,12Mbps

Cyclic I/O data:Input 1536 bytes,Output 1536 bytes

Supported upper protocols:EtherNet/IP,Modbus TCP,Modbus RTU

Weight:0.42kg

Operating temperature:-20℃ ~ +70℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~95%,non-condensing

Dimension:149mm34mm*116mm

Certification:CE,UL,Class I Division2

System compatibility

PLX51-PBS belongs to ProSoft PLX51 series PROFIBUS DP slave protocol gateway.

It exchanges data between Siemens PROFIBUS DP master system and Rockwell Logix EtherNet/IP controllers.

Compatible with ControlLogix,CompactLogix,Siemens S7-300/S7-400 PROFIBUS master PLC.

Support FactoryTalk View and Modbus SCADA system.

Suitable for automotive production line,water treatment,petrochemical,power plant cross-brand PLC network integration and spare replacement.

Function

Work as PROFIBUS DP DPV0/DPV1 slave,can simulate up to 10 independent PROFIBUS slave nodes.

Dual Ethernet ports,support DLR ring network topology,also serve as embedded network switch.

Bidirectional data conversion between PROFIBUS DP slave and EtherNet/IP / Modbus TCP / Modbus RTU.

EtherNet/IP direct-to-tag function,data directly written into Logix controller tags,dynamic AOI auto generation.

Built-in PROFIBUS packet capture tool for on-site commissioning and troubleshooting.

Support NTP time synchronization and non-volatile event log for fault recording.

Built-in web server for module status view,diagnostic statistics and parameter configuration.

Configuration via PLX50 Configuration Utility.

Installation

Mount gateway on DIN rail,connect 10~36VDC power supply and earth terminal.

Connect PROFIBUS DP bus cable to DB9 terminal,set terminal resistor according to bus requirement.

Connect dual RJ45 ports to EtherNet/IP or Modbus TCP network,configure DLR if required.

Set PROFIBUS slave address,baud rate and I/O mapping via PLX50 Configuration Utility.

Check LED indicators after power-on.

Interface

2*10/100Mbps Ethernet RJ45,PROFIBUS DP DB9 terminal,power & earth terminal,LED indicators:PWR,RUN,BF,AUX.

Feature

DIN rail installation,compact structure,suitable for industrial cabinet installation.

Dual Ethernet with DLR ring function,improve network redundancy reliability.

Simulate multiple PROFIBUS slave nodes,save hardware cost for multi-node integration.

Large cyclic I/O data capacity,support high-volume data transmission.

Built-in bus diagnostic and packet capture,reduce PROFIBUS network debugging difficulty.

Dynamic AOI for Rockwell Logix,shorten project programming cycle.

Shock and vibration resistant design,stable long-term operation in industrial cabinet.

Diagnostic

Check PWR and BUS LED;communication failure:verify PROFIBUS wiring,bus terminal resistor and baud rate;data abnormal:check I/O mapping,slave station address and Ethernet DLR status.

Product Brief

PLX51-PBS is ProSoft PLX51 series PROFIBUS DP slave protocol gateway.

It acts as multiple PROFIBUS DP slave nodes to exchange data with PROFIBUS master controllers and transfer data to EtherNet/IP or Modbus system,widely used for cross-brand automation system integration transformation.
