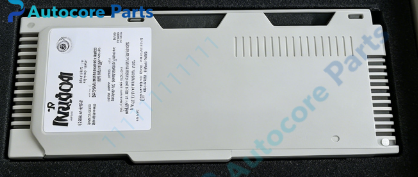

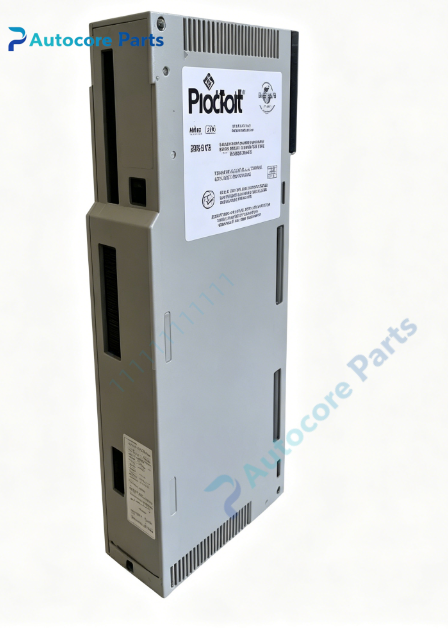

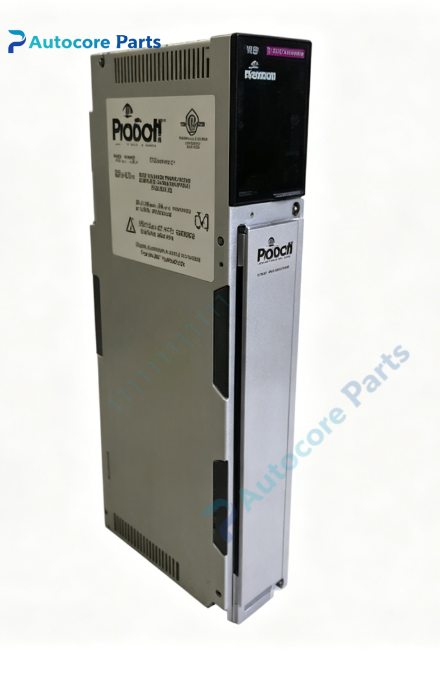

ProSoft PTQ-AFC Quantum Liquid & Gas Flow Computer Module

Technical Specifications

Model:PTQ-AFC

Brand:ProSoft

Product type:Schneider Quantum Chassis Liquid & Gas Flow Computer Module

Backplane power:1100mA @5VDC

Communication:3 serial ports;1DB9 RS232 debug port,2DB9 RS232/422/485 jumper selectable Modbus ports

Max meter runs:16

Calculation standards:AGA3,AGA7,AGA8,API2540

Weight:0.45kg

Operating temperature:0℃ ~ +60℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~95%,non-condensing

Dimension:Quantum single slot module,250mm104mm40mm

Certification:CE,UL,Class I Division2,Industry Canada custody transfer certified

System compatibility

PTQ-AFC belongs to ProSoft PTQ series in-rack flow computer module.

It installs into Schneider Quantum PLC chassis,exchanges data with Quantum CPU via Quantum backplane.

It receives pulse and analog data from Quantum I/O modules,performs hydrocarbon liquid and gas flow calculation.

Compatible with Unity Pro and Concept programming software.

Suitable for oil & gas pipeline,metering station,custody transfer,leak balance monitoring system renovation and spare replacement.

Function

Integrated flow computer for oil and gas custody transfer measurement.

Supports AGA3,AGA7,AGA8 gas calculation and API2540 liquid correction,max 16 meter runs.

Calculates flow rate,volume,mass,energy accumulation,temperature and pressure compensation.

Built-in Modbus master/slave serial ports to connect chromatograph and field Modbus instruments.

Event audit log with timestamp for configuration modification and alarm records,security locking function for custody transfer.

AFC Manager Windows software for offline configuration,online monitoring and calculation verification.

Calculation results transferred to Quantum CPU,then uploaded to upper SCADA host.

Installation

Insert module into empty slot of Schneider Quantum chassis.

Wire serial cable to Modbus field instruments,connect DB9 RS232 port to PC for configuration.

Set serial communication parameters in AFC Manager,download flow meter configuration to module flash memory.

Map flow calculation data in Unity Pro or Concept,check LED indicators after power-up.

Interface

3*serial ports(RS232/RS422/RS485),Quantum backplane connector,LED indicators:PWR,FLT,COM,NET.

Feature

Quantum single slot rack-mounted design,realize PLC + flow computer integrated solution.

Certified for custody transfer trade metering,meets oil & gas industry measurement requirements.

Timestamped audit trail and password locking to prevent unauthorized parameter modification.

Isolated serial communication ports to suppress field interference.

Shock and vibration resistant design,stable operation in oil gas metering cabinet environment.

Diagnostic

Check module power and status LED;communication failure:verify serial wiring,baud rate and bus terminal resistor;data abnormal:check meter configuration and pressure/temperature input values.

Product Brief

PTQ-AFC is ProSoft PTQ series in-chassis flow computer module for Schneider Quantum PAC.

It implements high precision oil and gas flow compensation and custody transfer calculation,widely used for pipeline metering station automation system maintenance and transformation.
