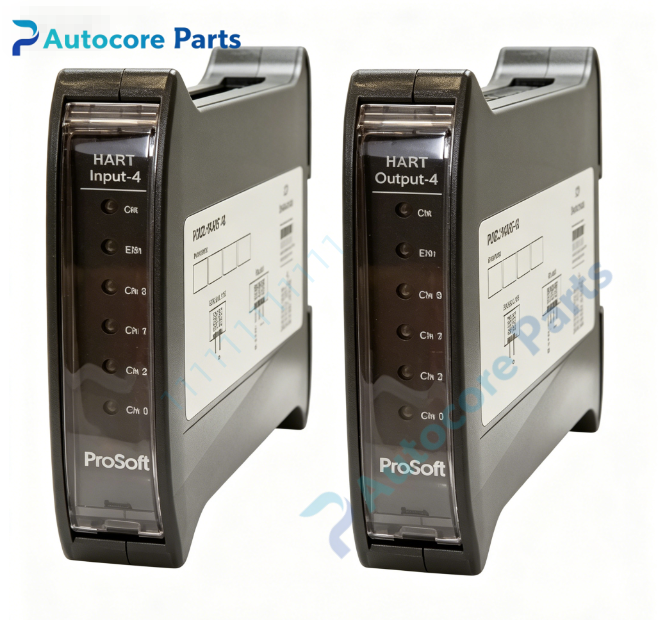

ProSoft PLX51-HART-4I Four Channel HART Input Module

Technical Specifications

Model:PLX51-HART-4I

Brand:ProSoft

Product type:4-Channel HART & 4-20mA Analog Input Multi-protocol Ethernet Module

Power supply:10~28VDC

Ethernet:110/100Mbps RJ45,auto MDIX,max 10 CIP connections,max 20 TCP connections

HART channel:4 independent HART input channels

ADC resolution:12 bit

Input range:0~22mA,current limit 34mA

Input impedance:247.5Ω

Accuracy:<0.15% (calibrated at 25℃),<0.30% uncalibrated

HART mode:point-to-point,multidrop

Supported ethernet protocols:EtherNet/IP,Modbus TCP,DNP3 TCP/UDP,PCCC

Weight:0.38kg

Operating temperature:-20℃ ~ +70℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~95%,non-condensing

Dimension:120mm22.5mm*101mm

Certification:CE,UL,Class I Division2

System compatibility

PLX51-HART-4I belongs to ProSoft PLX51 series HART input module.

Collect 4-20mA and HART digital data from HART field transmitters.

Compatible with Rockwell ControlLogix,CompactLogix,SLC500,PLC-5,MicroLogix.

Support FactoryTalk View SCADA system.

Suitable for petrochemical,power plant,water treatment,process industry HART instrument network upgrade and spare replacement.

Function

Acquire analog 4-20mA and HART digital variables from up to 4 HART field transmitters.

Support point-to-point and multidrop HART field bus connection.

Multi-protocol conversion:EtherNet/IP,Modbus TCP,DNP3 TCP/UDP,PCCC.

EtherNet/IP direct-to-tag technology,data directly written into Logix controller tags.

Built-in web server for module configuration,HART device status and diagnostic information.

Support HART packet capture for fieldbus communication troubleshooting.

Compatible with redundant ControlLogix control system.

Configuration via PLX50 Configuration Utility.

Installation

Mount module on DIN rail,connect 10~28VDC power supply and earth terminal.

Wire 4-20mA/HART field instruments to each HART channel terminal.

Connect RJ45 port to control Ethernet network.

Set communication protocol and HART channel parameters via PLX50 Configuration Utility.

Check LED indicators after power-on.

Interface

110/100Mbps Ethernet RJ45,4HART/4-20mA input terminals,power & earth terminal,LED indicators:PWR,ERR,COM,NET.

Feature

Thin DIN rail module,save cabinet installation space.

4-channel HART input,collect analog and digital HART variables simultaneously.

Multi Ethernet protocol selection,adapt Logix PLC,Modbus SCADA and DNP3 master station.

Support multidrop HART bus to reduce field wiring cost.

Built-in web diagnostic page,view instrument health status remotely.

Support migration replacement for old MVI56-HART / MVI69-HART module.

Shock and vibration resistant design,stable long-term operation in process plant cabinet.

Diagnostic

Check PWR and communication LED;communication failure:verify field loop wiring,loop resistance and HART device address;data abnormal:check tag mapping and protocol selection configuration.

Product Brief

PLX51-HART-4I is ProSoft PLX51 series four channel HART input module.

It reads 4-20mA analog and HART digital data from field transmitters and converts to EtherNet/IP,Modbus TCP or DNP3 data,widely used in process automation HART instrument integration and system renovation.
