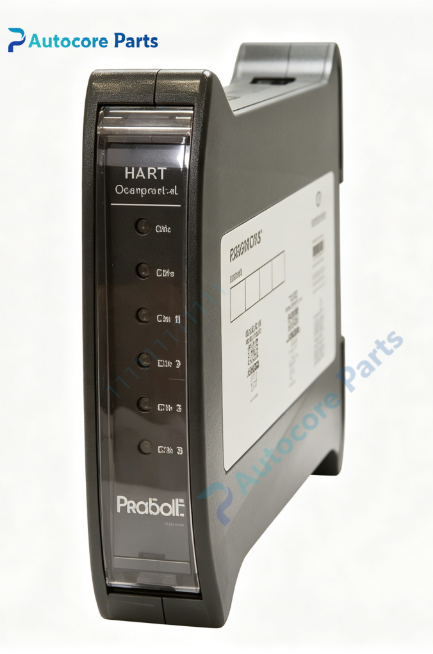

ProSoft PLX51-HART-4O Four Channel HART Output Module

Technical Specifications

Model:PLX51-HART-4O

Brand:ProSoft

Product type:4-Channel HART & 4-20mA Analog Output Multi-protocol Ethernet Module

Power supply:10~28VDC

Ethernet:110/100Mbps RJ45,auto MDIX,max 10 CIP connections,max 20 TCP connections

HART channel:4 independent HART output channels

DAC resolution:16 bit

Output range:0~22mA

Load resistance:50~1170Ω,inductive load less than 50mH

Accuracy:<0.15% (calibrated at 25℃),<0.30% uncalibrated

HART mode:point-to-point,multidrop

Supported ethernet protocols:EtherNet/IP,Modbus TCP,DNP3 TCP/UDP,PCCC

Weight:0.38kg

Operating temperature:-20℃ ~ +70℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~95%,non-condensing

Dimension:120mm22.5mm*101mm

Certification:CE,UL,Class I Division2

System compatibility

PLX51-HART-4O belongs to ProSoft PLX51 series HART output module.

Output 4-20mA analog and HART digital command to HART field valve positioner.

Compatible with Rockwell ControlLogix,CompactLogix,SLC500,PLC-5,MicroLogix.

Support FactoryTalk View SCADA system.

Suitable for petrochemical,power plant,water treatment,process industry HART control loop upgrade and spare replacement.

Function

Convert upper controller commands to 4-20mA analog signal and HART digital signal for field HART devices.

Support point-to-point and multidrop HART fieldbus connection.

Multi-protocol conversion:EtherNet/IP,Modbus TCP,DNP3 TCP/UDP,PCCC.

EtherNet/IP direct-to-tag technology,read command data directly from Logix controller tags.

Support fail-safe mode,freeze output or set predefined value under PLC fault/program mode.

Built-in web server for module configuration,HART device status and diagnostic information.

Support HART packet capture for fieldbus communication troubleshooting.

Compatible with redundant ControlLogix control system.

Configuration via PLX50 Configuration Utility.

Installation

Mount module on DIN rail,connect 10~28VDC power supply and earth terminal.

Wire each channel to HART valve positioner or HART actuator.

Connect RJ45 port to control Ethernet network.

Set communication protocol,loop parameters and fail-safe mode via PLX50 Configuration Utility.

Check LED indicators after power-on.

Interface

110/100Mbps Ethernet RJ45,4HART/4-20mA output terminals,power & earth terminal,LED indicators:PWR,ERR,COM,NET.

Feature

Thin DIN rail module,save cabinet installation space.

4-channel HART output,drive analog control loop and exchange HART digital variables.

Multi Ethernet protocol selection,adapt Logix PLC,Modbus SCADA and DNP3 master station.

Support multidrop HART bus to reduce field wiring cost.

Configurable fail-safe output state,protect process equipment during communication failure.

Built-in web diagnostic page,view instrument health status remotely.

Shock and vibration resistant design,stable long-term operation in process plant cabinet.

Diagnostic

Check PWR and communication LED;communication failure:verify field loop wiring,loop resistance and HART device address;data abnormal:check tag mapping,fail-safe and protocol selection configuration.

Product Brief

PLX51-HART-4O is ProSoft PLX51 series four channel HART output module.

It converts Ethernet host commands into 4-20mA and HART digital signals to control HART valve positioners,widely used in process automation HART control loop integration and system renovation.
