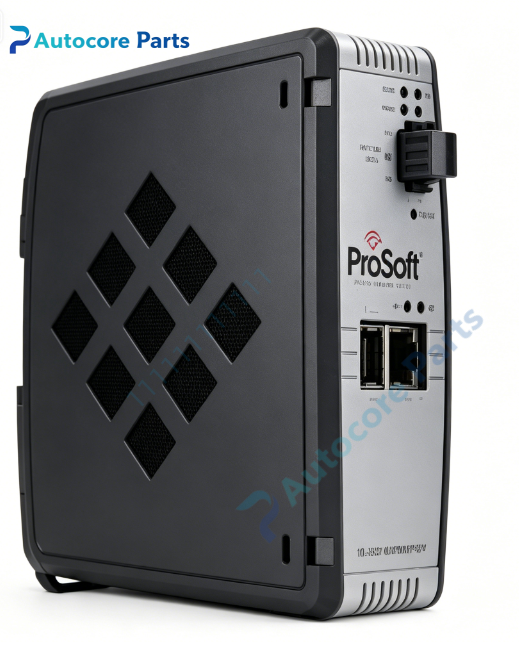

ProSoft PLX32-EIP-PND EtherNet/IP to PROFINET Gateway

Technical Specifications

Model:PLX32-EIP-PND

Brand:ProSoft

Product type:EtherNet/IP to PROFINET IO Device Standalone Dual Ethernet Communication Gateway

Power supply:10~36VDC,nominal 24VDC

Current consumption:300mA@24VDC,max 610mA

EtherNet/IP:Adapter mode,8 Class1 I/O connections,5 Class3 server connections

PROFINET:Class A IO Device,RT real-time communication,max 1440 bytes input /1440 bytes output

Ethernet interface:210/100Mbps RJ45,1500Vrms isolation,two independent subnets

Weight:0.44kg

Operating temperature:-25℃ ~ +70℃

Storage temperature:-40℃ ~ +80℃

Relative humidity:5%~95%,non-condensing

Dimension:136.7mm50.5mm*111.3mm

Certification:CE,UL,Class I Division2,PROFINET v2 certified,ODVA approved

System compatibility

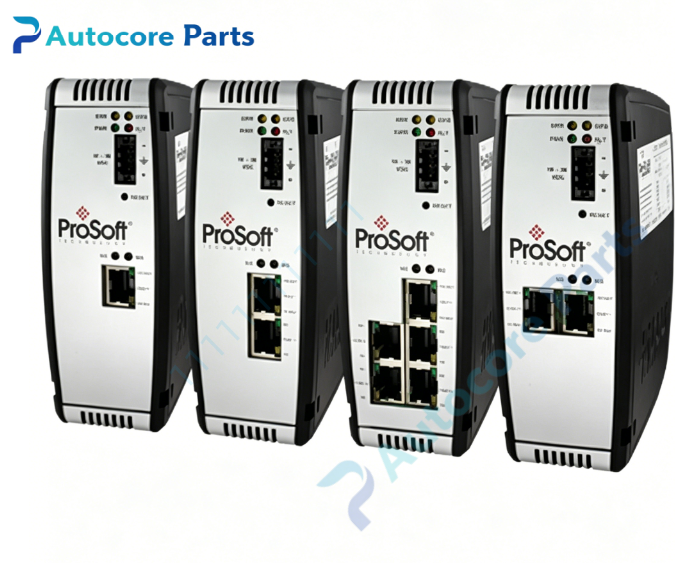

PLX32-EIP-PND belongs to ProSoft PLX32 series standalone protocol gateway.

Act as EtherNet/IP adapter for Rockwell ControlLogix,CompactLogix PAC.

On PROFINET side,it works as PROFINET IO Device for Siemens PROFINET controllers.

Compatible with Siemens S7-1200,S7-1500,S7-300 PN PLC.

Suitable for automotive production line,packaging,water treatment,petrochemical cross-brand PLC network integration renovation and spare replacement.

Function

Bidirectional real-time protocol conversion between EtherNet/IP CIP and PROFINET RT.

Dual independent Ethernet ports,EtherNet/IP and PROFINET run on separated subnets,physically isolate two control networks.

Support cyclic real-time I/O data exchange and acyclic explicit message communication.

Embedded EDS and AOP add-on profile for Rockwell Studio5000;GSDML file for Siemens TIA Portal.

SD card slot for configuration backup and quick module replacement.

ProSoft Configuration Builder(PCB)software for I/O mapping,online diagnosis and firmware upgrade.

Flexible I/O data mapping,freely configure input and output data length.

Installation

Mount gateway on DIN rail,connect 24VDC power supply.

Connect one RJ45 port to EtherNet/IP control network,another port to PROFINET network.

Import EDS/AOP into Rockwell Studio5000,import GSDML into Siemens TIA Portal.

Set IP address,PROFINET device name and configure I/O data mapping via PCB software.

Check LED indicators after power-on.

Interface

2*10/100Mbps Ethernet RJ45,power terminal,SD card slot,LED indicators:PWR,ERR,CFG,MS,NS.

Feature

Compact DIN rail industrial gateway,wide operating temperature range.

Dual isolated ethernet ports,separate two control networks without subnet routing setup.

PROFINET Class A certified,stable real-time cyclic I/O transmission.

Ready GSDML and EDS/AOP files,simplify multi-brand PLC engineering configuration.

SD card stores full configuration,fast on-site replacement without re-programming.

Built-in dual protocol communication diagnostic function,view link status and error codes remotely.

Shock and vibration resistant design,stable operation in factory control cabinet.

Diagnostic

Check PWR and network LED;communication failure:verify IP subnet and PROFINET device name;data abnormal:check I/O mapping and PLC project download status.

Product Brief

PLX32-EIP-PND is ProSoft PLX32 series dual-port EtherNet/IP to PROFINET IO device protocol gateway.

It bridges Rockwell EtherNet/IP and Siemens PROFINET control systems,realizing real-time I/O data exchange,widely used in multi-brand automation system integration transformation.
