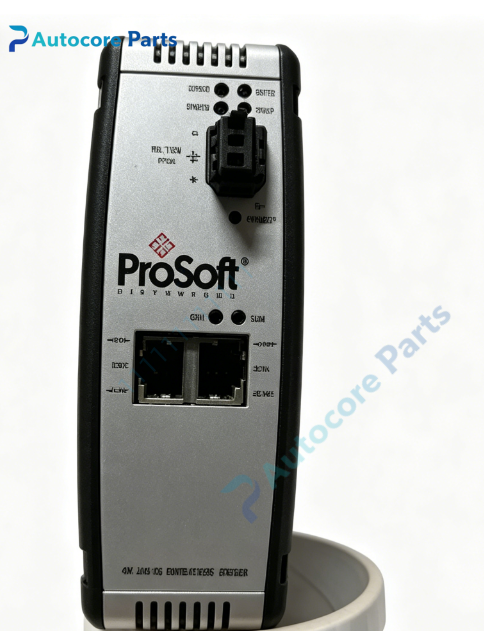

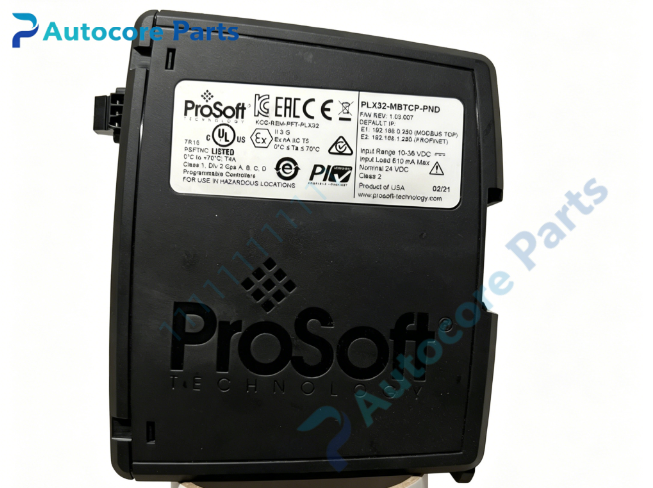

ProSoft PLX32-MBTCP-PND Modbus TCP to PROFINET Gateway

Technical Specifications

Model:PLX32-MBTCP-PND

Brand:ProSoft

Product type:Modbus TCP to PROFINET IO Device Standalone Dual Ethernet Communication Gateway

Power supply:10~36VDC,nominal 24VDC

Current consumption:300mA@24VDC,max 610mA

Modbus TCP:multi client and multi server simultaneously,support standard Modbus function codes

PROFINET:Class A IO Device,RT real-time communication,max 1440 bytes input /1440 bytes output

Ethernet interface:210/100Mbps RJ45,1500Vrms isolation,two independent subnets

Max data register:up to 10000 16-bit registers

Weight:0.44kg

Operating temperature:-25℃ ~ +70℃

Storage temperature:-40℃ ~ +80℃

Relative humidity:5%~95%,non-condensing

Dimension:136.7mm50.5mm*111.3mm

Certification:CE,UL,Class I Division2,PROFINET v2 certified

System compatibility

PLX32-MBTCP-PND belongs to ProSoft PLX32 series standalone protocol gateway.

On PROFINET side,it works as PROFINET IO Device for Siemens PROFINET controllers.

Realize bidirectional data interconnection between Siemens PROFINET PLC and Modbus TCP field instruments.

Compatible with Siemens S7-1200,S7-1500,S7-300 PN PLC,Modbus TCP flow meter,power meter,temperature transmitter.

Suitable for power plant,petrochemical,water treatment,automation production line cross-protocol network integration renovation and spare replacement.

Function

Bidirectional real-time protocol conversion between Modbus TCP and PROFINET RT.

Dual independent Ethernet ports,Modbus TCP and PROFINET run on separated subnets,physically isolate two networks.

Modbus TCP supports multiple client and server connections at the same time for high throughput.

GSDML file provided for quick integration in Siemens TIA Portal.

SD card slot for configuration backup and quick module replacement.

ProSoft Configuration Builder(PCB)software for register mapping,online diagnosis and firmware upgrade.

Flexible data mapping between PROFINET I/O area and Modbus registers,support large volume register data exchange.

Installation

Mount gateway on DIN rail,connect 24VDC power supply.

Connect one RJ45 port to PROFINET control network,another port to Modbus TCP field network.

Import GSDML file into TIA Portal,configure PROFINET device name and I/O mapping.

Set IP address and Modbus polling commands via PCB software.

Check LED indicators after power-on.

Interface

2*10/100Mbps Ethernet RJ45,power terminal,SD card slot,LED indicators:PWR,ERR,CFG,MS,NS.

Feature

Compact DIN rail industrial gateway,wide operating temperature range.

Dual isolated ethernet ports,separate control network and field network without routing configuration.

PROFINET Class A certified,stable real-time cyclic I/O transmission.

Supports up to 10000 16-bit registers for large data transmission.

SD card stores full configuration,fast on-site replacement without re-programming.

Built-in dual protocol communication diagnostic function,remotely check link status and error codes.

Shock and vibration resistant design,stable operation in factory control cabinet.

Diagnostic

Check PWR and network LED;communication failure:verify IP subnet and PROFINET device name;data abnormal:check Modbus polling command and register mapping configuration.

Product Brief

PLX32-MBTCP-PND is ProSoft PLX32 series dual-port Modbus TCP to PROFINET IO device protocol gateway.

It connects Siemens PROFINET controllers and Modbus TCP field instruments,widely used in industrial cross-protocol system integration transformation.
