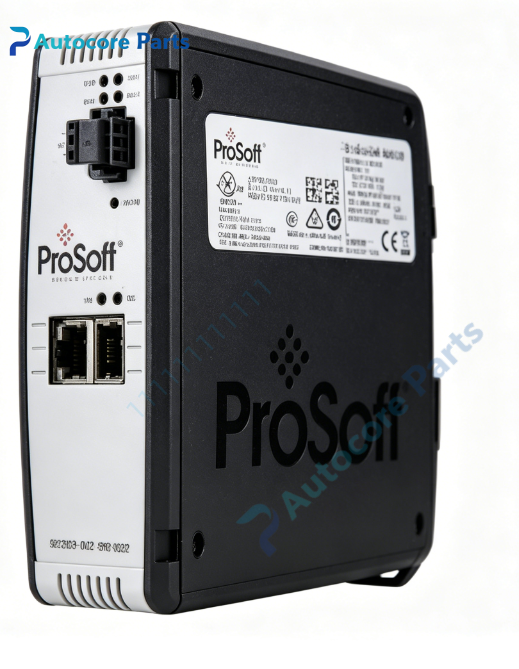

ProSoft PLX32-EIP-MBTCP-UA EtherNet/IP to Modbus TCP to OPC UA Server Gateway

Technical Specifications

Model:PLX32-EIP-MBTCP-UA

Brand:ProSoft

Product type:EtherNet/IP to Modbus TCP with Embedded OPC UA Server Standalone Gateway

Power supply:10~36VDC,nominal 24VDC

Current consumption:300mA@24VDC,max 610mA

EtherNet/IP:Adapter mode,8 Class1 I/O connections,max 248 bytes input /248 bytes output

Modbus TCP:10 clients,5 servers,standard Modbus function codes

OPC UA Server:support 10 concurrent OPC UA sessions

Ethernet interface:210/100Mbps RJ45,1500Vrms isolation,two independent subnets

Weight:0.44kg

Operating temperature:-25℃ ~ +70℃

Storage temperature:-40℃ ~ +80℃

Relative humidity:5%~95%,non-condensing

Dimension:136.7mm50.5mm*111.3mm

Certification:CE,UL,Class I Division2

System compatibility

PLX32-EIP-MBTCP-UA belongs to ProSoft PLX32 series standalone protocol gateway.

Act as EtherNet/IP adapter for Rockwell ControlLogix,CompactLogix PAC.

Realize bidirectional data exchange between Rockwell EtherNet/IP controllers and Modbus TCP field devices.

Built-in OPC UA server,share EtherNet/IP and Modbus TCP data to MES,SCADA,ERP OPC UA clients.

Compatible with Modbus TCP flow meter,power meter,temperature transmitter and industrial data acquisition system.

Suitable for power plant,petrochemical,water treatment,automotive production line multi-protocol network integration and upper system data collection renovation and spare replacement.

Function

Tri-protocol gateway integrating EtherNet/IP,Modbus TCP and OPC UA server.

Dual independent Ethernet ports,EtherNet/IP and Modbus TCP run on separated subnets.

Modbus TCP multi-client and multi-server work simultaneously,up to 160 configurable polling commands.

Embedded OPC UA server,securely provide controller and field instrument data for upper-level software.

Embedded EDS and AOP add-on profile,simple integration with Rockwell Studio5000.

SD card slot for configuration backup and quick module replacement.

ProSoft Configuration Builder(PCB)software for data mapping,online diagnosis and firmware upgrade.

Flexible internal database mapping between EtherNet/IP tags,Modbus registers and OPC UA nodes.

Installation

Mount gateway on DIN rail,connect 24VDC power supply.

Connect one RJ45 port to EtherNet/IP control network,another port to Modbus TCP field network.

Import EDS/AOP file into Rockwell Studio5000.

Set IP address,Modbus polling and OPC UA node mapping via PCB software.

Connect OPC UA client to gateway built-in OPC UA server.

Check LED indicators after power-on.

Interface

2*10/100Mbps Ethernet RJ45,power terminal,SD card slot,LED indicators:PWR,ERR,CFG,MS,NS,FLT.

Feature

Compact DIN rail industrial gateway,wide operating temperature range.

Dual isolated ethernet ports,physically separate control network and field network.

Embedded OPC UA server,no extra industrial PC required for data upload to MES system.

Support up to 10 concurrent OPC UA client sessions for multi-system data access.

Embedded AOP profile,reduce Rockwell PLC project configuration workload.

SD card stores full configuration,fast on-site replacement without re-programming.

Built-in multi-protocol communication diagnostic function,view link status and error codes.

Shock and vibration resistant design,stable operation in factory control cabinet.

Diagnostic

Check PWR and network LED;communication failure:verify IP subnet and firewall setting;data abnormal:check tag,Modbus register and OPC UA node mapping configuration.

Product Brief

PLX32-EIP-MBTCP-UA is ProSoft PLX32 series dual-port triple protocol gateway with embedded OPC UA server.

It realizes data interconnection among Rockwell EtherNet/IP PAC,Modbus TCP field instruments and upper OPC UA clients,widely used in industrial control system and MES data acquisition transformation.
