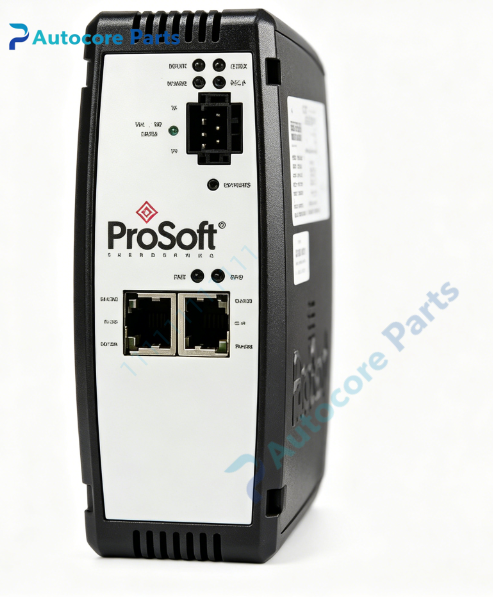

ProSoft PLX32-EIP-MBTCP EtherNet/IP to Modbus TCP Gateway

Technical Specifications

Model:PLX32-EIP-MBTCP

Brand:ProSoft

Product type:EtherNet/IP to Modbus TCP Standalone Dual Ethernet Communication Gateway

Power supply:10~36VDC,nominal 24VDC

Current consumption:300mA@24VDC,max 610mA

EtherNet/IP:Adapter mode,multiple Class1 I/O connections

Modbus TCP:multi client and multi server simultaneously,support standard Modbus function codes

Ethernet interface:210/100Mbps RJ45,1500Vrms isolation,two independent subnets

Weight:0.44kg

Operating temperature:-25℃ ~ +70℃

Storage temperature:-40℃ ~ +80℃

Relative humidity:5%~95%,non-condensing

Dimension:136.7mm50.5mm*111.3mm

Certification:CE,UL,Class I Division2

System compatibility

PLX32-EIP-MBTCP belongs to ProSoft PLX32 series standalone protocol gateway.

Act as EtherNet/IP adapter for Rockwell ControlLogix,CompactLogix PAC.

Realize data interconnection between Rockwell EtherNet/IP controllers and Modbus TCP instruments.

Compatible with Modbus TCP flow meter,power meter,thermal transmitter,Schneider PAC and SCADA system.

Suitable for power plant,petrochemical,water treatment,automotive production line cross-protocol network integration renovation and spare replacement.

Function

Bidirectional high-speed protocol conversion between EtherNet/IP CIP and Modbus TCP.

Dual independent Ethernet ports,EtherNet/IP and Modbus TCP run on separated subnets.

Support multiple Modbus TCP client and server connections at the same time.

Embedded EDS and AOP add-on profile,simple integration with Rockwell Studio5000.

SD card slot for configuration backup and quick module replacement.

ProSoft Configuration Builder(PCB)software for data mapping,online diagnosis and firmware upgrade.

Flexible register mapping between EtherNet/IP tag and Modbus TCP holding register.

Installation

Mount gateway on DIN rail,connect 24VDC power supply.

Connect one RJ45 port to EtherNet/IP control network,another port to Modbus TCP field network.

Import EDS/AOP file into Rockwell Studio5000.

Set IP address and configure data mapping via PCB software.

Check LED indicators after power-on.

Interface

2*10/100Mbps Ethernet RJ45,power terminal,SD card slot,LED indicators:PWR,ERR,CFG,MS,NS.

Feature

Compact DIN rail industrial gateway,wide operating temperature range.

Dual isolated ethernet ports,physically separate two networks without modifying device IP.

Multi-client & multi-server Modbus TCP driver for faster data transmission.

Embedded AOP profile,reduce project configuration workload.

SD card stores full configuration,fast on-site replacement without re-programming.

Built-in communication diagnostic function to view link status and error codes.

Shock and vibration resistant design,stable operation in factory control cabinet.

Diagnostic

Check PWR and network LED;communication failure:verify IP subnet and firewall setting;data abnormal:check tag and Modbus register mapping configuration.

Product Brief

PLX32-EIP-MBTCP is ProSoft PLX32 series dual-port EtherNet/IP to Modbus TCP protocol gateway.

It realizes high-speed bidirectional data exchange between Rockwell EtherNet/IP controllers and Modbus TCP field devices,widely used in industrial cross-protocol system integration transformation.
