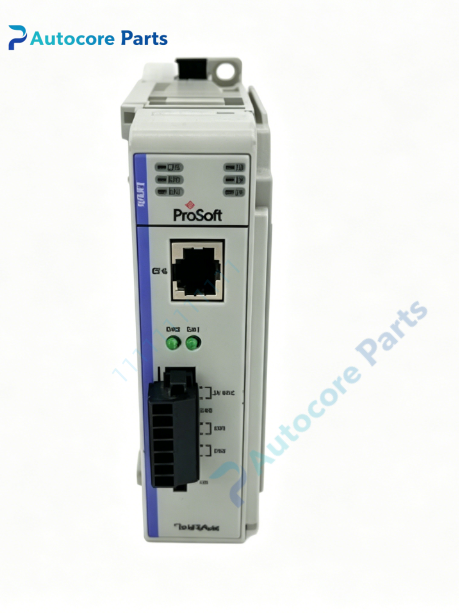

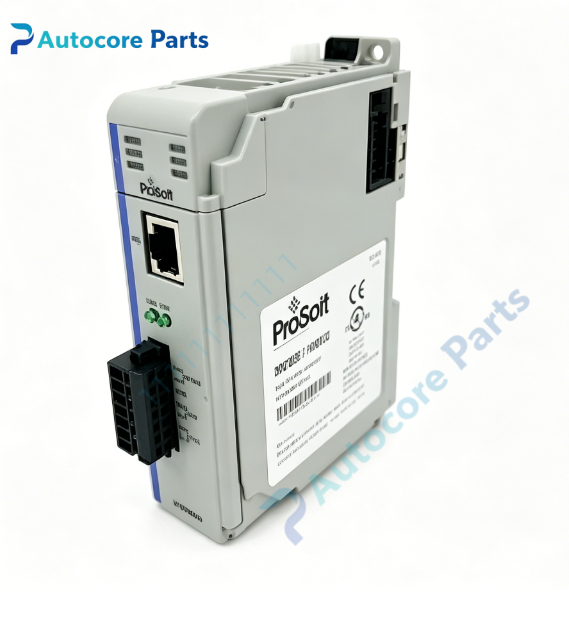

ProSoft MVI69-HART CLX HART Module

Technical Specifications

Model:MVI69-HART

Brand:ProSoft

Product type:CompactLogix In-Chassis HART Multi-drop Master Communication Module

Power supply:Supplied via 1769 backplane,800mA @5VDC

Communication:HART protocol,dual HART channels,each channel supports up to 15 HART slave instruments

Weight:0.29kg

Operating temperature:0℃ ~ +60℃

Dimension:Standard 1769 single slot module,120mm87mm32mm

Certification:CE,UL

System compatibility

MVI69-HART belongs to ProSoft MVI69 series module.

It plugs directly into Rockwell CompactLogix and MicroLogix 1500 LRP rack,compatible with 1769 backplane.

It enables CompactLogix to communicate with HART field transmitters including pressure,temperature and flow meters.

Suitable for chemical,refinery,water treatment process control system renovation and spare replacement.

Function

It works as HART multi-drop master,two independent HART channels.

Each channel can connect maximum 15 HART multi-drop slave devices.

Supports HART universal,common practice and device specific commands.

Supports reading process variable,device tag,diagnostic information and write configuration parameters.

Up to 100 commands per channel,configurable polling interval.

Internal register database up to 5000 registers,data mapped to CompactLogix controller memory via backplane.

Installation

Insert module into 1769 chassis backplane,wire HART field instruments to HART terminal port.

Configure HART device list and polling command in ProSoft Configuration Builder.

Import AOI into Studio5000,download project through RSLinx,check LED indicators after power-up.

Interface

Dual HART terminal ports,1*RJ45 CFG RS232 configuration port,1769 backplane connector,module status,application and HART channel status LED indicators.

Feature

Single slot 1769 chassis design,isolated HART channels.

Supports multi-drop HART network,realizes process data acquisition and instrument remote calibration.

Web diagnostic interface,monitor HART device status and communication statistics.

Add-on profile and AOI instruction simplify program development,stable operation in process industrial cabinet environment.

Diagnostic

Check module run and fault LED;communication failure:verify HART wiring,loop resistance and device address;data abnormal:check HART polling command list and register mapping table.

Product Brief

MVI69-HART is ProSoft MVI69 series HART multi-drop master communication module for CompactLogix rack.

It acts as HART gateway to realize bidirectional data exchange between CompactLogix and HART smart field transmitters,for process industrial automation system maintenance and transformation.
