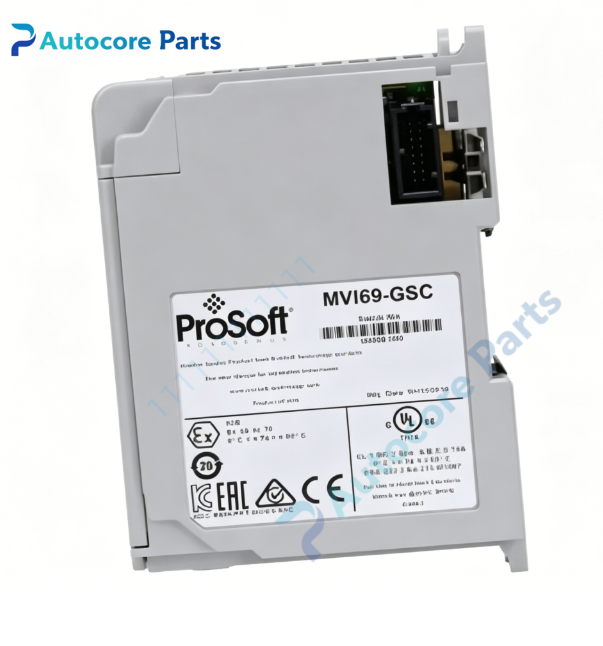

ProSoft MVI69-GSC CLX GSC Module

Technical Specifications

Model:MVI69-GSC

Brand:ProSoft

Product type:CompactLogix In-Chassis Generic ASCII Serial Communication Module

Power supply:Supplied via 1769 backplane,800mA @5VDC

Communication:Generic ASCII,dual serial ports,RS232/RS422/RS485 jumper selectable

Weight:0.29kg

Operating temperature:0℃ ~ +60℃

Dimension:Standard 1769 single slot module,120mm87mm32mm

Certification:CE,UL

System compatibility

MVI69-GSC belongs to ProSoft MVI69 series module.

It plugs directly into Rockwell CompactLogix and MicroLogix 1500 LRP rack,compatible with 1769 backplane.

It enables CompactLogix to communicate with serial ASCII instruments,modems,radio modules and custom serial devices.

Suitable for non-standard serial ASCII equipment connection and automation system renovation and spare replacement.

Function

Dual independent serial ports,each port can be separately configured.

Supports stream mode,termination character,message timeout and inter-character delay configuration.

Baud rate ranges from 110 to 115200,configurable data bits,stop bits,parity.

Supports hardware handshake RTS/CTS,DTR/DSR and software XON/XOFF handshake.

Max single message length up to 4096 bytes,flexible string parsing.

Data mapped to CompactLogix controller memory via backplane,user definable register database.

Installation

Insert module into 1769 chassis backplane,wire serial cable for P1/P2 port.

Set RS232/RS422/RS485 interface mode via jumpers,configure ASCII framing parameters in ProSoft Configuration Builder.

Import AOI into Studio5000,download project through RSLinx,check LED indicators after power-up.

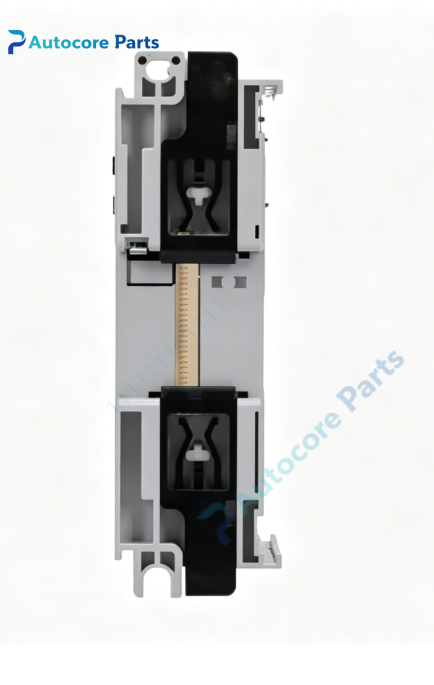

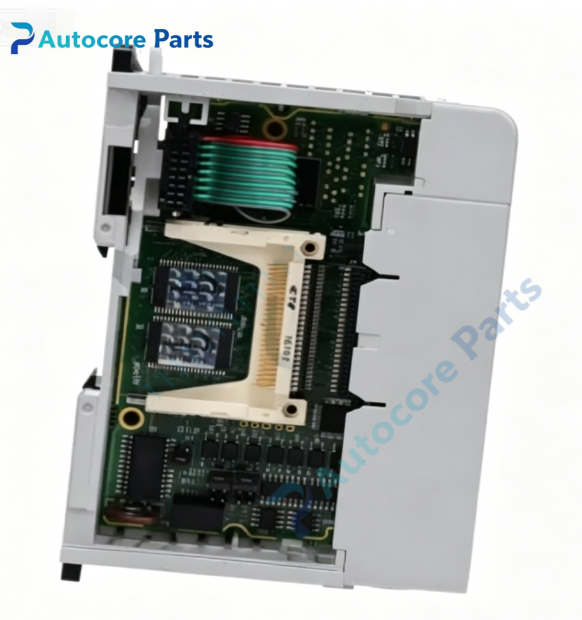

Interface

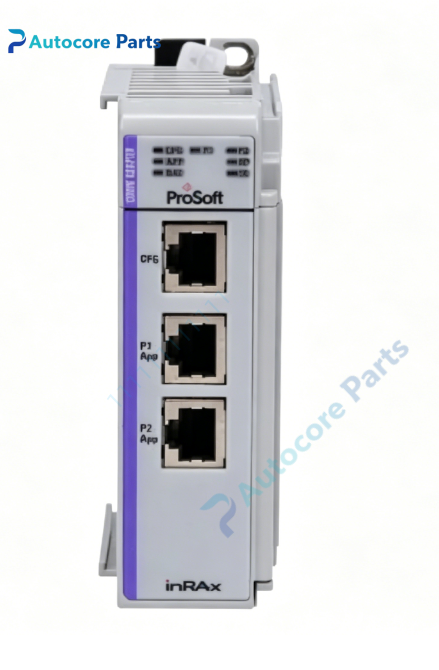

2RJ45 serial application ports,1RJ45 CFG RS232 configuration port,1769 backplane connector,module status,serial activity LED indicators.

Feature

Single slot 1769 chassis design,500V optical isolation between backplane and serial ports.

Supports modem and radio multi-drop connection.

Web diagnostic interface,monitor port status and transmit/receive data statistics.

Configurable RTS timing and response delay,stable operation in industrial cabinet environment.

Diagnostic

Check module run and fault LED;communication failure:verify serial wiring,terminal resistance and baud rate;data abnormal:check ASCII termination character and timeout parameter.

Product Brief

MVI69-GSC is ProSoft MVI69 series generic ASCII serial communication module for CompactLogix rack.

It acts as serial ASCII gateway to realize bidirectional string data exchange between CompactLogix and serial ASCII field devices,for industrial automation system maintenance and transformation.
