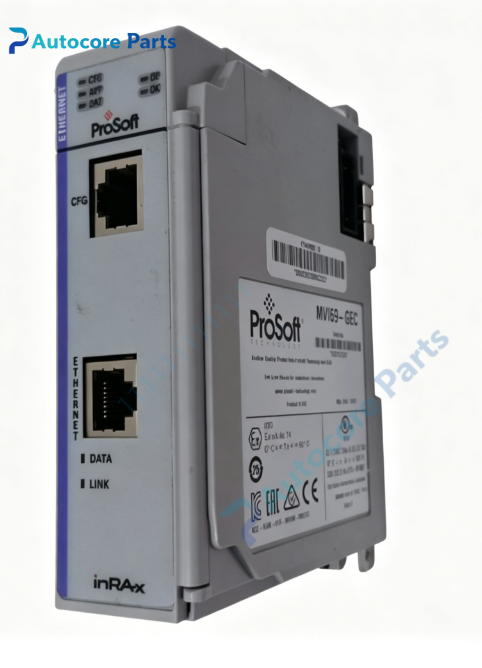

ProSoft MVI69-GEC CLX GEC Module

Technical Specifications

Model:MVI69-GEC

Brand:ProSoft

Product type:CompactLogix In-Chassis Generic ASCII Ethernet Communication Module

Power supply:Supplied via 1769 backplane,800mA @5.1VDC

Communication:Generic ASCII over TCP/IP,10/100Mbps Ethernet

Weight:0.29kg

Operating temperature:0℃ ~ +60℃

Dimension:Standard 1769 single slot module,120mm87mm32mm

Certification:CE,UL

System compatibility

MVI69-GEC belongs to ProSoft MVI69 series module.

It plugs directly into Rockwell CompactLogix and MicroLogix 1500 LRP rack,compatible with 1769 backplane.

It enables CompactLogix to communicate with Ethernet ASCII instruments,serial device servers and custom TCP equipment.

Suitable for non-standard TCP ASCII device connection and automation system renovation and spare replacement.

Function

It supports generic ASCII data transmission over TCP/IP,supports multiple client and server connections.

Configurable port number,connection timeout and close mode.

Single ethernet packet max 2048 bytes,total buffer up to 4096 bytes.

Supports custom string parsing,delimiter-based data framing.

Data mapped to CompactLogix controller memory via backplane,supports AOI add-on instruction.

Installation

Insert module into 1769 chassis backplane,connect ethernet cable.

Set IP address and TCP client/server configuration in ProSoft Configuration Builder.

Import AOI into Studio5000,download project through RSLinx,check LED indicators after power-up.

Interface

110/100Mbps Ethernet RJ45 port,1RJ45 CFG RS232 configuration port,1769 backplane connector,module status,network activity LED indicators.

Feature

Single slot 1769 chassis design,auto crossover ethernet detection.

Web diagnostic interface,monitor connection status and data statistics.

Flexible framing setting for different ASCII devices,stable operation in industrial cabinet environment.

Diagnostic

Check module run and fault LED;communication failure:verify ethernet cable,IP address and port configuration;data abnormal:check ASCII delimiter and buffer parameter.

Product Brief

MVI69-GEC is ProSoft MVI69 series generic ASCII ethernet communication module for CompactLogix rack.

It acts as TCP/IP ASCII gateway to realize bidirectional string data exchange between CompactLogix and ethernet ASCII field devices,for industrial automation system maintenance and transformation.
