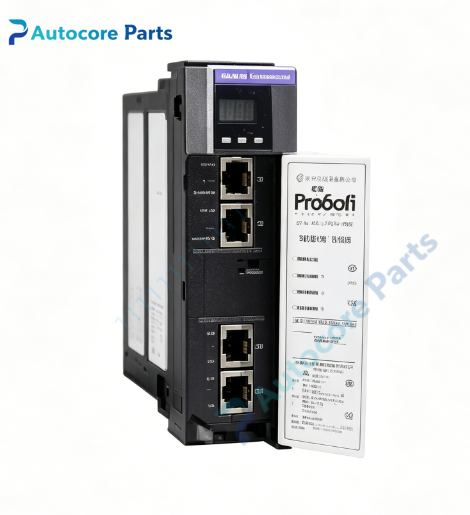

ProSoft MVI56E-LDM CLX LDM Module

Technical Specifications

Model:MVI56E-LDM

Brand:ProSoft

Product type:ControlLogix In-Chassis Linux Development Module

Power supply:Supplied via 1756 backplane,800mA @5.1VDC,3mA @24VDC

Communication:Dual 10/100Mbps Ethernet,2 isolated serial ports RS232/RS422/RS485

Weight:0.29kg

Operating temperature:0℃ ~ +60℃

Dimension:Standard 1756 single slot module,120mm87mm32mm

Certification:CE,UL

System compatibility

MVI56E-LDM belongs to ProSoft MVI56E enhanced series module.It plugs directly into Rockwell ControlLogix 1756 rack,compatible with ControlLogix PAC controllers,suitable for custom industrial algorithm,IIoT gateway and special protocol driver development,industrial system renovation and spare replacement.

Function

It runs embedded Linux system,equipped with 400MHz ARM9 processor,64MB SDRAM and 256MB NAND flash.It provides backplane API library for data exchange with ControlLogix controller,supports MQTT,Sparkplug B,ThingWorx and custom program deployment.Dual Ethernet and dual isolated serial ports connect multiple field devices,supports CF card for application program storage.

Installation

Insert module into ControlLogix chassis backplane,wire Ethernet and serial cables,develop and compile Linux application via VM toolchain,store program to CF card,import AOI into Studio5000,download project through RSLinx,check LED indicators after power-up.

Interface

210/100Mbps Ethernet RJ45 ports,2RJ45 serial application ports,CF card slot,1756 backplane connector,4-character scrolling alpha-numeric display,module status and communication LED indicators.

Feature

Single slot 1756 chassis design,fanless industrial hardware,built-in backplane communication API,sample source code for IIoT application,web diagnostic interface,CIPconnect remote diagnostic support,conformal coating optional for harsh environment.

Diagnostic

Check module run and fault LED;communication failure:verify Ethernet/serial wiring,IP address and baud rate;data abnormal:check Linux application log and backplane data mapping.

Product Brief

MVI56E-LDM is ProSoft MVI56E series Linux development edge module for ControlLogix rack.It supports custom Linux program development to realize edge calculation,IIoT access and special device driver,for industrial automation system maintenance and transformation.

Disclaimer

Product parameters are for reference only and shall not be used as pricing basis. Goods are in short supply and will be powered on for inspection before shipment. Overseas delivery lead time is 3-7 working days. The product is only used for equipment maintenance and transformation.
