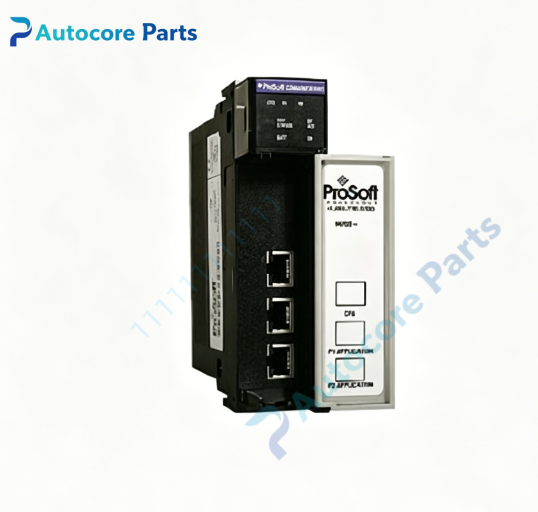

ProSoft MVI56E-GSC/GSCXT CLX GSC Module

Technical Specifications

Model:MVI56E-GSC/GSCXT

Brand:ProSoft

Product type:ControlLogix In-Chassis Enhanced Generic ASCII Communication Module

Power supply:Supplied via 1756 backplane,800mA @5.1VDC,3mA @24VDC

Communication:Generic ASCII,2 serial ports,RS232/RS422/RS485,10/100Mbps Ethernet

Weight:0.29kg

Operating temperature:0℃ ~ +60℃(GSC); -25℃ ~ +70℃(GSCXT)

Dimension:Standard 1756 single slot module,120mm87mm32mm

Certification:CE,UL

System compatibility

MVI56E-GSC/GSCXT belongs to ProSoft MVI56E enhanced series module.It plugs directly into Rockwell ControlLogix 1756 rack,GSCXT version supports Logix-XT extreme environment platform,compatible with ControlLogix PAC controllers,suitable for connecting various ASCII serial devices,industrial system renovation and spare replacement.

Function

It provides two independent configurable ASCII serial ports,each port supports send/receive up to 4096 bytes string data.It can connect barcode readers,weighing scales,printers and custom serial instruments.Data mapped to ControlLogix controller memory via backplane,supports up to 5000 16-bit user registers.GSCXT adopts conformal coating for harsh industrial environments.

Installation

Insert module into ControlLogix chassis backplane,set serial interface mode via jumpers,wire RS232/422/485 serial bus,configure serial parameters and data mapping via ProSoft Configuration Builder,import AOI into Studio5000,download project through RSLinx,check LED indicators after power-up.

Interface

110/100Mbps Ethernet RJ45 port,2RJ45 serial application ports,1756 backplane connector,alpha-numeric display,module status,network and communication LED indicators.

Feature

Single slot 1756 chassis design,dual isolated serial ports,web diagnostic interface,CIPconnect remote diagnostic support,backward compatible with old MVI56-GSC,GSCXT with conformal coating for wide temperature environment,stable operation in industrial cabinet environment.

Diagnostic

Check module run and fault LED;communication failure:verify serial wiring,terminal resistance,baud rate and parity;data abnormal:check ASCII frame configuration and register mapping table.

Product Brief

MVI56E-GSC/GSCXT is ProSoft MVI56E series generic ASCII serial communication module for ControlLogix rack.It helps ControlLogix PAC to communicate with third-party ASCII serial devices,GSCXT version for extreme temperature industrial applications,for industrial automation system maintenance and transformation.
