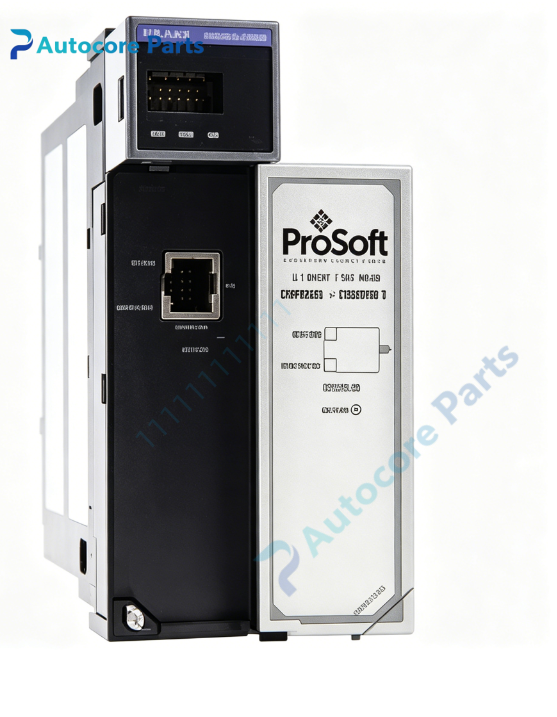

ProSoft MVI56E-DNPNET CLX DNPNET Module

Technical Specifications

Model:MVI56E-DNPNET

Brand:ProSoft

Product type:ControlLogix In-Chassis DNP3 Ethernet Communication Module

Power supply:Supplied via 1756 backplane,800mA @5.1VDC,3mA @24VDC

Communication:DNP3.0,10/100Mbps Ethernet

Weight:0.29kg

Operating temperature:0℃ ~ +60℃

Dimension:Standard 1756 single slot module,120mm87mm32mm

Certification:CE,UL

System compatibility

MVI56E-DNPNET belongs to ProSoft MVI56E enhanced series module.It plugs directly into Rockwell ControlLogix 1756 rack,compatible with ControlLogix PAC controllers,suitable for power,water and oil gas industry SCADA system renovation and spare replacement.

Function

It supports DNP3 client and server simultaneously. As DNP3 client,it reads and writes data from remote RTU and IED devices.As DNP3 server,it provides data to upper SCADA host.Supports timestamped event recording and exception reporting,up to 20000 configurable data points.Data is mapped to ControlLogix controller memory via backplane.

Installation

Insert module into ControlLogix chassis backplane,connect Ethernet cable,set IP address and configure DNP3 point list via ProSoft Configuration Builder,import AOI into Studio5000,download project through RSLinx,check LED indicators after power-up.

Interface

1*10/100Mbps Ethernet RJ45 port,1756 backplane connector,alpha-numeric display,module status,network and communication LED indicators.

Feature

Single slot 1756 chassis design,supports DNP3 secure authentication,event data buffering when network interrupted,CIPconnect for remote diagnostics,web diagnostic interface,stable operation in power cabinet environment.

Diagnostic

Check module run and fault LED;communication failure:verify Ethernet cable,IP address and network route;data abnormal:check DNP3 point configuration and data mapping table.

Product Brief

MVI56E-DNPNET is ProSoft MVI56E series DNP3 ethernet communication module for ControlLogix rack.It connects ControlLogix PAC with DNP3 SCADA,RTU and IED equipment,for power industrial automation system maintenance and transformation.
