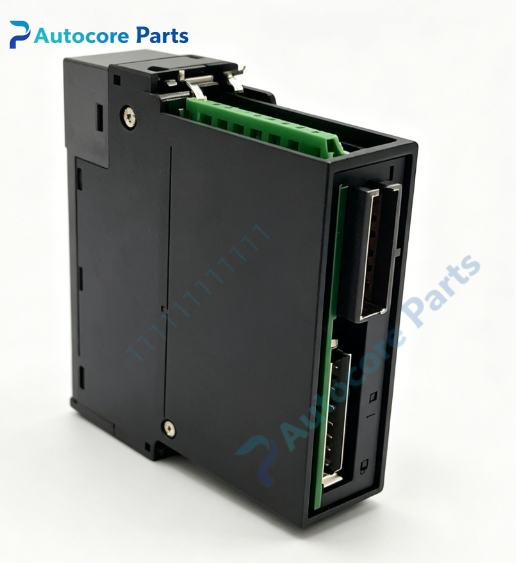

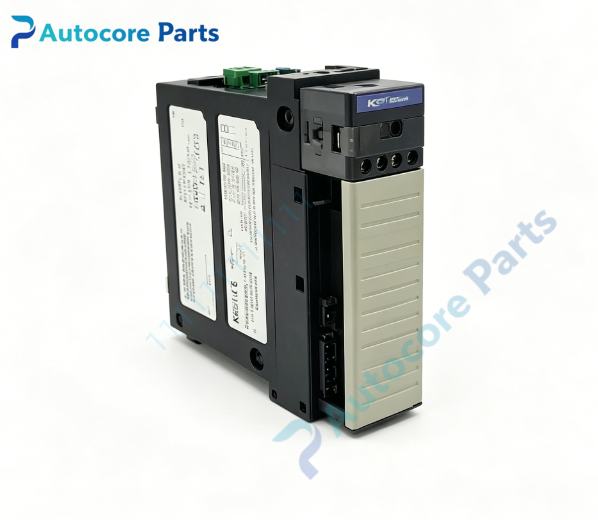

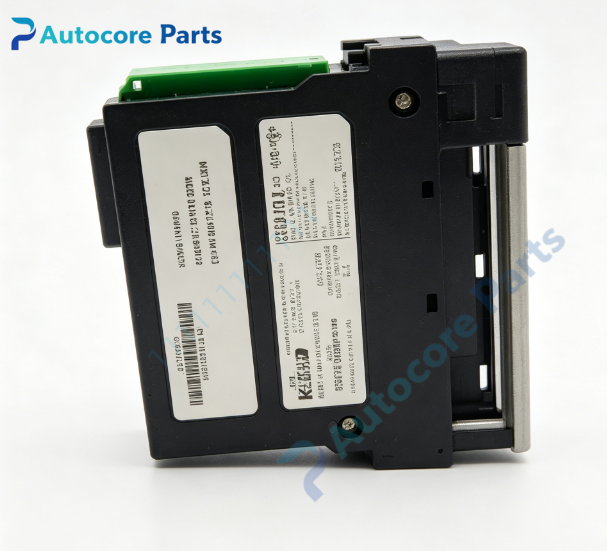

ProSoft MVI56E-MCM/MCMXT CLX MCM Module

Technical Specifications

Model:MVI56E-MCM/MCMXT

Brand:ProSoft

Product type:ControlLogix In-Chassis Enhanced Modbus Communication Module

Power supply:Supplied via 1756 backplane,800mA @5.1VDC,3mA @24VDC

Communication:Modbus RTU / ASCII,2 serial ports,RS232/RS422/RS485,10/100Mbps Ethernet

Weight:0.29kg

Operating temperature:0℃ ~ +60℃(MCM); -25℃ ~ +70℃(MCMXT)

Dimension:Standard 1756 single slot module,120mm87mm32mm

Certification:CE,UL

System compatibility

MVI56E-MCM/MCMXT belongs to ProSoft MVI56E enhanced series module.It plugs directly into Rockwell ControlLogix 1756 rack,MCMXT version supports Logix-XT extreme environment platform,compatible with ControlLogix PAC controllers.It is backward compatible with MVI56-MCM,suitable for connecting Modbus field instruments,legacy automation system renovation and spare replacement.

Function

Two independent serial ports can be separately configured as Modbus master or slave.It supports complete Modbus function codes,max 10000 user-defined 16-bit registers for data exchange.Data mapped to ControlLogix controller memory via backplane.MCMXT adopts conformal coating for protection against dust and moisture in harsh industrial sites.

Installation

Insert module into ControlLogix chassis backplane,set serial interface mode via jumpers,wire RS232/422/485 serial bus,configure port parameters and register mapping via ProSoft Configuration Builder,import AOI into Studio5000,download project through RSLinx,check LED indicators after power-up.

Interface

110/100Mbps Ethernet RJ45 port,2RJ45 serial application ports,1756 backplane connector,alpha-numeric display,module status,network and communication LED indicators.

Feature

Single slot 1756 chassis design,dual isolated serial ports,web diagnostic interface,CIPconnect remote diagnostic support,supports RIUP hot swap,MCMXT with conformal coating and wide temperature range,stable operation in industrial cabinet environment.

Diagnostic

Check module run and fault LED;communication failure:verify serial wiring,terminal resistance,station address and baud rate;data abnormal:check Modbus parameter configuration and register mapping table.

Product Brief

MVI56E-MCM/MCMXT is ProSoft MVI56E series enhanced Modbus serial communication module for ControlLogix rack.It realizes bidirectional Modbus RTU/ASCII communication between ControlLogix and third-party field devices,MCMXT for harsh and wide temperature industrial applications,for industrial automation system maintenance and transformation.

Disclaimer

Product parameters are for reference only and shall not be used as pricing basis. Goods are in short supply and will be powered on for inspection before shipment. Overseas delivery lead time is 3-7 working days. The product is only used for equipment maintenance and transformation.
