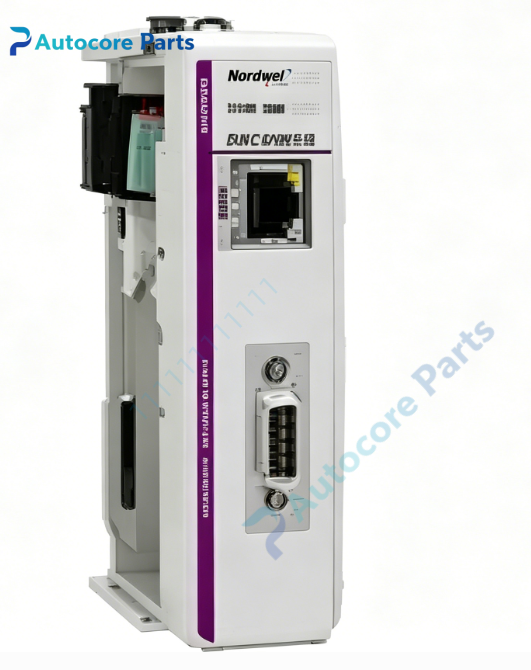

ProSoft ILX69-PBM CompactLogix PROFIBUS DP V1 Master In-Chassis Module

Technical Specifications

Model:ILX69-PBM

Brand:ProSoft

Product type:CompactLogix In-Chassis PROFIBUS Master Module

Power supply:Supplied via 1769 backplane,5V @570mA max

Communication:PROFIBUS DP V0/V1,DP baud rate up to 12Mbps

Weight:0.152kg

Operating temperature:0℃ ~ +60℃

Dimension:131.6mm92.1mm39.3mm

Certification:CE,UL

System compatibility

ILX69-PBM belongs to ProSoft 1769 series module.It plugs into Rockwell CompactLogix and MicroLogix 1769 chassis,enables Logix controller to act as PROFIBUS DP master,suitable for connecting PROFIBUS field slaves in factory automation system upgrade.

Function

It works as PROFIBUS DP V1 master,supports cyclic I/O data exchange and acyclic DPV1 messaging,Sync/Freeze bus functions,max supports 125 PROFIBUS slave devices,process data mapped to CompactLogix controller via backplane I/O image.

Installation

Insert module into 1769 CompactLogix chassis within 2 slots of power supply,wire PROFIBUS RS485 bus,configure network via ProSoft fdt Configuration Manager,download configuration and verify LED indicators after power-up.

Interface

PROFIBUS RS485 terminal port,1*10/100Mbps Ethernet RJ45 diagnostic port,SD card slot,1769 backplane connector,multi-color run and fault LED indicators.

Feature

Standard 1769 single slot design,galvanic isolated PROFIBUS interface,web page diagnostic,SD card for configuration backup,supports GSD file import,stable operation in industrial cabinet environment.

Diagnostic

Check module run and fault LED;communication failure:verify PROFIBUS bus cable,terminal resistor,slave address and baud rate;data abnormal:check GSD configuration and I/O mapping list.

Product Brief

ILX69-PBM is ProSoft 1769 in-chassis PROFIBUS DP V1 master module.It allows CompactLogix/MicroLogix PLC to communicate with PROFIBUS DP field devices,for industrial automation system maintenance and transformation.
