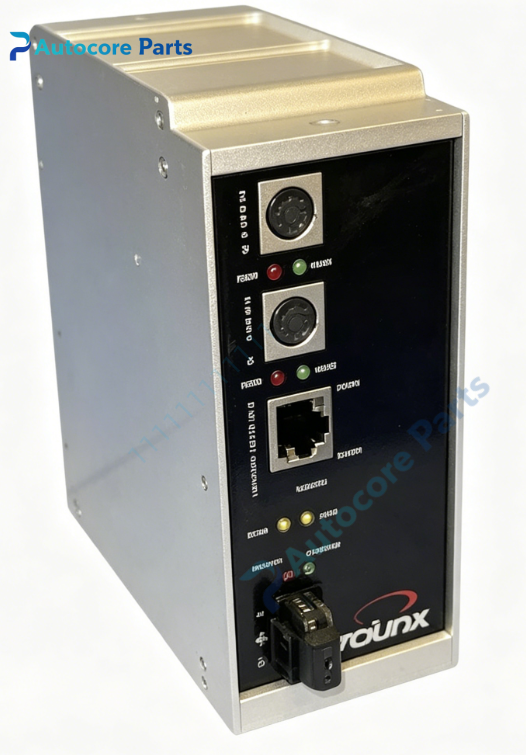

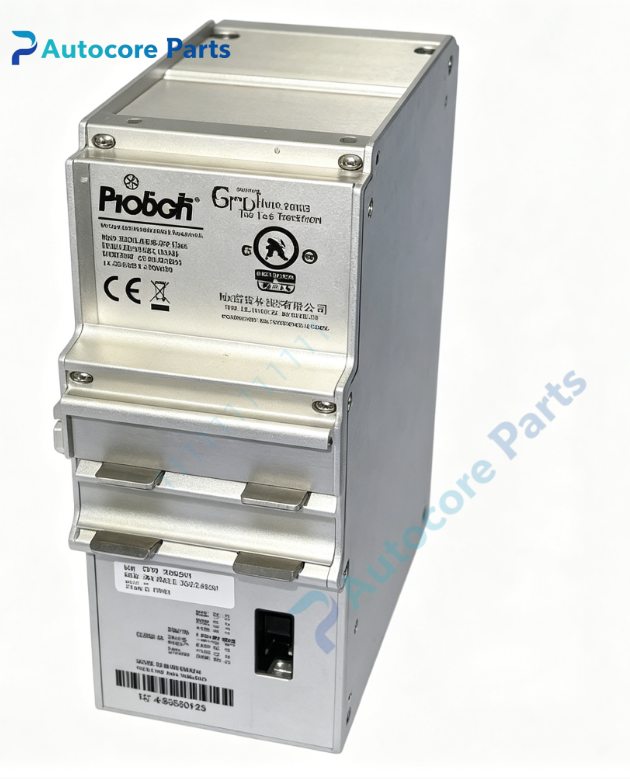

ProSoft 5201-MNET-ASCII Modbus TCP to ASCII Serial Gateway

Technical Specifications

Model:5201-MNET-ASCII

Brand:ProSoft

Product type:Protocol Communication Gateway

Power supply:10-36VDC

Communication:Modbus TCP Client/Server,ASCII serial(RS232/RS422/RS485)

Weight:0.26kg

Operating temperature:-40℃ ~ +70℃

Dimension:132mm115mm52mm

Certification:CE,UL

System compatibility

5201-MNET-ASCII belongs to ProLinx series DIN rail gateway.It connects Modbus TCP PLC system with serial ASCII devices such as weighing instruments,flow meters and barcode scanners,widely used for factory automation renovation and spare replacement.

Function

It serves as Modbus TCP client and server,realizes bidirectional string data transmission between Modbus TCP network and ASCII serial devices.Serial port can be configured as master or slave mode,flexible for different serial instruments.

Installation

DIN rail mounting,connect 24VDC power,wire Ethernet and serial cable,set serial parameters and data mapping via configuration software,check LED indicators.

Interface

1*Ethernet port,1 configurable serial terminal(RS232/422/485),power terminal,run and communication status LED indicators.

Feature

Compact DIN rail housing,single serial ASCII port,configurable baud rate and data bits,support custom string parsing,stable operation in industrial field.

Diagnostic

Check power and link LED;communication failure:check network cable,serial wiring,baud rate and parity;data abnormal:verify ASCII string trigger and mapping rules.

Product Brief

5201-MNET-ASCII is ProSoft ProLinx protocol gateway,bridge Modbus TCP network and ASCII serial devices,used for industrial instrument data acquisition and system maintenance.
