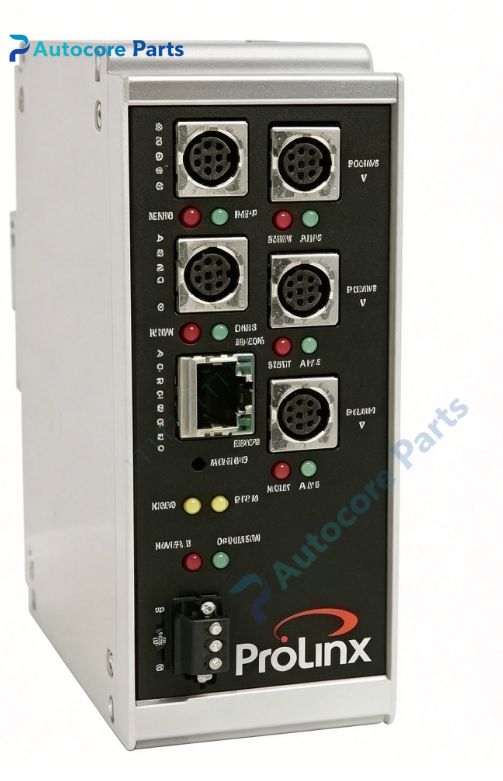

ProSoft 5202-DFNT-DFCM4 EtherNet/IP to DF1 4-Port Gateway

Technical Specifications

Model:5202-DFNT-DFCM4

Brand:ProSoft

Product type:Protocol Communication Gateway

Power supply:18-36VDC

Communication:EtherNet/IP Client/Server,DF1 Master/Slave,4 configurable serial ports(RS232/422/485)

Weight:0.42kg

Operating temperature:-40℃ ~ +70℃

Dimension:140mm90mm40mm

Certification:CE,UL

System compatibility

5202-DFNT-DFCM4 belongs to ProLinx series DIN rail gateway.It connects EtherNet/IP control network with legacy Rockwell DF1 serial PLC devices,suitable for multi-channel old automation system retrofit and spare replacement.

Function

It acts as EtherNet/IP client/server and DF1 master/slave,four independent serial ports can work separately,realizes bidirectional real-time data mapping between EtherNet/IP PLC and multiple DF1 serial controllers.

Installation

DIN rail mounting,connect 24VDC power,wire Ethernet and four serial cables,configure each serial port mode and data mapping via software,check LED indicators.

Interface

1*10/100Mbps Ethernet port,4 configurable DF1 serial terminals,power terminal,run and fault status LED indicators.

Feature

Compact DIN rail housing,4 independent DF1 serial channels,each port can be set master or slave,simultaneous multi-device communication,stable for industrial cabinet environment.

Diagnostic

Check power,link and fault LED;communication failure:verify network cable,serial wiring,baud rate and station address;data abnormal:check port mapping and DF1 register configuration.

Product Brief

5202-DFNT-DFCM4 is ProSoft ProLinx 4-port protocol gateway,bridge EtherNet/IP network and multiple DF1 serial PLCs,for multi-point industrial automation maintenance and system upgrade.
