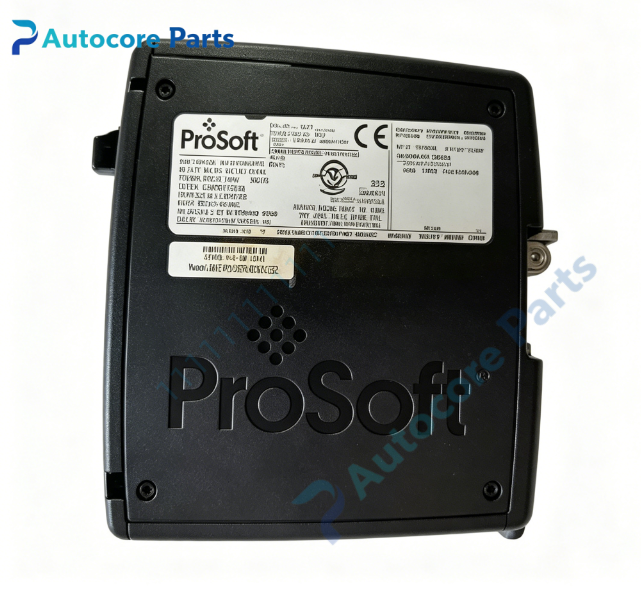

ProSoft PLX31-MBTCP-MBS4 Modbus TCP to 4-Port Modbus Serial Gateway

Technical Specifications

Model:PLX31-MBTCP-MBS4

Brand:ProSoft

Product type:Standalone Modbus TCP/IP to 4-Channel Modbus RTU/ASCII Serial Communication Gateway

Power supply:10~36VDC,nominal 24VDC

Current consumption:300mA@24VDC,max 610mA

Communication:Modbus TCP/IP client/server;four independent serial ports,RS232/RS422/RS485 jumper selectable,Modbus RTU/ASCII

Weight:0.35kg

Operating temperature:-25℃ ~ +70℃

Storage temperature:-40℃ ~ +80℃

Relative humidity:5%~95%,non-condensing

Dimension:136.7mm50.5mm111.3mm

Certification:CE,UL,Class I Division2

System compatibility

PLX31-MBTCP-MBS4 belongs to ProSoft PLX31 series standalone protocol gateway.

It communicates with Modbus TCP controllers,SCADA and HMI systems via Modbus TCP network.

Four independent serial channels connect Modbus serial transmitters,meters,drives and RTU field devices.

Suitable for factory,power and water treatment multi-drop Modbus serial network renovation and spare replacement.

Function

Supports Modbus TCP multi-client and multi-server,each serial port configurable as Modbus master or slave independently.

Supports full set of Modbus function codes,Enron/Daniel floating point data format.

Each serial port supports up to 100 polling commands,baud rate and parity can be set separately.

SD card slot for configuration backup and fast on-site device replacement.

Supports ProSoft Discovery Service for IP configuration without same subnet.

Bidirectional high-speed data conversion between Modbus TCP network and four Modbus serial buses.

Installation

Mount gateway on DIN rail,connect 24VDC power supply.

Connect RJ45 ethernet cable to Modbus TCP network,wire four serial terminals to Modbus field instruments.

Set serial interface via jumpers,configure port parameters and data mapping in ProSoft Configuration Builder.

Set Modbus TCP connection parameters,check LED indicators after power-up.

Interface

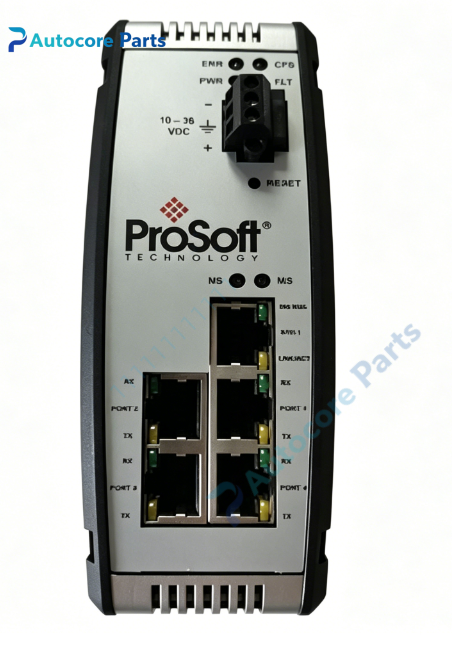

110/100Mbps Ethernet RJ45 port,4terminal block serial ports,SD card slot,power terminal,LED indicators:PWR,FLT,CFG,NS,MS,RX,TX.

Feature

DIN rail mounted compact standalone gateway design.

Isolated ethernet and four serial ports to protect industrial network.

Wide serial baud rate range from 110 to 115200,flexible serial communication parameter setting.

Configuration backup via SD card for fast field replacement.

Shock and vibration resistant design,stable operation in industrial cabinet environment.

Diagnostic

Check module power and status LED;communication failure:verify ethernet wiring,IP address and serial bus termination resistor;data abnormal:check Modbus station address and register mapping table.

Product Brief

PLX31-MBTCP-MBS4 is ProSoft PLX31 series four-channel protocol gateway.

It realizes bidirectional data conversion between Modbus TCP host system and multi-channel Modbus RTU/ASCII serial field devices,for industrial automation multi-point serial network maintenance and transformation.
