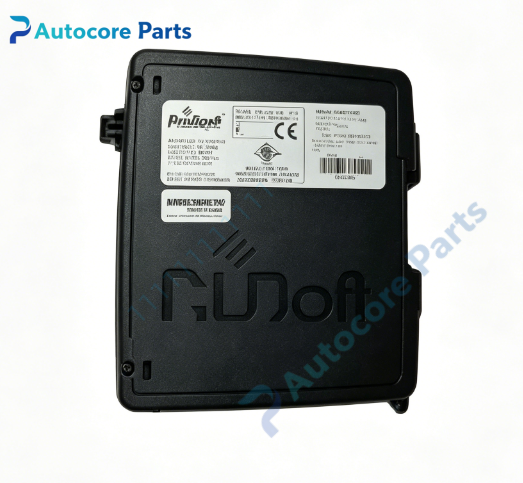

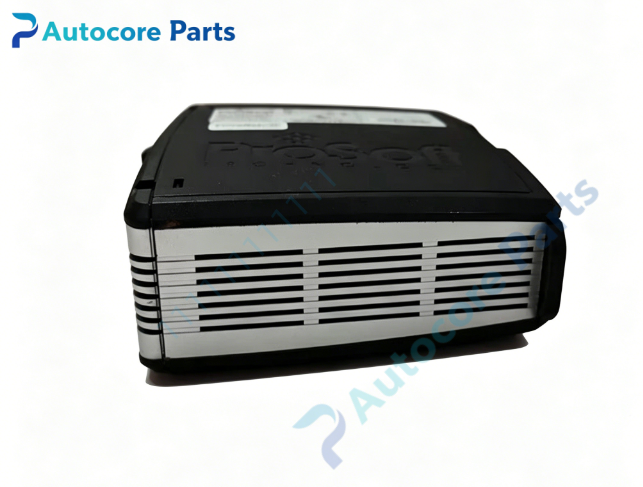

ProSoft PLX31-EIP-SIE EtherNet/IP to Siemens S7 Gateway

Technical Specifications

Model:PLX31-EIP-SIE

Brand:ProSoft

Product type:Standalone EtherNet/IP to Siemens S7 Communication Gateway

Power supply:10~36VDC,nominal 24VDC

Current consumption:300mA@24VDC,max 610mA

Communication:EtherNet/IP adapter;S7 communication protocol,ISO-on-TCP

Weight:0.35kg

Operating temperature:-25℃ ~ +70℃

Storage temperature:-40℃ ~ +80℃

Relative humidity:5%~95%,non-condensing

Dimension:136.7mm50.5mm111.3mm

Certification:CE,UL,Class I Division2

System compatibility

PLX31-EIP-SIE belongs to ProSoft PLX31 series standalone protocol gateway.

It communicates with Rockwell ControlLogix,CompactLogix and other EtherNet/IP controllers via EtherNet/IP network.

It connects Siemens S7-1200,S7-1500,S7-300,S7-400 PLC over ISO-on-TCP.

Suitable for mixed Rockwell and Siemens automation production line renovation and spare replacement.

Function

Works as EtherNet/IP adapter and S7 client.

Supports implicit I/O connection for real-time control and explicit messaging.

Embedded EDS add-on profile,easy integration with Rockwell controller in Studio5000.

Supports read/write of Siemens DB block,input,output,memory bit and marker area.

Supports multiple S7 PLC connections at the same time.

SD card slot for optional configuration backup and quick device replacement.

Supports ProSoft Discovery Service for IP configuration without same subnet.

Bidirectional data exchange between EtherNet/IP and Siemens S7 network.

Installation

Mount gateway on DIN rail,connect 24VDC power supply.

Connect two RJ45 ethernet cables to EtherNet/IP network and Siemens PLC network separately.

Configure IP address,S7 connection parameters and data mapping in ProSoft Configuration Builder.

Import EDS file into Studio5000,establish EtherNet/IP connection,check LED indicators after power-up.

Interface

2*10/100Mbps Ethernet RJ45 ports,SD card slot,power terminal,LED indicators:PWR,FLT,CFG,NS,MS.

Feature

DIN rail mounted compact standalone gateway design.

Isolated dual ethernet ports to isolate two industrial networks.

Supports conformal coating option for harsh environment.

Configuration backup via SD card for fast field replacement.

Shock and vibration resistant design,stable operation in industrial cabinet environment.

Diagnostic

Check module power and status LED;communication failure:verify ethernet wiring,IP address and S7 PLC firewall setting;data abnormal:check DB block number and data mapping table.

Product Brief

PLX31-EIP-SIE is ProSoft PLX31 series dual ethernet protocol gateway.

It realizes bidirectional data exchange between Rockwell EtherNet/IP controllers and Siemens S7 series PLC,for mixed-brand industrial automation system maintenance and transformation.

Disclaimer

Product parameters are for reference only and shall not be used as pricing basis. Goods are in short supply and will be powered on for inspection before shipment. Overseas delivery lead time is 3-7 working days. The product is only used for equipment maintenance and transformation.
