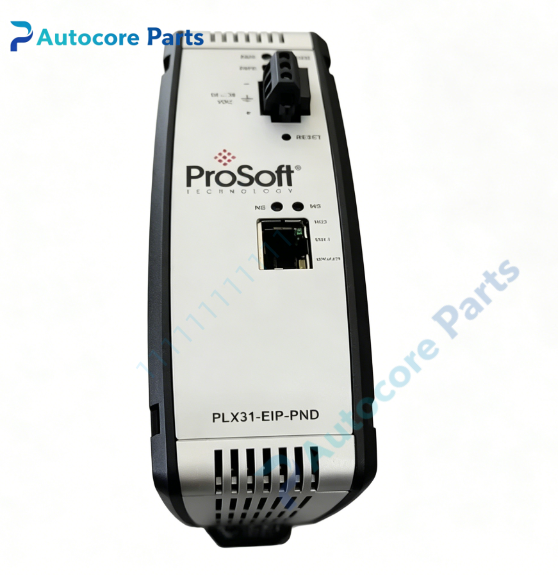

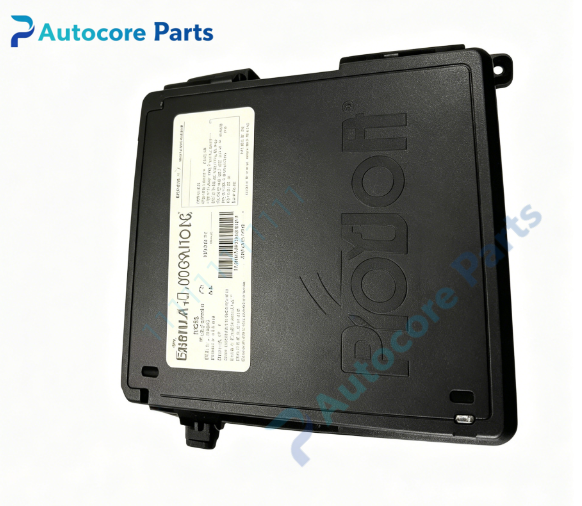

ProSoft PLX31-EIP-PND EtherNet/IP to PROFINET IO Device Gateway

Technical Specifications

Model:PLX31-EIP-PND

Brand:ProSoft

Product type:EtherNet/IP to PROFINET IO Device Standalone Protocol Gateway

Power supply:10~36VDC,nominal 24VDC

Current consumption:300mA@24VDC,max 610mA

EtherNet/IP:8 Class1 I/O connections,max I/O data 496 bytes input /496 bytes output

PROFINET:IO Device mode,RT real-time communication

Ethernet interface:210/100Mbps RJ45,1500Vrms isolation

Weight:0.44kg

Operating temperature:-25℃ ~ +70℃

Storage temperature:-40℃ ~ +80℃

Relative humidity:5%~95%,non-condensing

Dimension:136.7mm50.5mm*111.3mm

Certification:CE,UL,Class I Division2

System compatibility

PLX31-EIP-PND belongs to ProSoft PLX31 series standalone protocol gateway.

Realize data interconnection between Rockwell EtherNet/IP controllers and Siemens PROFINET IO controllers.

Work as PROFINET IO Device on PROFINET side;EtherNet/IP side acts as adapter for Rockwell PAC.

Compatible with ControlLogix,CompactLogix,Siemens S7-1200,S7-1500,S7-300 PN PLC.

Suitable for automotive production line,packaging,water treatment,petrochemical multi-brand PLC network integration renovation and spare replacement.

Function

Bidirectional real-time conversion between EtherNet/IP CIP and PROFINET RT protocol.

Dual Ethernet ports,separate EtherNet/IP and PROFINET network to isolate two control networks.

Support cyclic real-time I/O data exchange and acyclic explicit message communication.

EDS file and GSDML file provided for fast integration in Studio5000 and TIA Portal.

SD card slot for configuration backup and quick module replacement.

ProSoft Discovery Service for IP assignment,online diagnosis and firmware upgrade.

Flexible I/O data mapping,freely configure input and output data length.

Installation

Mount gateway on DIN rail,connect 24VDC power supply.

Connect one RJ45 port to EtherNet/IP network,another port to PROFINET network.

Import GSDML into Siemens TIA Portal,import EDS file into Rockwell Studio5000.

Set IP address and configure I/O data mapping via configuration software.

Check LED indicators after power-on.

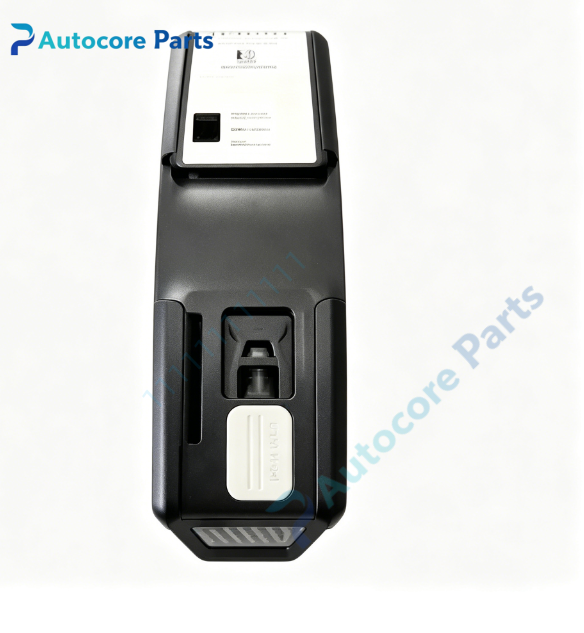

Interface

2*10/100Mbps Ethernet RJ45,power terminal,SD card slot,LED indicators:PWR,ERR,CFG,MS,NS.

Feature

Compact DIN rail industrial gateway,wide operating temperature range.

Dual isolated Ethernet ports,physically separate EtherNet/IP and PROFINET networks.

Support PROFINET RT real-time I/O transmission,meet industrial control cycle requirement.

Ready GSDML and EDS files,simplify multi-brand PLC engineering configuration.

SD card storage for parameter backup,fast on-site replacement without reconfiguration.

Shock and vibration resistant design,stable operation in factory control cabinet.

Diagnostic

Check PWR and network LED;communication failure:verify IP address and network VLAN;data abnormal:check I/O mapping configuration and PLC project download status.

Product Brief

PLX31-EIP-PND is ProSoft PLX31 series EtherNet/IP to PROFINET IO device protocol gateway.

It bridges Rockwell EtherNet/IP and Siemens PROFINET control systems,realizing real-time I/O data exchange,widely used in multi-brand automation system integration transformation.

Disclaimer

Product parameters are for reference only and shall not be used as pricing basis. Goods are in short supply and will be powered on for inspection before shipment. Overseas delivery lead time is 3-7 working days. The product is only used for equipment maintenance and transformation.
