ProSoft PLX31-EIP-ASCII4 EtherNet/IP to 4-Port ASCII Gateway

Technical Specifications

Model:PLX31-EIP-ASCII4

Brand:ProSoft

Product type:EtherNet/IP to Four-Port ASCII Serial Communication Gateway

Power supply:10~36VDC,nominal 24VDC

Current consumption:300mA@24VDC,max 610mA

EtherNet/IP:Class1 I/O connection,Class3 explicit messaging,4 I/O connections,5 Class3 server connections

Serial interface:4 independent serial ports,each port jumper selectable RS232/RS422/RS485

Serial isolation:2500Vrms per channel

Serial baud rate:300~115200 bps

Buffer size:255 bytes TX/RX buffer per port

Weight:0.44kg

Operating temperature:-25℃ ~ +70℃

Storage temperature:-40℃ ~ +80℃

Relative humidity:5%~95%,non-condensing

Dimension:136.7mm50.5mm111.3mm

Certification:CE,UL,Class I Division2

System compatibility

PLX31-EIP-ASCII4 belongs to ProSoft PLX31 series standalone protocol gateway.

Connect Rockwell ControlLogix,CompactLogix and other EtherNet/IP PAC controllers with multiple ASCII serial devices.

Each serial channel works independently,support barcode scanner,weighing scale,serial printer,RFID reader and other ASCII instruments.

Work as client or server,bi-directional data exchange.

Suitable for packaging,food & beverage,manufacturing,oil & gas,water plant multi serial instrument networking renovation and spare replacement.

Function

Realize bidirectional data conversion between EtherNet/IP CIP protocol and 4-channel serial ASCII.

Four independent configurable serial ports,each port support RS232/RS422/RS485 hardware selection.

2500V isolation on every serial channel,protect EtherNet/IP control network from field surge and ground loop interference.

Customizable ASCII framing,delimiter and inter-character timeout for each channel.

Embedded EDS file for easy integration in Rockwell Studio5000.

SD card slot for configuration backup and quick module replacement.

ProSoft Discovery Service for IP assignment and remote diagnosis.

Map multi-channel serial ASCII data into PLC controller tag area separately.

Installation

Mount gateway on DIN rail,connect 24VDC power supply.

Select serial hardware mode via internal jumpers for each channel.

Wire serial cables to multiple ASCII field instruments.

Connect Ethernet cable to EtherNet/IP PLC network.

Configure framing and data mapping by ProSoft configuration software.

Check LED indicators after power-on.

Interface

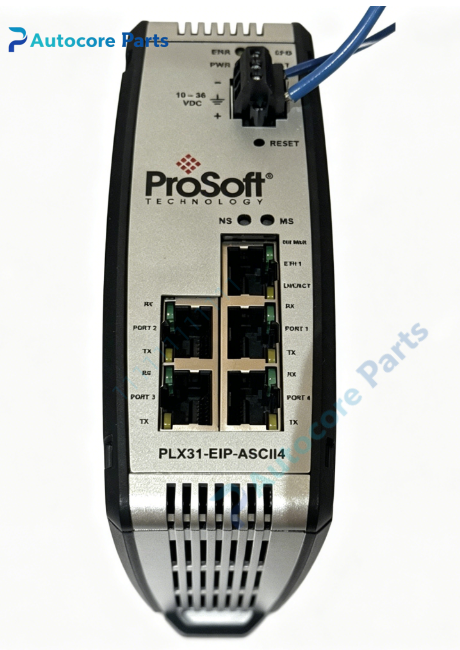

110/100Mbps Ethernet RJ45,4terminal block serial ports,power terminal,SD card slot,LED indicators:PWR,ERR,CFG,MS,NS,TX,RX.

Feature

Compact DIN rail industrial standalone gateway,wide operating temperature.

4 isolated serial channels,save cabinet space when connecting multiple serial devices.

2500V galvanic isolation between each serial field side and EtherNet/IP control network.

Flexible ASCII framing configuration for different serial weighing and scanning devices.

Embedded EDS add-on profile,simplify Rockwell PLC project configuration.

SD card for backup configuration,fast replacement without re-programming.

Shock and vibration resistant design,stable operation in factory control cabinet.

Diagnostic

Check PWR and network LED;communication failure:verify serial wiring,baud rate and delimiter of corresponding channel;data abnormal:check EtherNet/IP tag mapping and framing parameter.

Product Brief

PLX31-EIP-ASCII4 is ProSoft PLX31 series EtherNet/IP to four-port ASCII serial gateway.

It connects multiple barcode,scale and other ASCII serial instruments to Rockwell EtherNet/IP controllers,widely used in factory automation multi-channel serial instrument communication transformation.
