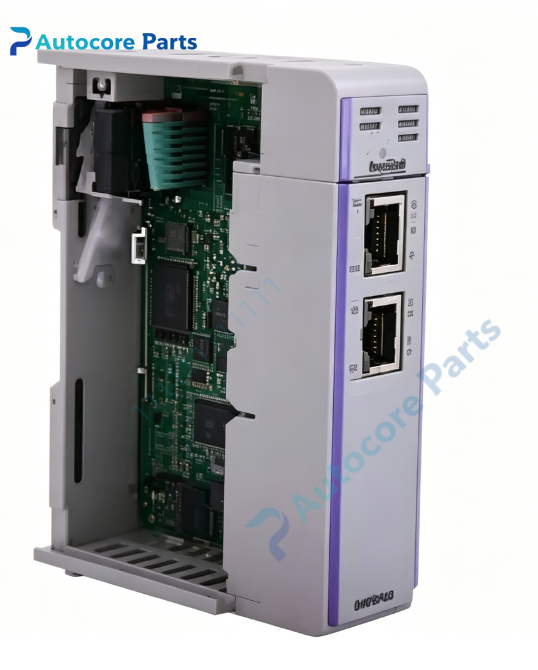

ProSoft MVI69L-MBTCP CLX MBTCP Lite Module

Technical Specifications

Model:MVI69L-MBTCP

Brand:ProSoft

Product type:CompactLogix In-Chassis Modbus TCP/IP Lite Communication Module

Power supply:Supplied via 1769 backplane,450mA @5VDC

Communication:Modbus TCP/IP,single 10/100Mbps Ethernet RJ45 port

Weight:0.29kg

Operating temperature:0℃ ~ +60℃

Dimension:Standard 1769 single slot module,120mm87mm32mm

Certification:CE,UL

System compatibility

MVI69L-MBTCP belongs to ProSoft MVI69L series module.

It plugs directly into Rockwell CompactLogix 1769 rack,compatible with 1769 backplane,firmware version V16 and above required.

MicroLogix 1500 is not supported.

It enables CompactLogix to communicate with Modbus TCP field instruments,PLC and remote I/O devices for small-scale automation and OEM machine projects.

Suitable for factory,machinery and water treatment automation system renovation and spare replacement.

Function

Supports Modbus TCP client and server simultaneously.

Client mode supports up to 10 active connections.

Server mode supports up to 2 concurrent client connections.

Supports Enron/Daniel floating point data and full standard Modbus function codes.

Max I/O data exchange up to 240 words.

Data mapped to CompactLogix controller memory via backplane,equipped with AOI add-on instruction and UDT data type.

Installation

Insert module into 1769 chassis backplane,connect ethernet cable.

Set static or dynamic IP address,configure Modbus client command list in ProSoft Configuration Builder.

Import AOI into Studio5000,download project through RSLinx,check LED indicators after power-up.

Interface

1*10/100Mbps Ethernet RJ45 port,1769 backplane connector,module status,network activity LED indicators.

Feature

Single slot 1769 chassis design,cost-effective lite version for small applications.

Auto crossover ethernet detection,web diagnostic page.

Add-on profile and AOI instruction reduce engineering commissioning time.

Module works as co-processor to reduce PLC scan time impact,stable operation in industrial cabinet environment.

Diagnostic

Check module run and fault LED;communication failure:verify ethernet cable,IP address and network route;data abnormal:check Modbus IP address and register mapping table.

Product Brief

MVI69L-MBTCP is ProSoft MVI69L series lightweight Modbus TCP communication module for CompactLogix rack.

It acts as Modbus TCP gateway to realize bidirectional data exchange between CompactLogix and Modbus TCP network field devices,for small industrial automation system maintenance and transformation.

Disclaimer

Product parameters are for reference only and shall not be used as pricing basis. Goods are in short supply and will be powered on for inspection before shipment. Overseas delivery lead time is 3-7 working days. The product is only used for equipment maintenance and transformation.
