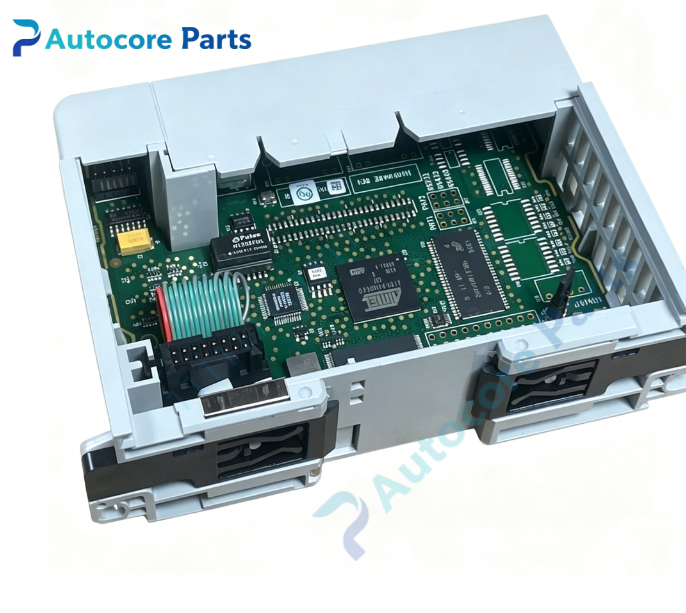

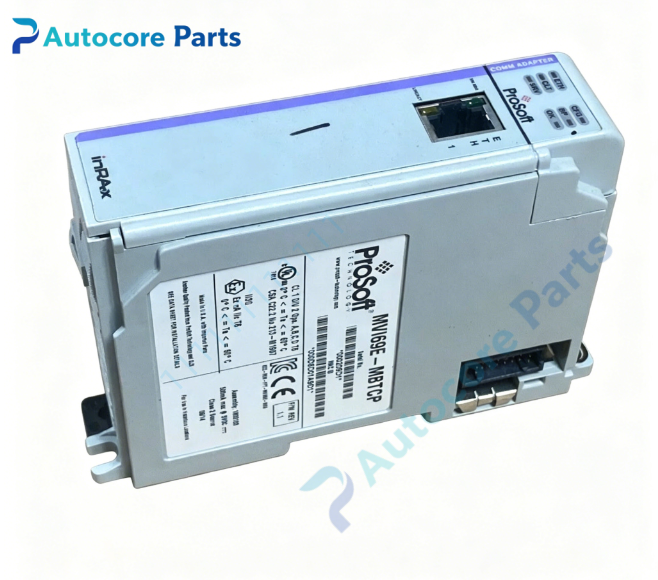

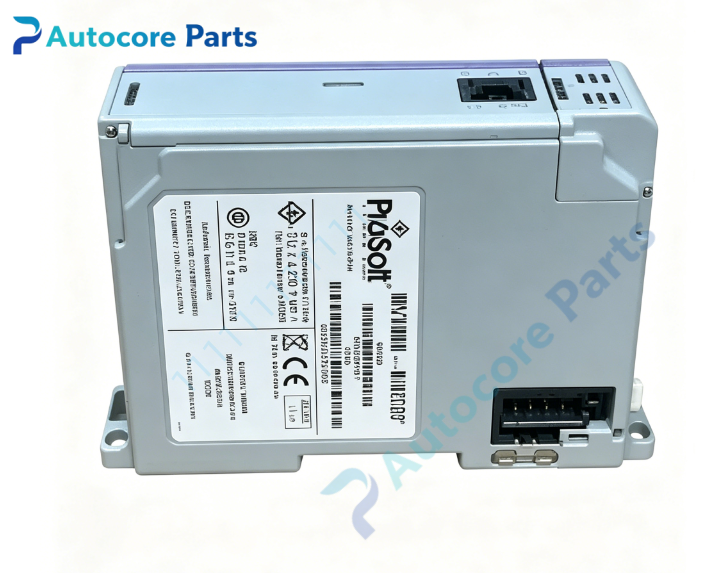

ProSoft MVI69E-MBTCP CLX MBTCP Module

Technical Specifications

Model:MVI69E-MBTCP

Brand:ProSoft

Product type:CompactLogix In-Chassis Modbus TCP/IP Enhanced Communication Module

Power supply:Supplied via 1769 backplane,500mA @5VDC

Communication:Modbus TCP/IP,dual 10/100Mbps Ethernet RJ45 ports

Weight:0.29kg

Operating temperature:0℃ ~ +60℃

Dimension:Standard 1769 single slot module,120mm87mm32mm

Certification:CE,UL

System compatibility

MVI69E-MBTCP belongs to ProSoft MVI69E series module.

It plugs directly into Rockwell CompactLogix 1769 rack,compatible with 1769 backplane.

It enables CompactLogix to communicate with Modbus TCP instruments,PLC,drives and remote I/O devices.

Suitable for factory,energy and water treatment automation system renovation and spare replacement.

Function

Supports Modbus TCP client and server running at the same time.

Client mode supports up to 20 active Modbus TCP connections.

Server mode supports up to 16 concurrent client access connections.

Supports Enron/Daniel floating point data,full set of standard Modbus function codes.

Up to 10000 words register database for data exchange.

Data mapped to CompactLogix controller memory via backplane,equipped with AOI add-on instruction.

Installation

Insert module into 1769 chassis backplane,connect ethernet cable.

Set static or dynamic IP address,configure Modbus client command list in ProSoft Configuration Builder.

Import AOI into Studio5000,download project through RSLinx,check LED indicators after power-up.

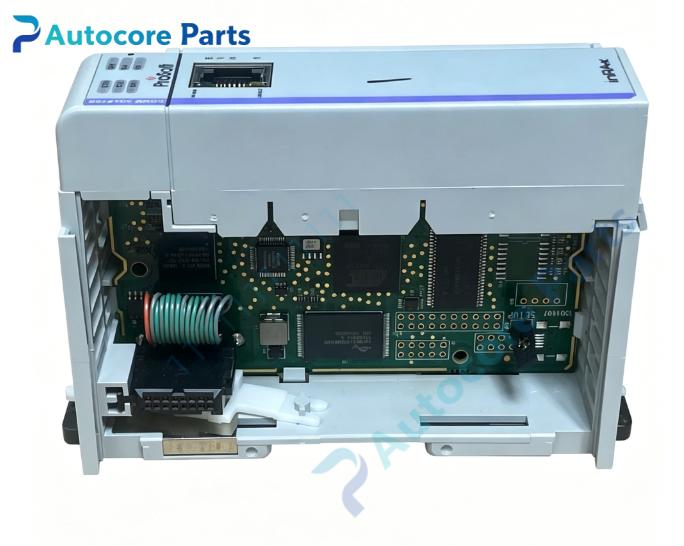

Interface

2*10/100Mbps Ethernet RJ45 ports,1769 backplane connector,module status,network activity LED indicators.

Feature

Single slot 1769 chassis design,port isolation protection.

Auto crossover ethernet detection,web diagnostic page.

Add-on profile and AOI instruction reduce engineering commissioning time.

Configurable connection timeout and retry parameters,stable operation in industrial cabinet environment.

Diagnostic

Check module run and fault LED;communication failure:verify ethernet cable,IP address and network route;data abnormal:check Modbus IP address and register mapping table.

Product Brief

MVI69E-MBTCP is ProSoft MVI69E series enhanced Modbus TCP communication module for CompactLogix rack.

It acts as Modbus TCP gateway to realize bidirectional data exchange between CompactLogix and Modbus TCP network field devices,for industrial automation system maintenance and transformation.

Disclaimer

Product parameters are for reference only and shall not be used as pricing basis. Goods are in short supply and will be powered on for inspection before shipment. Overseas delivery lead time is 3-7 working days. The product is only used for equipment maintenance and transformation.
