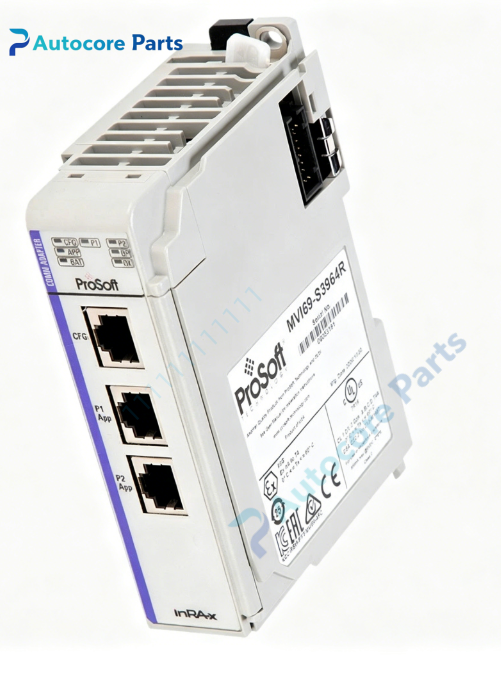

ProSoft MVI69-S3964R CLX S3964R Module

Technical Specifications

Model:MVI69-S3964R

Brand:ProSoft

Product type:CompactLogix In-Chassis Siemens 3964R Serial Communication Module

Power supply:Supplied via 1769 backplane,800mA @5VDC

Communication:Siemens 3964R protocol,supports RK512;dual serial ports,RS232/RS422/RS485 jumper selectable

Max single transmission data:512 bytes

Weight:0.29kg

Operating temperature:0℃ ~ +60℃

Dimension:Standard 1769 single slot module,120mm87mm32mm

Certification:CE,UL

System compatibility

MVI69-S3964R belongs to ProSoft MVI69 series module.

It plugs directly into Rockwell CompactLogix and MicroLogix 1500 LRP rack,compatible with 1769 backplane.

It enables CompactLogix to communicate with Siemens PLC and devices supporting 3964R/RK512 serial protocol.

Suitable for hybrid Rockwell and Siemens old production line renovation and spare replacement.

Function

Adopts Siemens 3964R point-to-point peer protocol,supports BCC checksum to guarantee data integrity.

Dual independent serial ports,each port can run 3964R or 3964R with RK512 mode separately.

RK512 mode supports DB-SEND and DB-FETCH,read and write Siemens data block.

Baud rate ranges from 300 to 115200,supports 7/8 data bits,odd/even/no parity.

Supports byte swap configuration to adapt different word storage format.

Data mapped to CompactLogix controller memory via backplane,comes with sample ladder logic for data transmission.

Installation

Insert module into 1769 chassis backplane,connect serial cable to P1/P2 port.

Set RS232/RS422/RS485 interface via jumpers,configure 3964R parameters in ProSoft Configuration Builder.

Import sample ladder logic into Studio5000,download project through RSLinx,check LED indicators after power-up.

Interface

2RJ45 serial application ports,1RJ45 CFG RS232 configuration port,1769 backplane connector,module status,serial activity LED indicators.

Feature

Single slot 1769 chassis design,500V optical isolation between backplane and serial ports.

Dual serial ports work independently,support point to point communication.

Web diagnostic interface,monitor port status and communication error statistics.

Co-processor architecture reduces PLC scan load,stable operation in industrial cabinet environment.

Diagnostic

Check module run and fault LED;communication failure:verify serial wiring,terminal resistance and baud rate;data abnormal:check 3964R protocol parameter and data block mapping.

Product Brief

MVI69-S3964R is ProSoft MVI69 series Siemens 3964R serial communication module for CompactLogix rack.

It acts as serial gateway to realize bidirectional point-to-point data exchange between CompactLogix and Siemens 3964R/RK512 devices,for industrial automation system maintenance and transformation.
