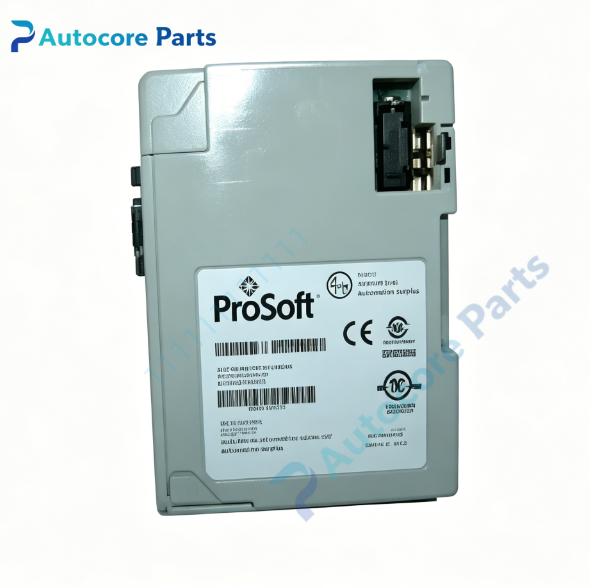

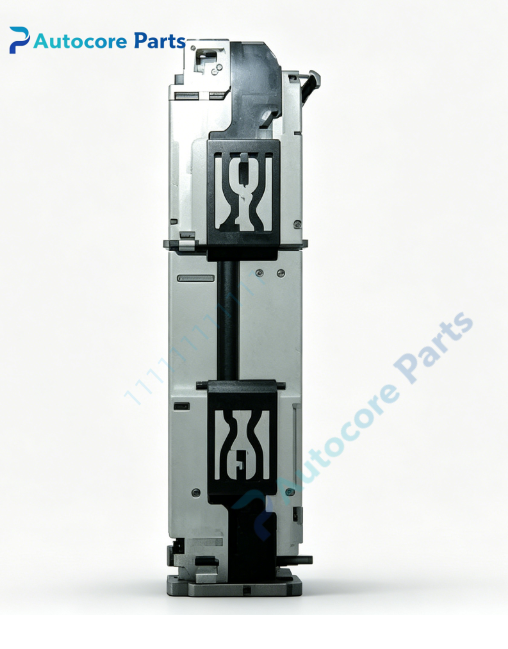

ProSoft MVI69-PDPMV1 CLX PDPMV1 Module

Technical Specifications

Model:MVI69-PDPMV1

Brand:ProSoft

Product type:CompactLogix In-Chassis PROFIBUS DP-V1 Master Communication Module

Power supply:Supplied via 1769 backplane,800mA @5.1VDC

Communication:PROFIBUS DP-V0/DPV1,optical isolated RS485,DB9F PROFIBUS interface,baud rate up to 12Mbps

Weight:0.29kg

Operating temperature:0℃ ~ +60℃

Dimension:Standard 1769 single slot module,120mm87mm32mm

Certification:CE,UL

System compatibility

MVI69-PDPMV1 belongs to ProSoft MVI69 series module.

It plugs directly into Rockwell CompactLogix and MicroLogix 1500 LRP rack,compatible with 1769 backplane.

It enables CompactLogix to act as PROFIBUS DP master and communicate with PROFIBUS DP slave devices including drives,remote I/O and field instruments.

Suitable for manufacturing,water treatment and energy automation system renovation and spare replacement.

Function

Fully compliant with IEC 61158,supports PROFIBUS DP-V0 cyclic I/O and DPV1 acyclic messaging.

Supports Class1 and Class2 DPV1 services for device parameter read/write and asset diagnosis.

Max cyclic I/O data up to 768 words,supports up to 125 PROFIBUS slave nodes on single bus.

Comes with personality module for saving network configuration,fast on-site module replacement.

Data mapped to CompactLogix controller memory via backplane,asynchronous data transmission between PLC backplane and PROFIBUS network.

Supports AOI add-on instruction for DPV1 acyclic communication and network diagnostics.

Installation

Insert module into 1769 chassis backplane,connect PROFIBUS RS485 cable to DB9 port.

Configure PROFIBUS slave list and I/O mapping in ProSoft Configuration Builder.

Import AOI into Studio5000,download project through RSLinx,check LED indicators after power-up.

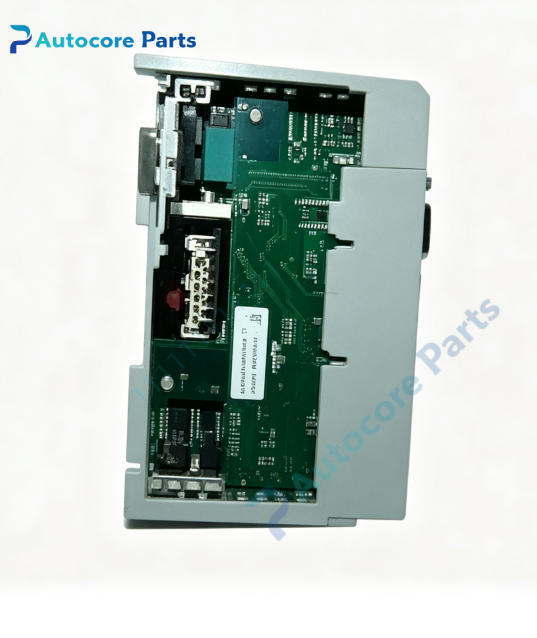

Interface

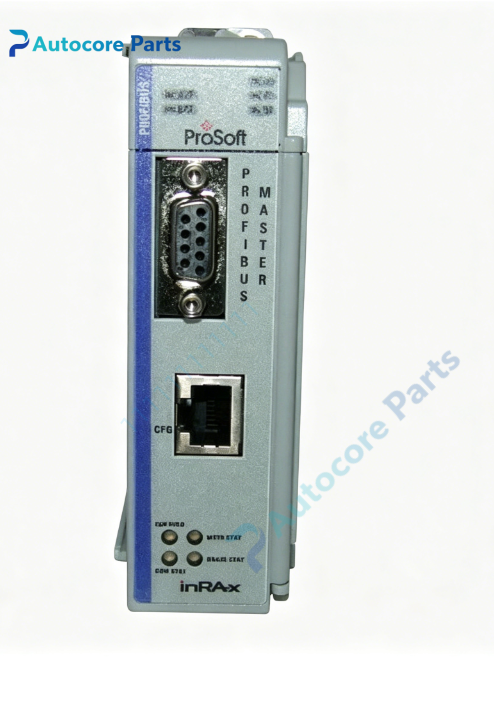

1DB9F isolated PROFIBUS RS485 port,1RJ45 CFG RS232 configuration port,1769 backplane connector,module status,network token,run and fault LED indicators.

Feature

Single slot 1769 chassis design,opto-isolated PROFIBUS port to protect backplane.

Personality module stores full network configuration,swap module without re-download project.

Rich PROFIBUS network diagnosis,slave status monitoring and alarm information.

Co-processor architecture reduces PLC scan load,stable operation in industrial cabinet environment.

Diagnostic

Check module run and fault LED;communication failure:verify PROFIBUS cable,termination resistor and baud rate;data abnormal:check slave station address and cyclic I/O mapping table.

Product Brief

MVI69-PDPMV1 is ProSoft MVI69 series PROFIBUS DP-V1 master communication module for CompactLogix rack.

It acts as PROFIBUS DP gateway to realize bidirectional cyclic and acyclic data exchange between CompactLogix and PROFIBUS DP slave field devices,for industrial automation system maintenance and transformation.

Disclaimer

Product parameters are for reference only and shall not be used as pricing basis. Goods are in short supply and will be powered on for inspection before shipment. Overseas delivery lead time is 3-7 working days. The product is only used for equipment maintenance and transformation.
