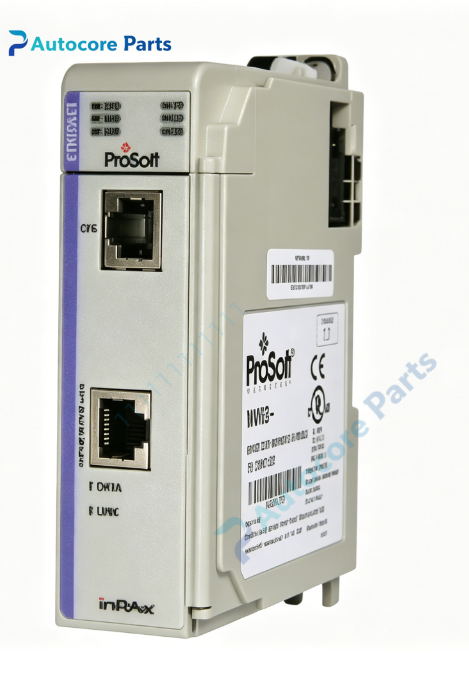

ProSoft MVI69-EGD CLX EGD Module

Technical Specifications

Model:MVI69-EGD

Brand:ProSoft

Product type:CompactLogix In-Chassis GE EGD Ethernet Communication Module

Power supply:Supplied via 1769 backplane,800mA @5VDC

Communication:GE EGD(Ethernet Global Data),10/100Mbps Ethernet,UDP protocol

Weight:0.29kg

Operating temperature:0℃ ~ +60℃

Dimension:Standard 1769 single slot module,120mm87mm32mm

Certification:CE,UL

System compatibility

MVI69-EGD belongs to ProSoft MVI69 series module.

It plugs directly into Rockwell CompactLogix and MicroLogix 1500 LRP rack,compatible with 1769 backplane.

It realizes real-time data interaction between CompactLogix and GE Fanuc PLC supporting EGD protocol.

Suitable for mixed GE and Rockwell control system renovation and spare replacement.

Function

It supports GE EGD producer/consumer data exchange based on UDP.

Supports unicast,broadcast and multicast transmission mode,up to 16 multicast groups.

Adopts deterministic cyclic data transmission,realizes cross-platform high-speed data sharing.

Built-in internal register database,data mapped to CompactLogix controller memory via backplane.

Supports EGD configuration signature verification to ensure data exchange consistency.

Installation

Insert module into 1769 chassis backplane,connect ethernet cable.

Set IP address and EGD produce/consume exchange list in ProSoft Configuration Builder.

Import AOI into Studio5000,download project through RSLinx,check LED indicators after power-up.

Interface

110/100Mbps Ethernet RJ45 port,1RJ45 CFG RS232 configuration port,1769 backplane connector,module status,network activity LED indicators.

Feature

Single slot 1769 chassis design,1500V isolation between backplane and ethernet port.

Auto crossover ethernet detection,optimized bandwidth utilization.

Web diagnostic interface,supports time synchronization,stable operation in industrial cabinet environment.

Diagnostic

Check module run and fault LED;communication failure:verify ethernet cable,IP address and multicast route;data abnormal:check EGD exchange ID and configuration signature.

Product Brief

MVI69-EGD is ProSoft MVI69 series GE EGD ethernet communication module for CompactLogix rack.

It acts as EGD protocol gateway to realize bidirectional real-time data exchange between CompactLogix and GE Fanuc PLC,for multi-brand industrial automation system maintenance and transformation.
