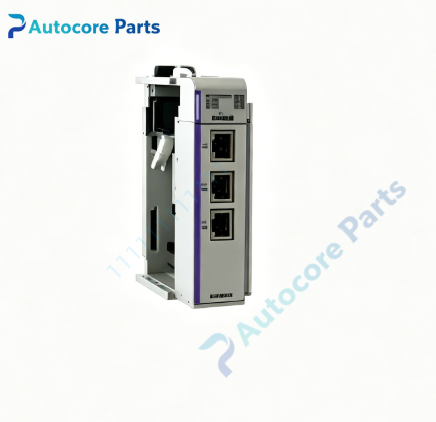

ProSoft MVI69-103M CLX 103M Module

Technical Specifications

Model:MVI69-103M

Brand:ProSoft

Product type:CompactLogix In-Chassis IEC 60870-5-103 Master Communication Module

Power supply:Supplied via 1769 backplane,800mA @5VDC,3mA @24VDC

Communication:IEC 60870-5-103,dual serial ports,RS422/RS485

Weight:0.29kg

Operating temperature:0℃ ~ +60℃

Dimension:Standard 1769 single slot module,120mm87mm32mm

Certification:CE,UL

System compatibility

MVI69-103M belongs to ProSoft MVI69 series module.

It plugs directly into Rockwell CompactLogix and MicroLogix 1500 rack,compatible with 1769 backplane.

It connects PLC with IEC60870-5-103 slave protection relays,circuit breakers and substation IEDs.

Suitable for power substation automation renovation and spare replacement.

Function

It works as IEC60870-5-103 master station,two independent serial master ports.

Supports up to 32 IED field devices in total,baud rate optional 9600/19200.

Realizes protection event,measuring value and status signal reading from relay equipment.

Data mapped to CompactLogix controller memory via backplane,supports time-stamped event records.

Installation

Insert module into 1769 chassis backplane,wire serial cable.

Set RS422/RS485 interface mode via jumpers,configure IED list in ProSoft Configuration Builder.

Import AOI into Studio5000,download project through RSLinx,check LED indicators after power-up.

Interface

2RJ45 serial application ports,1RJ45 CFG RS232 configuration port,1769 backplane connector,module status,serial activity LED indicators.

Feature

Single slot 1769 chassis design,isolated serial ports.

Dual independent networks,event data buffering,web diagnostic interface.

Stable operation in power cabinet and substation environment.

Diagnostic

Check module run and fault LED;communication failure:verify serial wiring,terminal resistance and baud rate;data abnormal:check IED address and point mapping table.

Product Brief

MVI69-103M is ProSoft MVI69 series IEC60870-5-103 master serial communication module for CompactLogix rack.

It enables CompactLogix to communicate with power protection relays and substation IEDs,for power industrial automation system maintenance and transformation.

Disclaimer

Product parameters are for reference only and shall not be used as pricing basis. Goods are in short supply and will be powered on for inspection before shipment. Overseas delivery lead time is 3-7 working days. The product is only used for equipment maintenance and transformation.
