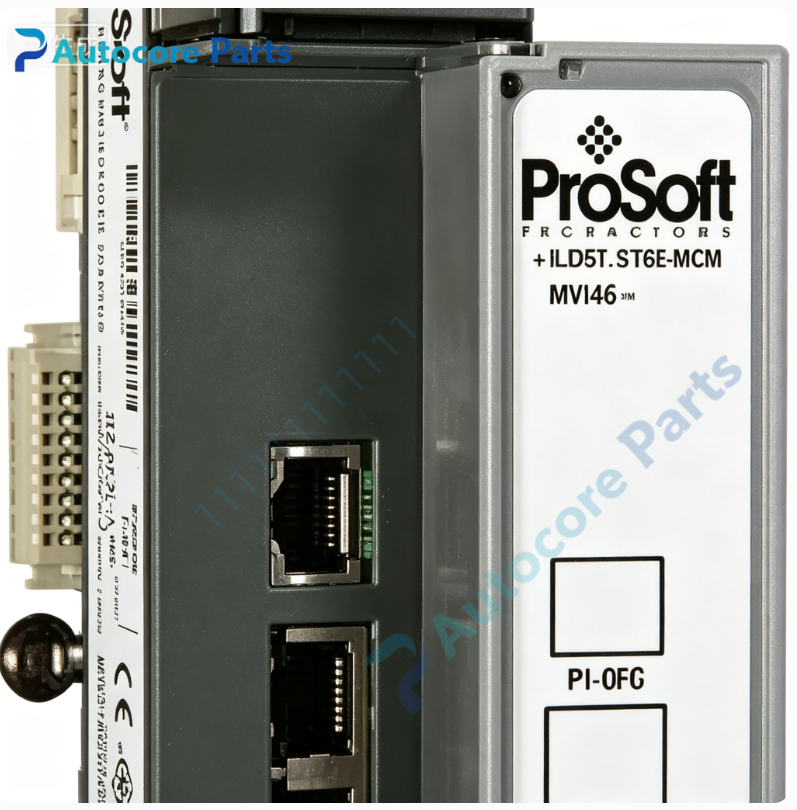

ProSoft MVI46-MCM SLC500 Modbus Module

Technical Specifications

Model:MVI46-MCM

Brand:ProSoft

Product type:SLC500 In-Chassis Modbus Communication Module

Power supply:Supplied via SLC500 backplane,800mA @5VDC

Communication:Modbus RTU / ASCII,2 serial ports,RS232/RS422/RS485

Weight:0.27kg

Operating temperature:0℃ ~ +60℃

Dimension:Standard SLC500 single slot module,120mm87mm32mm

Certification:CE,UL

System compatibility

MVI46-MCM belongs to ProSoft MVI46 series module.It plugs directly into Rockwell SLC500 rack,compatible with SLC 5/02 and above processors with M0/M1 file capability,suitable for connecting SLC500 PLC to Modbus serial sensors,transmitters and meters,legacy automation system renovation and spare replacement.

Function

Each of the two serial ports can be independently set as Modbus master or slave.It realizes bidirectional register data exchange between SLC500 and Modbus devices,supports complete Modbus function codes.Data is mapped to SLC500 controller memory via backplane.

Installation

Insert module into SLC500 chassis backplane,wire RS232/422/485 serial bus,select interface mode via jumpers,configure port parameters and register mapping via ProSoft Configuration Builder,download project through RSLinx,check LED indicators after power-up.

Interface

2*RJ45 serial application ports,RJ45 configuration port,SLC500 backplane connector,module status,application and serial communication LED indicators.

Feature

Single slot SLC500 chassis design,two isolated configurable serial ports,each port supports master/slave mode,web diagnostic interface,configurable baud rate,stable operation in industrial cabinet environment.

Diagnostic

Check module run and fault LED;communication failure:verify serial wiring,terminal resistance,station address and baud rate;data abnormal:check Modbus parameter configuration and register mapping table.

Product Brief

MVI46-MCM is ProSoft MVI46 series Modbus serial communication module for SLC500 rack.It connects Rockwell SLC500 controller with Modbus RTU/ASCII field devices,for industrial automation system maintenance and transformation.

Disclaimer

Product parameters are for reference only and shall not be used as pricing basis. Goods are in short supply and will be powered on for inspection before shipment. Overseas delivery lead time is 3-7 working days. The product is only used for equipment maintenance and renovation.
