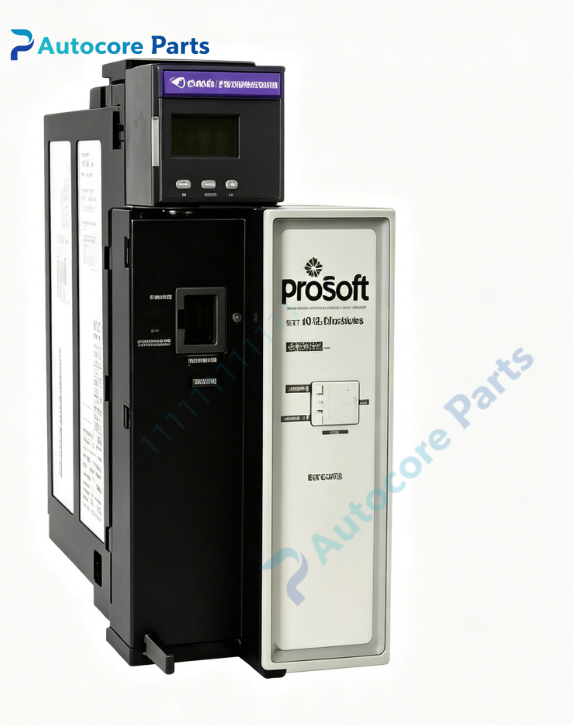

ProSoft MV156E-MCMR ControlLogix Modbus Master Slave In-Chassis Communication Module

Technical Specifications

Model:MV156E-MCMR

Brand:ProSoft

Product type:ControlLogix In-Chassis Modbus Communication Module

Power supply:Supplied via 1756 backplane,800mA @5VDC,3mA @24VDC

Communication:Modbus RTU / ASCII,2 configurable serial ports(RS232/RS422/RS485)

Weight:0.29kg

Operating temperature:0℃ ~ +60℃

Dimension:Standard 1756 single slot module,120mm87mm32mm

Certification:CE,UL

System compatibility

MV156E-MCMR belongs to ProSoft inRAx series module.It is installed directly in Rockwell ControlLogix 1756 chassis,suitable for connecting Modbus serial field instruments,flow meters and sensors to Logix control system,ideal for system renovation and spare replacement.

Function

It supports Modbus master or slave mode on each of the two independent serial ports. Adopts reduced data block design to lower backplane data load,realizes bidirectional real-time register data mapping between ControlLogix controller and Modbus serial devices. Supports complete Modbus function codes and user-defined register database.

Installation

Insert module into ControlLogix 1756 chassis backplane,wire RS232/485 serial bus,configure port parameters and register mapping via ProSoft Configuration Builder,download AOI add-on instruction in RSLogix5000,check LED indicators after power-up.

Interface

2DB9 serial ports,110/100Mbps Ethernet RJ45 diagnostic port,ControlLogix backplane connector,alpha-numeric display,run and fault status LED indicators.

Feature

Single-slot 1756 chassis design,reduced I/O data block to reduce controller load,two isolated serial ports,web page diagnostic and configuration,auto-crossover Ethernet,support AOP/AOI for seamless integration with Logix controller.

Diagnostic

Check module run and fault LED;communication failure:verify serial wiring,terminal resistance,station address and baud rate;data abnormal:check register mapping and module database configuration.

Product Brief

MV156E-MCMR is ProSoft inRAx Modbus serial communication module for ControlLogix rack.It connects Rockwell ControlLogix PLC with Modbus RTU/ASCII field devices,for industrial automation system maintenance and transformation.
