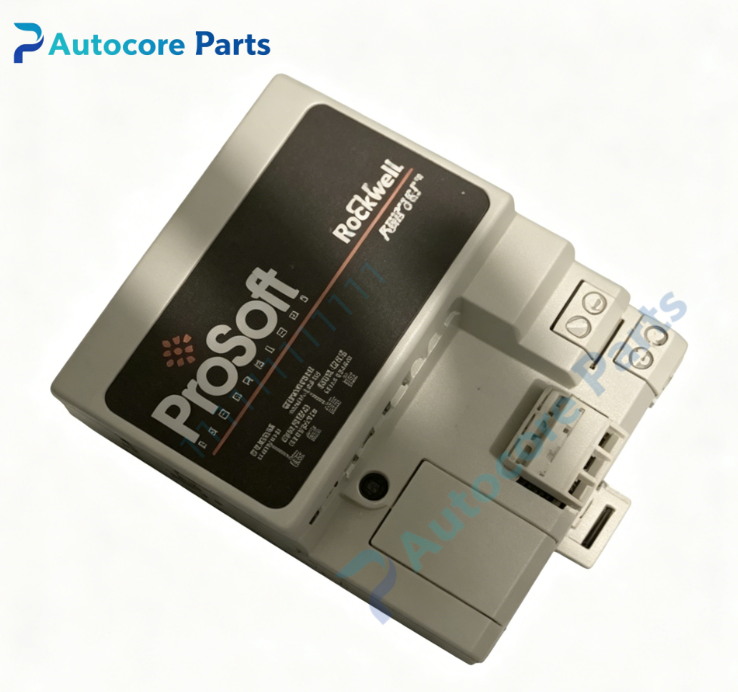

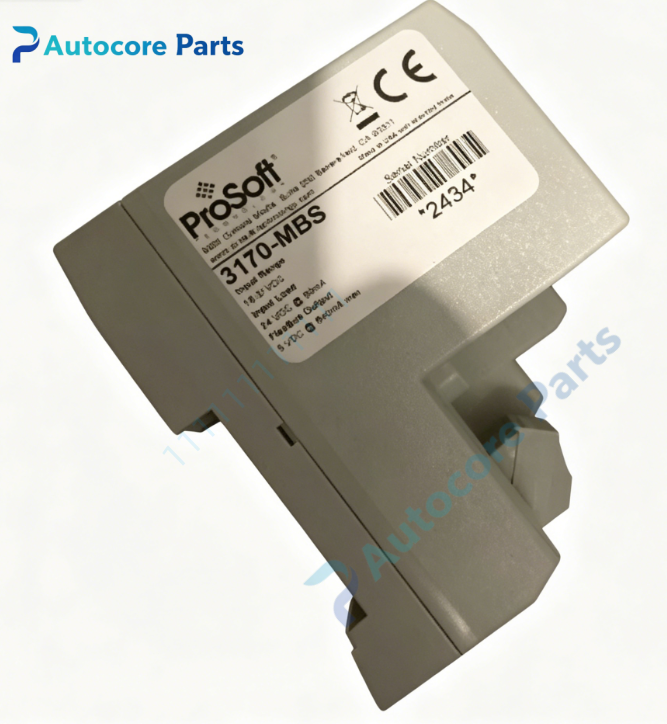

ProSoft 3170-MBS Modbus Slave Communication Adapter

Technical Specifications

Model:3170-MBS

Brand:ProSoft

Product type:Modbus Slave Communication Adapter

Power supply:12-24VDC

Communication:Modbus RTU / Modbus ASCII,RS485

Max I/O modules:8

Weight:0.23kg

Operating temperature:-40℃ ~ +85℃

Dimension:101.6mm71.1mm30.5mm

Certification:CE,UL

System compatibility

3170-MBS is ProSoft communication adapter,designed for Rockwell FLEX I/O system.It connects FLEX I/O modules to Modbus master devices for data acquisition and control,widely used in industrial automation renovation and maintenance.

Function

3170-MBS acts as Modbus slave,realizes bidirectional data exchange between FLEX I/O and Modbus host system.Supports discrete and analog data access,uses DIP switch for simple configuration.

Installation

Install on FLEX I/O rack,wire RS485 bus,set DIP switch for station address and baud rate,check LED indicators after power on.

Interface

RS485 multi-drop bus terminal,status LED indicators,module bus connector for FLEX rack.

Feature

Compact single slot design,wide temperature range,pre-mapped Modbus register,supports standard Modbus function codes,stable for harsh industrial environments.

Diagnostic

Check power LED and communication LED;No communication:verify address,baud rate and bus wiring;Data abnormal:check I/O module status and register mapping.

Product Brief

3170-MBS is ProSoft Modbus slave adapter for FLEX I/O rack.It enables FLEX I/O to communicate with Modbus master equipment,used for industrial system spare replacement and maintenance.
