OPTIMATION OP-640 Operator Terminal

Module Feature

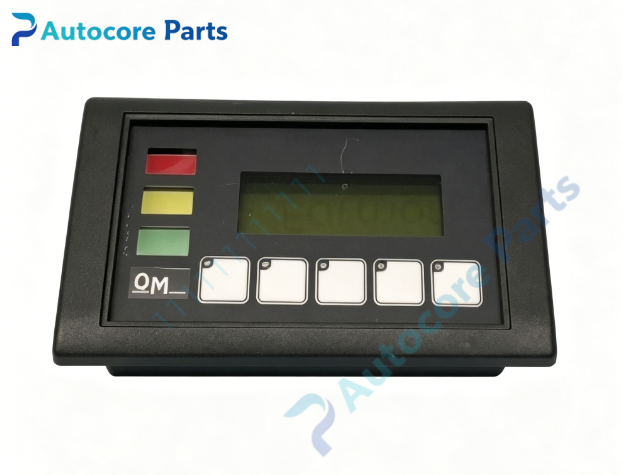

OPTIMATION OP-640 belongs to OptiMate series operator terminal. Operating voltage range 8~30VDC. Equipped with character LCD display, dedicated membrane function and numeric keypad, built-in front panel status LED indicators. Supports RS422 serial multi-drop communication bus, can connect to OP-9001 communication master, multiple panels can share one PLC serial port. Panel cutout mounting design, front face meets NEMA4 / IP65 protection standard. Widely used for semiconductor wet bench and chemical fluid delivery control cabinet for process value display, parameter setting and alarm message monitoring.

Working principle: OP-640 exchanges real-time data with host controller through RS422 multi-drop bus. It reads process data and alarm information to display on LCD. Operator inputs via membrane keypad are transmitted back to controller to modify setpoints or execute manual operations. Onboard components: Character LCD screen, membrane keypad, main control PCB, RS422 serial circuit, metal front frame, status LED indicators

LED indicatorsFront panel bi-color LED for power and communication status

Hardware self-diagnosis

Visual inspection, keypad function test, LCD display check, serial communication test, memory message verification

Programming software

OP-WINEDIT OptiMate configuration software, used for message editing, tag mapping, baud rate and network address configuration

Electrical & Process Parameters

Power supply:8 ~ 30VDC Communication:RS422 multi-drop serial bus Mount type:Control cabinet panel cutout mounting Protection front:NEMA4 / IP65

Mechanical & Structure

Mounting:Panel cutout installation with fixing clamps Protection class:IP20 rear side

Environmental

Operating temperature:0℃ ~ +50℃ Ambient humidity:5~95% non-condensing Certification:CE compliant Status:OPTIMATION OptiMate operator terminal

System compatibility

Compatible with OPTIMATION OP-9001 communication master; works with OL4054, OL4058, OL4228 OptiLogic RTU racks, supports mainstream PLC.

Function

OP-640 operator terminal manufactured by OPTIMATION. It provides local human machine interface for wet bench equipment operation. Wrong baud rate or missing bus termination resistor will cause communication failure. It is field operation and alarm display component for chemical delivery automation cabinet.

Installation

Follow lockout/tagout safety procedure before installation. Power off control cabinet. Install panel into cabinet cutout and fasten mounting clamps. Wire 8-30VDC power and RS422 shielded serial cable. Download project file by OP-WINEDIT, test keypad, display and communication before production startup.

Interface

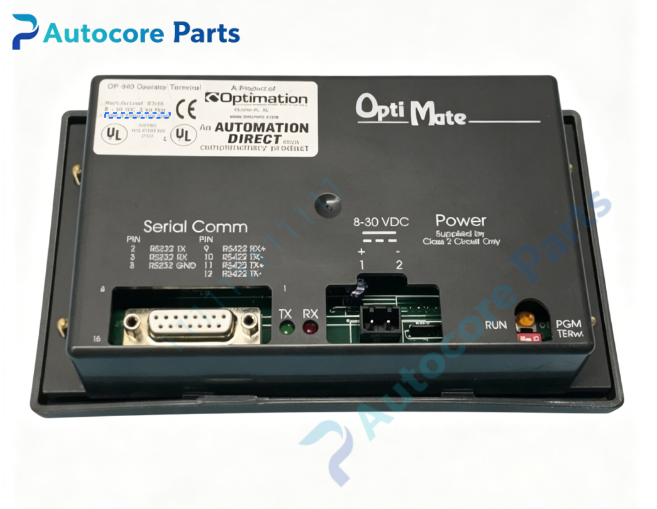

DC power terminal block, RS422 serial connector, LCD display, membrane keypad and status LED indicators on housing of OP-640.

Diagnostic

No communication:Baud rate mismatch, wrong wiring or missing termination resistor. Blank screen:Power supply out of 8~30VDC range. Single key invalid:Membrane keypad aging damage. Garbled text:Unshielded cable cause signal noise interference.

Product Brief

OP-640 OPTIMATION OptiMate operator terminal,8~30VDC power supply,RS422 multi-drop serial,IP65 front panel,for semiconductor wet bench and chemical delivery process parameter setup and alarm
