OPTIMATION OM1500 Operator Terminal

Module Feature

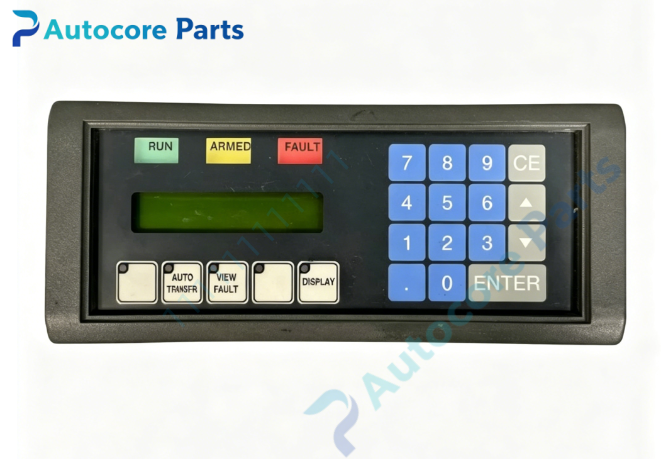

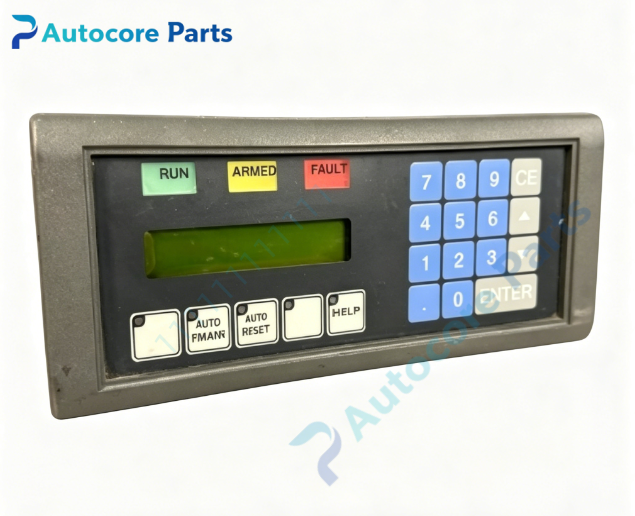

OPTIMATION OM1500 belongs to OptiMate series human machine interface operator terminal. Equipped with character LCD display, membrane numeric and function keypad, front panel status LED indicators. Supports RS232 and RS422 serial multi-drop communication, can work with OP-9001 communication master to realize multi-panel network connection. Panel cutout mounting structure, front panel with NEMA4 / IP65 protection. Widely used in semiconductor wet bench and chemical fluid delivery control cabinets for process value display, parameter modification and alarm message monitoring.

Working principle: OM1500 communicates with host PLC or OptiLogic RTU through serial bus. It reads real-time process data and alarm information and displays on LCD. Operator’s keypad input will be transmitted back to the controller to adjust setpoints or trigger manual control commands. Onboard components: Character LCD screen, membrane keypad, main logic PCB, serial communication circuit, metal front frame, status LED lights

LED indicatorsBi-color LED indicators for power and communication status on front panel

Hardware self-diagnosis

Visual inspection, keypad function test, LCD display check, serial communication test, message storage verification

Programming software

OP-WINEDIT OptiMate configuration software for message editing, tag mapping, baud rate and station address configuration

Electrical & Process Parameters

Power supply:10 ~ 30VDC Display:Character LCD Input device:Membrane numeric & function keypad Communication:RS232 / RS422 multi-drop serial Mount type:Control cabinet panel cutout mounting

Mechanical & Structure

Mounting:Front panel cutout installation with clamps Protection class:IP65 / NEMA4 front face, IP20 rear side

Environmental

Operating temperature:0℃ ~ +50℃ Ambient humidity:5~95% non-condensing Certification:CE compliant Status:OPTIMATION OptiMate operator terminal

System compatibility

Compatible with OPTIMATION OP-9001 communication master, OL4054, OL4058, OL4228 OptiLogic RTU racks; supports GE 90-30, Allen-Bradley, Modbus RTU PLC.

Function

OM1500 operator terminal manufactured by OPTIMATION. It provides local HMI operation interface for wet bench process control. Incorrect baud rate or lack of bus termination resistor will lead to serial communication timeout. It is on-site operation and alarm display component for chemical delivery automation cabinet.

Installation

Follow lockout/tagout safety procedure before installation. Power off control cabinet. Install panel into cabinet cutout and lock mounting clamps. Wire 10-30VDC power and shielded RS422/RS232 serial cable. Download configuration project via OP-WINEDIT, test display, keypad and communication function before production startup.

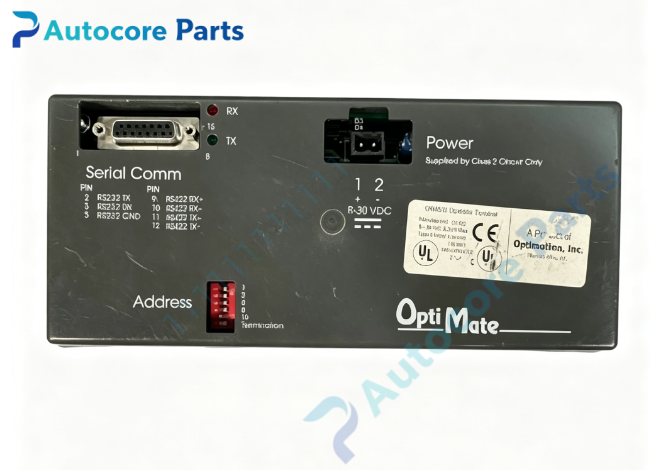

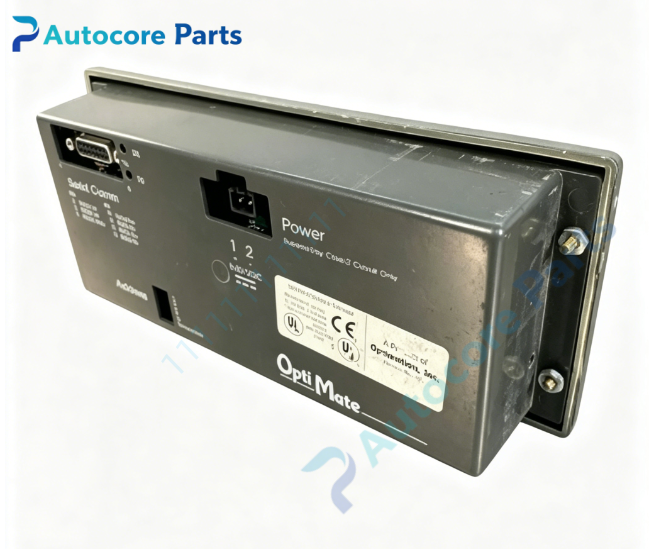

InterfaceSerial D-sub connector, DC power terminal block, LCD display, membrane keypad and status LED indicators on housing of OM1500.

Diagnostic

No serial communication:Baud rate mismatch, wrong wiring or missing bus termination resistor. Blank LCD:Power loss or backlight damage. Key no response:Membrane keypad aging and wear. Messy display:Electromagnetic noise without shielded cable.

Product Brief

OM1500 OPTIMATION OptiMate operator terminal,character LCD with membrane keypad,RS232/RS422 multi-drop serial,IP65 front panel,for semiconductor wet bench and chemical delivery process parameter setting and alarm monitoring.
