OPTIMATION INC OL4054 4-Slot RTU Base

Module Feature

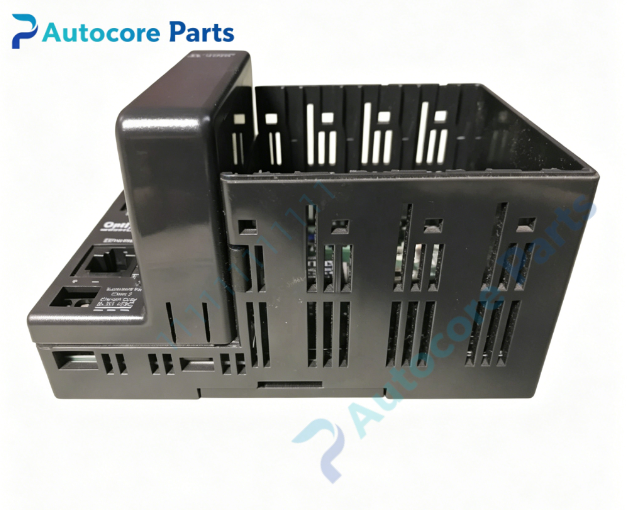

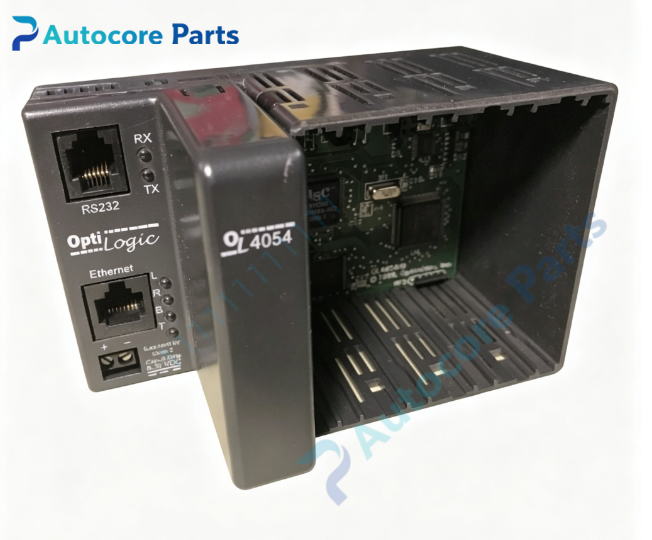

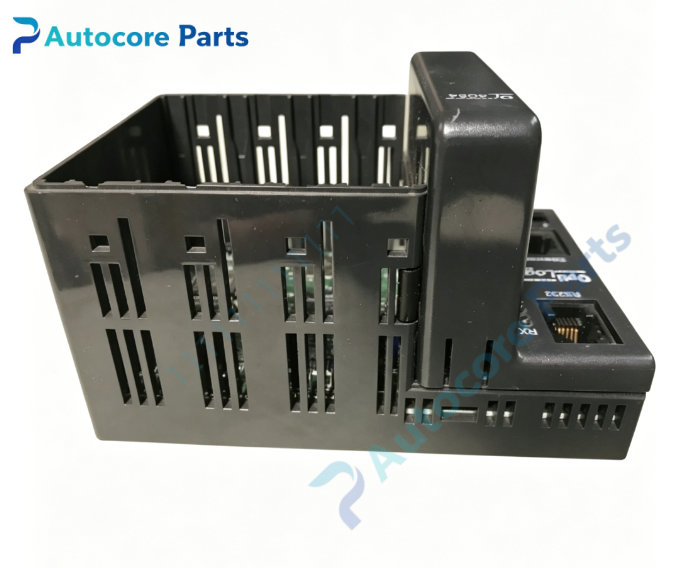

OPTIMATION INC OL4054 is OptiLogic series 4-slot Remote Terminal Unit base chassis, manufactured by OPTIMATION INC. It supports hot-plug OL series I/O modules, built-in 10BaseT Ethernet communication supporting OptiLogic/UDP and IPX protocols, additionally equipped with RS232 serial port for local configuration and operator panel connection. The internal backplane provides 2.8A@5V power supply for all inserted I/O cards. Compact metal DIN rail housing, users can freely combine digital input, relay output and analog input modules. Widely used for small footprint semiconductor wet bench and compact chemical fluid delivery distributed control systems.

Working principle: The backplane provides power and internal bus communication for all installed I/O modules. It collects discrete and analog field sensor data from I/O cards, transmits data to host controller over Ethernet, and receives host control commands to drive field actuators. The RS232 port supports firmware upgrade and local HMI connection. Onboard components: Metal DIN rail housing, main logic PCB,10BaseT Ethernet circuit, RS232 serial interface, four module slots, DC power terminal block, backplane edge connectors, front panel status LEDs

LED indicatorsPower, Ethernet link, RS232 TX/RX and rack fault LED indicators on front panel

Hardware self-diagnosis

Visual inspection, slot mechanical fit test, backplane continuity test, Ethernet link test, RS232 communication test, module slot identification verification

Programming software

OPTIMATION OL System Builder software for network address setup, I/O module mapping, fault log reading and RTU configuration

Electrical & Process Parameters

Power supply:8 ~ 30VDC Power consumption:16VA Backplane power output:2.8A @5V for I/O modules Communication:10BaseT Ethernet (OptiLogic/UDP, IPX), RS232 serial port Slot quantity:4 standard OptiLogic I/O slots Mount type:DIN rail cabinet mounting

Mechanical & Structure

Mounting:DIN rail snap-in mounting Protection class:IP20

Environmental

Operating temperature:0℃ ~ +50℃ Ambient humidity:5~95% non-condensing Certification:CE compliant Status:OPTIMATION INC OptiLogic 4-slot RTU base

System compatibility

Compatible with full OL series I/O modules including OL2208, OL2208RA, OL2108, OL2109, OL2408, OL2205; works with OPTIMATION OP / OM series operator panels and mainstream PLC.

Function

OL4054 RTU base manufactured by OPTIMATION INC. It serves as compact remote I/O rack for small-scale process control expansion. Poor backplane contact or incorrect network IP configuration will lead to module offline and signal loss. It is core small capacity distributed I/O chassis for wet process automation control cabinet.

Installation

Follow lockout/tagout safety procedure before installation. Power off OptiLogic RTU rack. Mount chassis on DIN rail. Insert I/O modules into empty slots and lock latches. Wire 8-30VDC power and Ethernet cable. Configure network parameters and test all I/O channels before production startup. Install OL0001 blank filler card for unused slots.

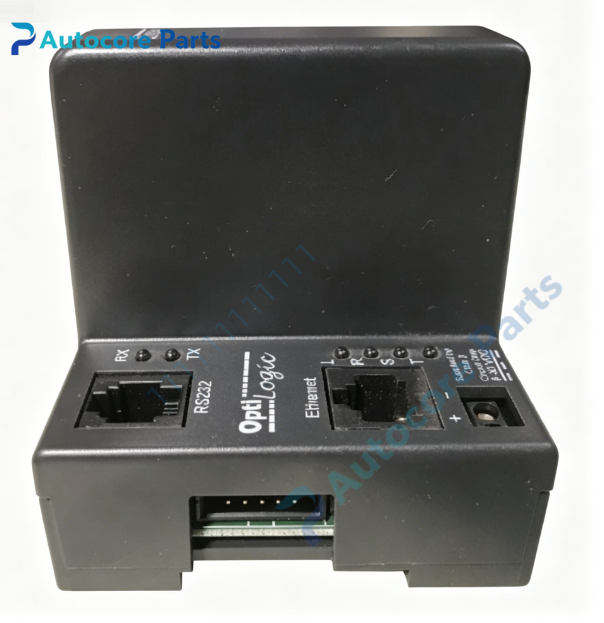

InterfaceDC power terminal block,10BaseT Ethernet port,RS232 serial port,OptiLogic backplane slot connectors,power/link/fault LED indicators on housing of OL4054.

Diagnostic

No Ethernet link:IP address mismatch or cable fault. Module undetected:Poor backplane contact or damaged edge connector. Intermittent signal:Vibration causing loose module seating. Rack power alarm:Power overload or loose power wiring.

Product Brief

OL4054 OPTIMATION INC OptiLogic 4-slot RTU base chassis,8~30VDC,16VA,10BaseT Ethernet supporting OptiLogic/UDP & IPX plus RS232,DIN rail mount,for compact semiconductor wet bench and chemical delivery distributed I/O control system.
