OPTIMATION OP-640 HMI Operator Panel

Module Feature

OPTIMATION OP-640 belongs to OPtiMate series compact operator panel. It features 4 line × 20 character LCD screen, 5 customizable function keys and built-in LED indicator bars. Supports multiple PLC communication protocols, can display text, numeric and floating-point process data. Compact panel mount design, easy integration into control cabinet for industrial equipment operation and status monitoring. Widely used in chemical delivery, wet process and factory automation systems.

Working principle: Communicates with PLC via serial bus, reads real-time process variables from controller, displays data on LCD. Operator triggers function keys to send operation commands back to PLC. Onboard components: LCD display panel, membrane function keypad, LED indicator bars, main control PCB, serial communication port, metal panel housing

LED indicatorsStatus LED bar indicators on front panel

Hardware self-diagnosis

Visual inspection, keypad function test, LCD display check, PLC communication test

Programming software

OP-WINEDIT configuration software for screen message editing, tag mapping and program download

Electrical & Process Parameters

Power supply:24V DC Display:4×20 character LCD Input:5 programmable function keys Communication:Serial PLC interface Panel mounting:Front panel cutout installation

Mechanical & Structure

Mounting:Control cabinet front panel mounting Protection class:IP65 (front face)

Environmental

Operating temperature:0℃ ~ +50℃ Ambient humidity:5~95% non-condensing Certification:CE compliant Status:OPTIMATION OPtiMate series HMI operator panel

System compatibility

Supports connection with multiple brands of PLC for process parameter display, alarm message and manual operation control.

Function

OP-640 operator panel manufactured by OPTIMATION. It acts as human machine interface between operator and PLC system, displays equipment status and alarms, receives manual operation inputs. Keypad aging or communication cable damage may lead to key failure or data loss. It is compact HMI component for industrial automation control cabinet.

Installation

Follow lockout/tagout safety procedure before installation. Power off control system. Insert unit into cabinet panel cutout and secure mounting clips. Connect 24V DC power and PLC serial communication cable. Download screen project and test communication before production startup.

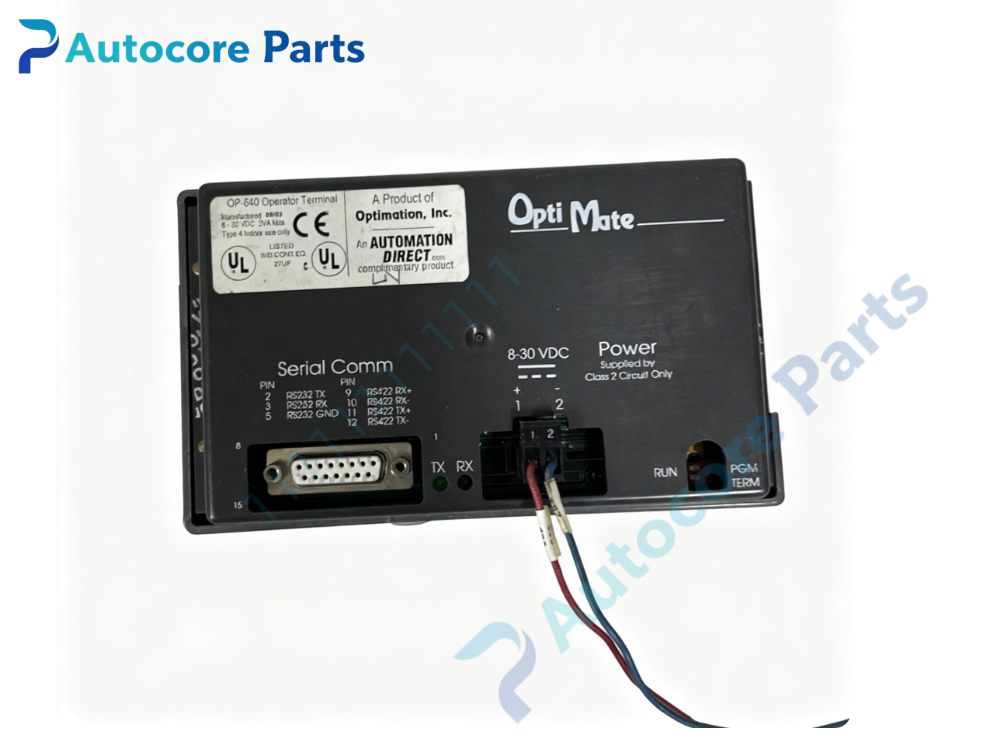

InterfaceSerial communication port, 24V DC power connector, front panel keypad and LED indicators on housing of OP-640.

Diagnostic

Blank LCD screen: Power supply failure or display damage. Key no response: Membrane keypad wear. No PLC data: Communication parameter mismatch or wiring fault. Flickering display: Loose power connection.

Product Brief

OP-640 OPTIMATION OPtiMate series compact operator panel,4×20 LCD,programmable function keys,serial PLC communication,for industrial automation equipment HMI operation and alarm monitoring.
