OPTIMATION OL2208 OptiLogic Digital Input Module

Module Feature

OPTIMATION OL2208 is OptiLogic series 8-channel DC digital input module. Each channel adopts optocoupler galvanic isolation, input voltage range 10~30VDC, supports sourcing or sinking wiring mode (all 8 channels must use same wiring type). Equipped with independent per-channel LED status indicator and removable screw terminal block. Standard OptiLogic form factor, can be hot-plugged into OL4054, OL4058, OL4228 RTU racks. Widely applied for flow switches, limit switches, level sensors and safety interlock signal collection in semiconductor wet bench and chemical delivery control systems.

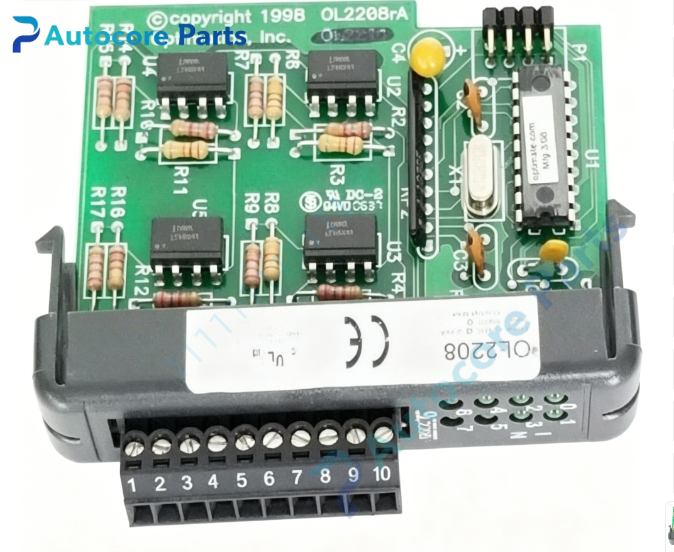

Working principle: Field 10-30VDC discrete signal passes through optocoupler isolation circuit. Optical isolation separates field side and control backplane bus to eliminate ground loop interference. Digital on/off status is transmitted to RTU mainboard via backplane bus for host controller reading. Onboard components:8 optocoupler isolation circuits, input signal conditioning PCB, removable terminal block, backplane edge connector, front panel per-channel LED indicators

LED indicatorsIndividual channel input status LED indicators on module front panel

Hardware self-diagnosis

Visual inspection, each channel trigger test, opto-isolation continuity test, backplane slot recognition verification

Programming software

OPTIMATION OL System Builder software for channel tag mapping and input filter parameter configuration

Electrical & Process Parameters

Power supply:Power supplied from rack backplane Input range:10 ~ 30VDC Channel quantity:8 opto-isolated DC input points Input impedance:2.7kΩ Min on current per point:3.3mA, Max on current per point:11mA Wiring mode:Sourcing / Sinking selectable Terminal:Removable pluggable screw terminal block

Mechanical & Structure

Mounting:OptiLogic rack slot snap-in mounting Protection class:IP20

Environmental

Operating temperature:0℃ ~ +50℃ Ambient humidity:5~95% non-condensing Certification:CE compliant Status:OPTIMATION OptiLogic 8-point digital input I/O module

System compatibility

Compatible with OL4054, OL4058, OL4228 OptiLogic RTU chassis; works with OPTIMATION OP / OM series operator panels and Modbus host PLC.

Function

OL2208 digital input module manufactured by OPTIMATION. It collects on-off discrete signals from field sensors and safety switches. Damaged optocoupler or loose terminal wiring will cause false triggering or missing input signals. It is core digital signal acquisition component for wet process automation control rack.

Installation

Follow lockout/tagout safety procedure before installation. Power off OptiLogic RTU rack. Insert module into empty rack slot and lock latches. Wire field sensor cables to removable terminal block, select sourcing/sinking wiring mode. Test all 8 channels before production startup.

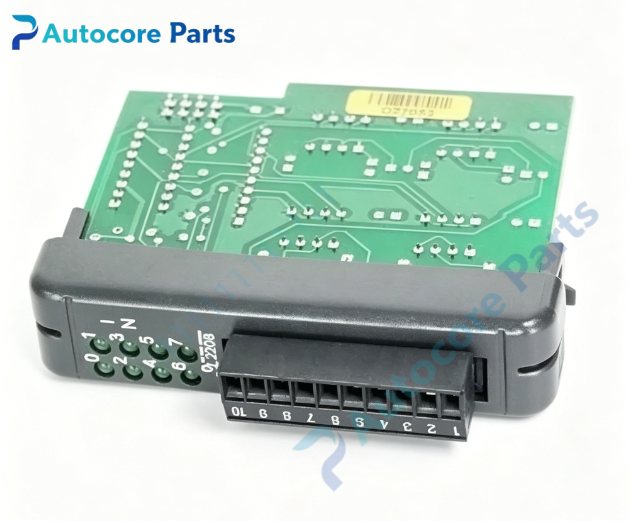

InterfaceField signal removable terminal block, OptiLogic backplane edge connector, per-channel input status LED indicators on housing of OL2208.

Diagnostic

No input detection:Field power missing or optocoupler failure. False trigger:Ground loop interference or unshielded long wiring. Intermittent signal:Loose terminal screw connection. Module not detected:Poor backplane edge connector contact.

Product Brief

OL2208 OPTIMATION OptiLogic 8-channel opto-isolated DC digital input module,10-30VDC sourcing/sinking selectable,with per channel LED indicator,for semiconductor wet bench chemical delivery safety interlock and discrete sensor signal acquisition.
