OPTIMATION OL2109 Transistor Output Module

Module Feature

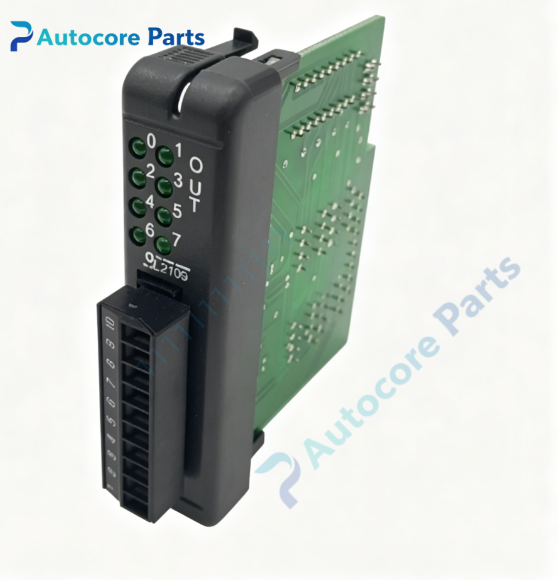

OPTIMATION OL2109 belongs to OptiLogic series 8-channel DC sinking transistor output module. It adopts optocoupler isolation design, NPN open collector sinking output, each channel maximum continuous load current 300mA, peak voltage up to 80VDC. Two internal common groups for field wiring. Each channel has independent front panel LED status indicator, equipped with removable screw terminal block. Standard OptiLogic form factor, hot-plug compatible with OL4054, OL4058, OL4228 RTU racks. Widely used to drive solenoid valves, status LED lamps, small DC relays in semiconductor wet bench and chemical delivery control systems.

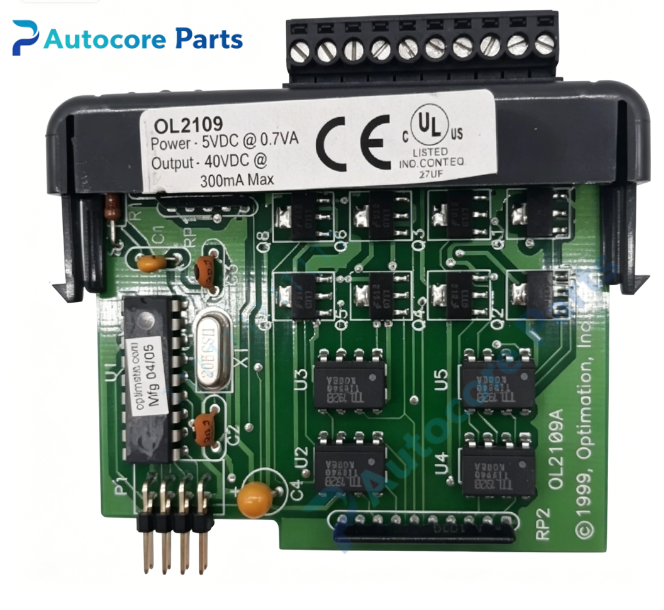

Working principle: RTU backplane sends on/off control signal to the module. After optocoupler isolation, NPN transistor turns on to sink current from field DC load. Optical isolation separates field side and control backplane bus, protecting rack internal circuit from field surge interference. Onboard components:8 optocoupler isolation circuits, NPN transistor output array, signal conditioning PCB, removable terminal block, backplane edge connector, front panel per-channel LED indicators

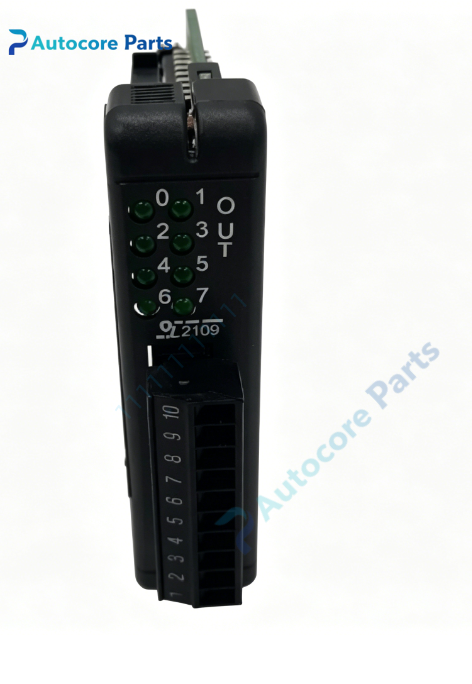

LED indicatorsIndividual channel output status LED indicators on module front panel

Hardware self-diagnosis

Visual inspection, each channel load trigger test, opto-isolation continuity test, backplane slot recognition verification

Programming software

OPTIMATION OL System Builder software for output tag mapping, fail-safe state configuration, channel on/off logic setup

Electrical & Process Parameters

Power supply:Power supplied from rack backplane,140mA Output type:NPN open collector sinking output Load voltage range:0 ~ 40VDC, peak 80VDC Per channel continuous current:300mA Per channel surge current:1A for 5 seconds On-state voltage drop:0.75V@100mA,0.95V@300mA Common group:2 isolated common terminals Terminal:Removable pluggable screw terminal block

Mechanical & Structure

Mounting:OptiLogic rack slot snap-in mounting Protection class:IP20

Environmental

Operating temperature:0℃ ~ +50℃ Ambient humidity:5~95% non-condensing Certification:CE compliant Status:OPTIMATION OptiLogic 8-point sinking transistor output I/O module

System compatibility

Compatible with OL4054, OL4058, OL4228 OptiLogic RTU chassis; works with OPTIMATION OP / OM series operator panels and Modbus host PLC.

Function

OL2109 transistor output module manufactured by OPTIMATION. It switches small DC loads such as solenoids and indicator lights. Surge without flyback diode will damage transistor output. It is digital output component for wet process automation control rack.

Installation

Follow lockout/tagout safety procedure before installation. Power off OptiLogic RTU rack. Insert module into empty rack slot and lock latches. Wire field DC loads to removable terminal block, add flyback diode for inductive loads. Test all 8 channels before production startup.

InterfaceField load removable terminal block, OptiLogic backplane edge connector, per-channel output status LED indicators on housing of OL2109.

Diagnostic

Output no switching:No control signal or damaged transistor. Channel burnout:Inductive load without flyback diode. Intermittent output:Loose terminal screw connection. Module not detected:Poor backplane edge connector contact.

Product Brief

OL2109 OPTIMATION OptiLogic 8-channel opto-isolated NPN sinking transistor output module,0~40VDC load,300mA per channel,for semiconductor wet bench chemical delivery solenoid valve and status indicator drive control.
