OPTIMATION OP-1510 HMI Operator Terminal

Module Feature

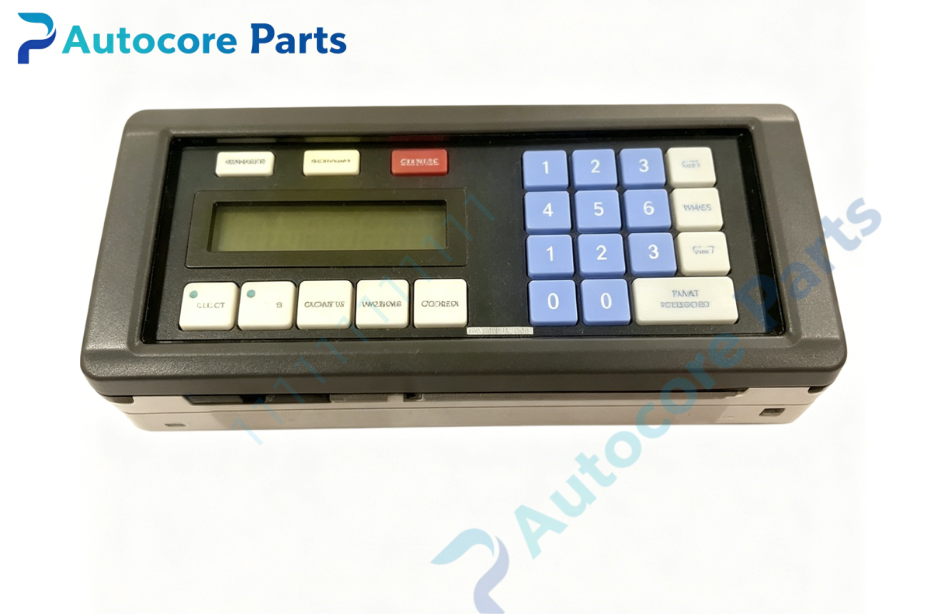

OPTIMATION OP-1510 belongs to OptiMate series operator terminal. Equipped with 2 line × 20 character LCD display, full numeric keypad and menu navigation keys, supports up to four-level menu and submenu function for parameter editing. Features 3 front-panel LED status indicators, RS232/RS422 serial communication interface. Panel cutout mounting design, can read PLC process variables, display alarm messages and modify setpoints. Widely used for semiconductor wet bench and chemical delivery control cabinet.

Working principle: It communicates with PLC or OptiLogic RTU via serial bus. Reads real-time process data and alarms to LCD, receives keypad input commands and parameter modifications, then transmits data back to host controller. Onboard components: 2×20 LCD screen, membrane numeric keypad, menu navigation keys, LED indicator bar, main control PCB, 15-pin D-sub serial communication port, metal front housing

LED indicatorsThree LED status indicator bars on front panel

Hardware self-diagnosis

Visual inspection, keypad function test, LCD display check, serial communication test, menu storage verification

Programming software

OP-WINEDIT configuration software for message editing, menu programming, tag mapping and project download

Electrical & Process Parameters

Power supply:8 ~ 30V DC Display:2×20 character LCD Input:Numeric keypad + menu function keys Communication:RS232 / RS422 serial interface Mount type:Control cabinet front panel cutout mounting

Mechanical & Structure

Mounting:Control cabinet front panel mounting Protection class:IP65 (front face)

Environmental

Operating temperature:0℃ ~ +50℃ Ambient humidity:5~95% non-condensing Certification:CE compliant Status:OPTIMATION OptiMate series operator terminal

System compatibility

Works with OPTIMATION OptiLogic RTU racks and multiple brands PLC, supports process monitoring, alarm display and manual parameter adjustment.

Function

OP-1510 operator terminal manufactured by OPTIMATION. It acts as human-machine interface for wet process control system, supporting multi-level menu operation for parameter change. Membrane keypad aging or communication parameter mismatch may lead to key failure or data loss. It is advanced HMI component for chemical delivery automation cabinet.

Installation

Follow lockout/tagout safety procedure before installation. Power off control system. Insert unit into cabinet panel cutout and secure mounting clips. Connect 24V DC power and serial communication cable. Download menu project and test communication before production startup.

Interface15-pin D-sub RS232/RS422 connector, DC power terminal, front panel keypad and LED indicators on housing of OP-1510.

Diagnostic

Blank LCD screen: Power supply fault or display damage. Key input no response: Membrane keypad wear. No PLC data: Serial communication parameter mismatch or wiring fault. Menu lost: Corrupted configuration project.

Product Brief

OP-1510 OPTIMATION OptiMate series operator terminal,2×20 LCD,multi-level menu function,RS232/RS422 serial port,for semiconductor wet bench HMI monitoring,alarm display and parameter modification.
