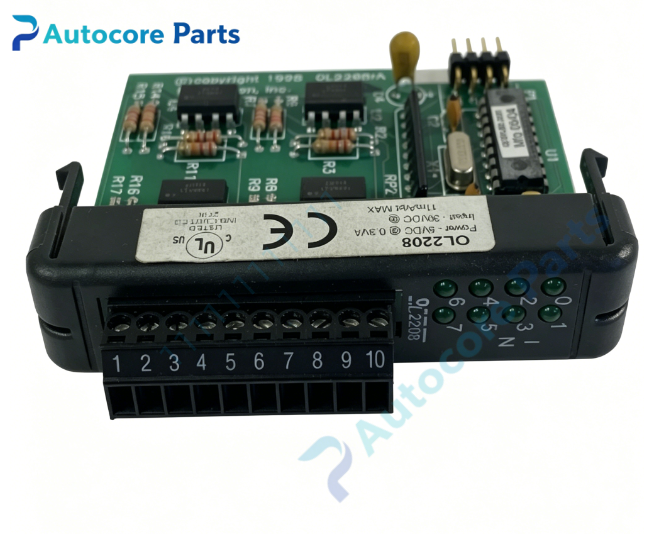

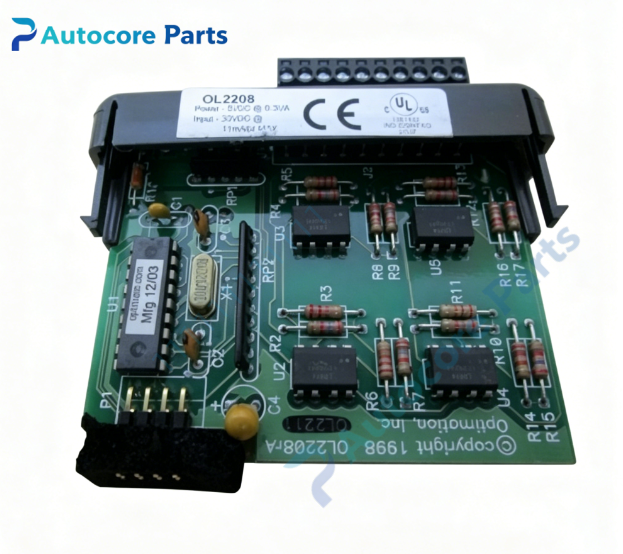

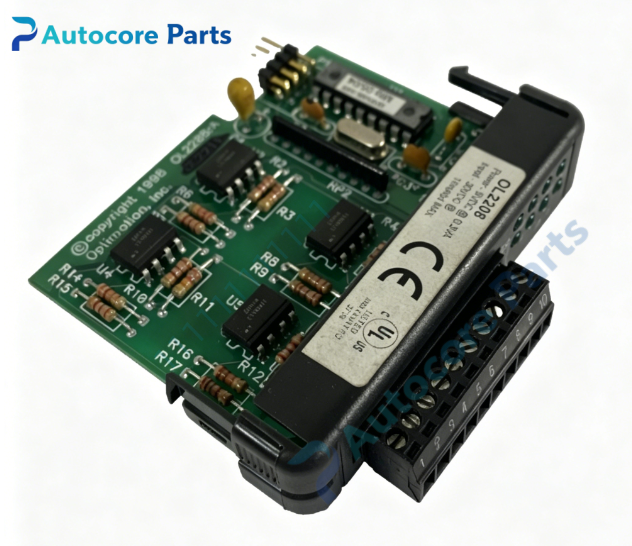

OPTIMATION OL2208RA Digital Input Module

Module Feature

OPTIMATION OL2208RA belongs to OptiLogic series rugged 8-channel DC digital input module. It is the reinforced variant of OL2208, equipped with independent optocoupler isolation per channel, supports 10~30VDC field signal, sourcing / sinking mode selectable. Enhanced anti-vibration and anti-corrosion coating on PCB, removable pluggable terminal block, individual LED status indicator for each channel. Standard OptiLogic form factor, plug directly into OL4228 and other OptiLogic RTU rack. Widely used for limit switch, level sensor and safety interlock signal collection in semiconductor wet process and chemical delivery systems.

Working principle: Field 10-30VDC discrete signal passes optocoupler isolation circuit, converts field signal into internal logic signal, transmits digital status data to RTU mainboard through backplane bus. Reinforced PCB coating protects circuit from humid chemical cabinet atmosphere. Onboard components: 8 optocoupler isolation units, signal conditioning PCB with protective coating, removable terminal block, backplane edge connector, front panel channel LED indicators

LED indicatorsIndividual channel status LED indicators on module front panel

Hardware self-diagnosis

Visual inspection, each channel trigger test, opto isolation resistance test, backplane communication verification

Programming software

OPTIMATION OL System Builder software for channel tag definition and I/O mapping configuration

Electrical & Process Parameters

Power supply:60mA from rack backplane Input range:10 ~ 30V DC Input impedance:2.7K Ohm Isolation:Channel-to-backplane opto-isolation Input mode:Sourcing or sinking (all channels same mode) Terminal:Removable plug-in screw terminal block

Mechanical & Structure

Mounting:OptiLogic rack slot snap-in mounting Protection class:IP20

Environmental

Operating temperature:0℃ ~ +55℃ Ambient humidity:5~95% non-condensing Certification:CE compliant Status:OPTIMATION OptiLogic series rugged digital input module

System compatibility

Compatible with OL4228 and other OptiLogic RTU racks, matched with OPTIMATION HMI and PLC for discrete signal acquisition.

Function

OL2208RA digital input module manufactured by OPTIMATION. It collects on/off status from field sensors and safety interlock switches. Reinforced coating improves reliability inside humid chemical control cabinets. Damaged opto-element or loose terminal wiring will cause false trigger or missing signal. It is rugged discrete input component for wet bench automation control rack.

Installation

Follow lockout/tagout safety procedure before installation. Power off OptiLogic RTU rack. Insert module into empty rack slot and lock mounting latches. Wire field sensor cables to removable terminal block, plug terminal back to module. Test all 8 input channels before production startup.

InterfaceRemovable field wiring terminal block, OptiLogic backplane edge connector, per-channel LED indicators on housing of OL2208RA.

Diagnostic

False input trigger: Electrical noise or ground loop interference. Channel no response: Open field wiring or optocoupler failure. Intermittent signal: Loose screw terminal connection. Module not detected: Poor backplane contact.

Product Brief

OL2208RA OPTIMATION OptiLogic rugged 8-channel opto-isolated DC digital input module,10-30VDC,sourcing/sinking selectable,enhanced PCB coating,for semiconductor wet bench chemical delivery system discrete signal and safety interlock acquisition.
