OPTIMATION OL4054 RTU Base

Module Feature

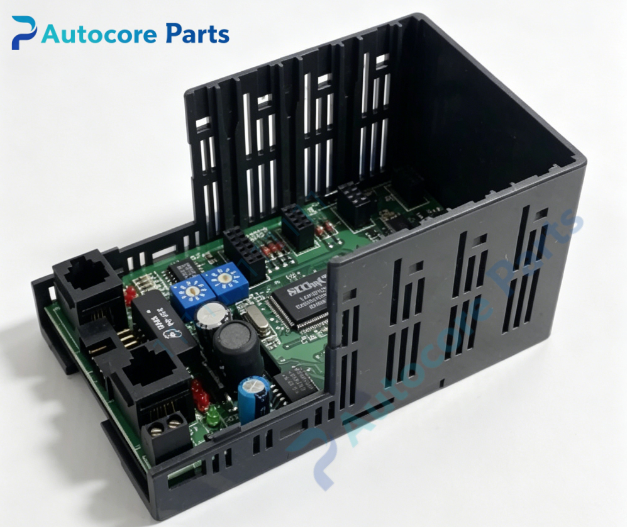

OPTIMATION OL4054 is OptiLogic compact 4-slot Remote Terminal Unit base chassis. It accepts standard pluggable OL series I/O modules, equipped with integrated backplane bus for data and power distribution. Supports 10BaseT Ethernet with OptiLogic/UDP and IPX protocols. DIN rail housing, compact footprint for small control cabinets. Widely used for mini semiconductor wet bench and compact chemical fluid delivery control systems.

Working principle: The internal backplane provides power and high-speed communication bus to all inserted I/O cards. It collects discrete and analog field signals from I/O modules, transmits data to host controller over Ethernet, and executes control commands sent from PLC or operator terminal. Onboard components: Metal DIN rail housing, main control PCB, 10BaseT Ethernet port, 4 module slots, DC power terminal block, backplane edge connectors, front panel power/fault LEDs

LED indicatorsPower, Ethernet link and rack fault LED indicators on front panel

Hardware self-diagnosis

Visual inspection, backplane continuity test, Ethernet communication test, module slot detection verification

Programming software

OPTIMATION OL System Builder software for network address setup, I/O mapping and fault log configuration

Electrical & Process Parameters

Power supply:8 ~ 30VDC Backplane power output:2.8A @5V Communication:10BaseT Ethernet, OptiLogic/UDP, IPX Slot count:4 standard OptiLogic I/O slots Mount type:DIN rail cabinet mounting

Mechanical & Structure

Mounting:DIN rail snap-in mounting Protection class:IP20

Environmental

Operating temperature:0℃ ~ +50℃ Ambient humidity:5~95% non-condensing Certification:CE compliant Status:OPTIMATION OptiLogic 4-slot RTU chassis

System compatibility

Compatible with all OL series OptiLogic I/O modules such as OL2208, OL2108, OL2408, OL2205; works with OPTIMATION OP series operator panels and mainstream PLC.

Function

OL4054 RTU chassis manufactured by OPTIMATION. It serves as compact remote I/O rack for small scale process control. Poor backplane contact or incorrect network settings will cause module offline and communication loss. It is lightweight distributed I/O base for wet bench automation cabinet.

Installation

Follow lockout/tagout safety procedure before installation. Power off control cabinet. Mount chassis on DIN rail. Insert I/O modules into available slots and lock latches. Wire DC power and Ethernet cable. Configure network parameters and test all I/O channels before production startup.

InterfaceDC power terminal block, 10BaseT Ethernet connector, OptiLogic backplane slot connectors, power/link/fault LED indicators on housing of OL4054.

Diagnostic

No Ethernet link:IP address mismatch or cable damage. Module not detected:Poor backplane contact or damaged edge connector. Intermittent I/O:Vibration causing loose module seating. Rack power alarm:Power overload or loose wiring.

Product Brief

OL4054 OPTIMATION OptiLogic 4-slot RTU base chassis,10BaseT Ethernet,DIN rail mount,for compact semiconductor wet bench and chemical delivery distributed I/O control.
