OPTIMATION PTC-5800 8-Slot Rack

Module Feature

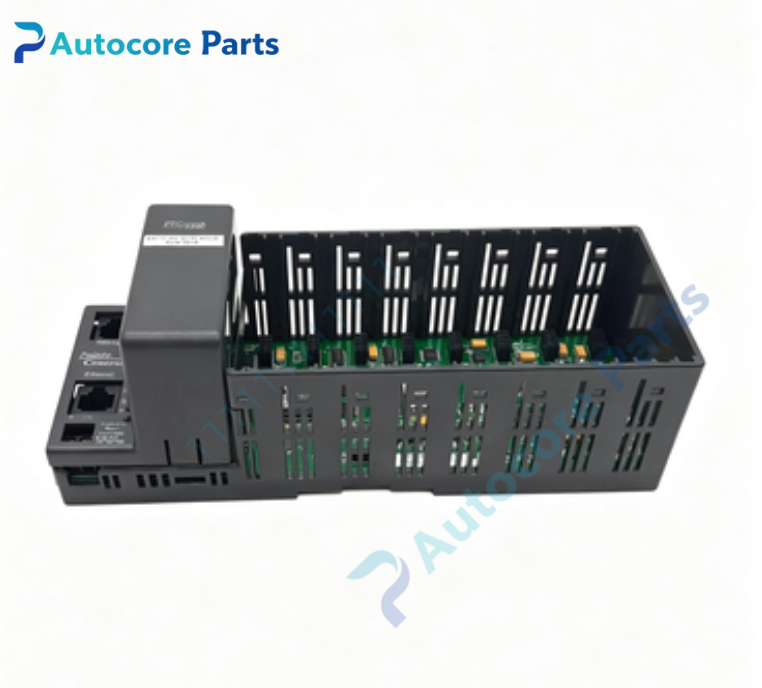

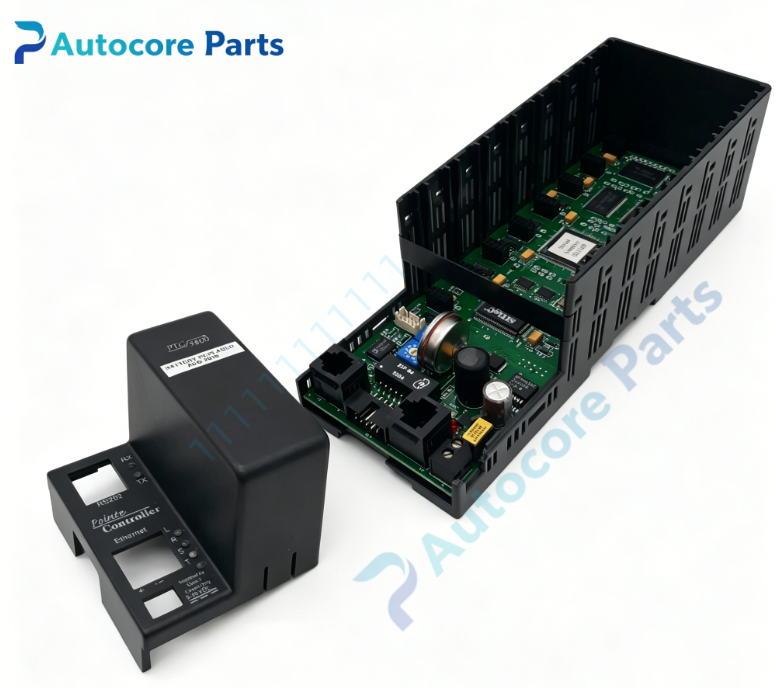

OPTIMATION PTC-5800 is an 8-slot passive backplane rack compatible with OptiLogic I/O modules. It provides 8 standard slots for hot-plug OL series digital input, relay output and analog modules. The passive backplane distributes DC power and parallel logic bus between all inserted cards. 19-inch rack mount / DIN rail optional mounting structure, robust metal housing with anti-corrosion coating. Widely deployed for semiconductor wet bench and chemical fluid delivery control cabinet.

Working principle: The passive backplane routes power and signal bus to each module slot. It has no onboard CPU; all logic and communication functions are handled by installed OptiLogic RTU and I/O cards. The metal frame provides mechanical support and electromagnetic shielding for I/O modules. Onboard components: Metal rack housing, passive backplane PCB, 8 module edge connectors, power distribution terminal block, front panel status LED indicators

LED indicatorsPower supply status LED indicators on front panel

Hardware self-diagnosis

Visual inspection, backplane continuity test, slot connector inspection, module insertion fit verification

Programming software

OPTIMATION OL System Builder software for I/O tag mapping and module configuration

Electrical & Process Parameters

Power supply:24V DC Slot quantity:8 standard OptiLogic module slots Backplane type:Passive signal backplane Mount type:19 inch rack mount / DIN rail optional Form factor:8-slot industrial chassis

Mechanical & Structure

Mounting:19” rack or DIN rail cabinet mounting Protection class:IP20

Environmental

Operating temperature:0℃ ~ +50℃ Ambient humidity:5~95% non-condensing Certification:CE compliant Status:OPTIMATION passive 8-slot backplane rack

System compatibility

Compatible with all OptiLogic OL I/O modules including OL2208, OL2108, OL2408, OL2205; works with OPTIMATION RTU and OP series operator panels.

Function

PTC-5800 8-slot rack manufactured by OPTIMATION. It serves as mechanical and passive signal carrier for multi-point I/O system. Bent backplane pins or dirty edge connectors will cause intermittent module communication failure. It is a modular rack assembly component for wet process automation control cabinet.

Installation

Follow lockout/tagout safety procedure before installation. Power off control cabinet. Mount chassis on 19” rack or DIN rail. Insert I/O modules into slots and lock latches. Wire 24VDC power terminal. Install blank filler plates for unused slots before production startup.

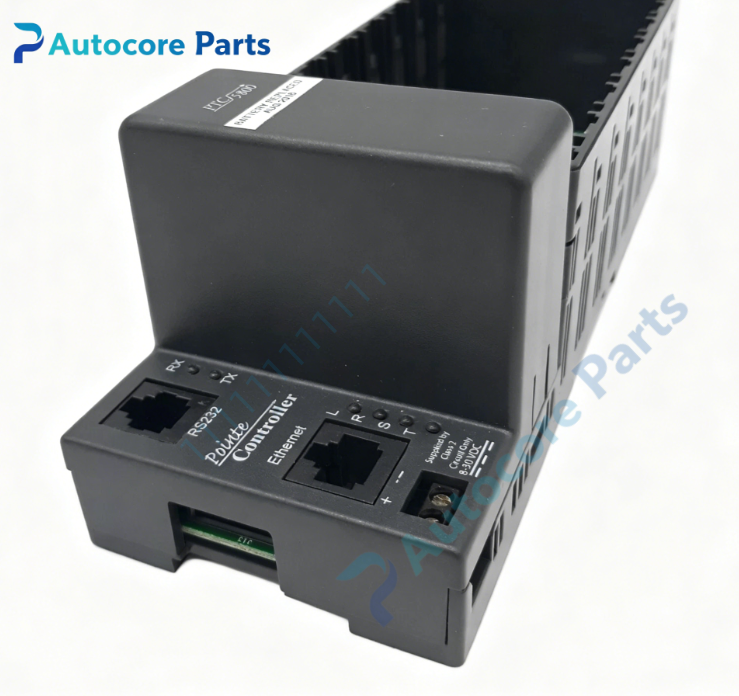

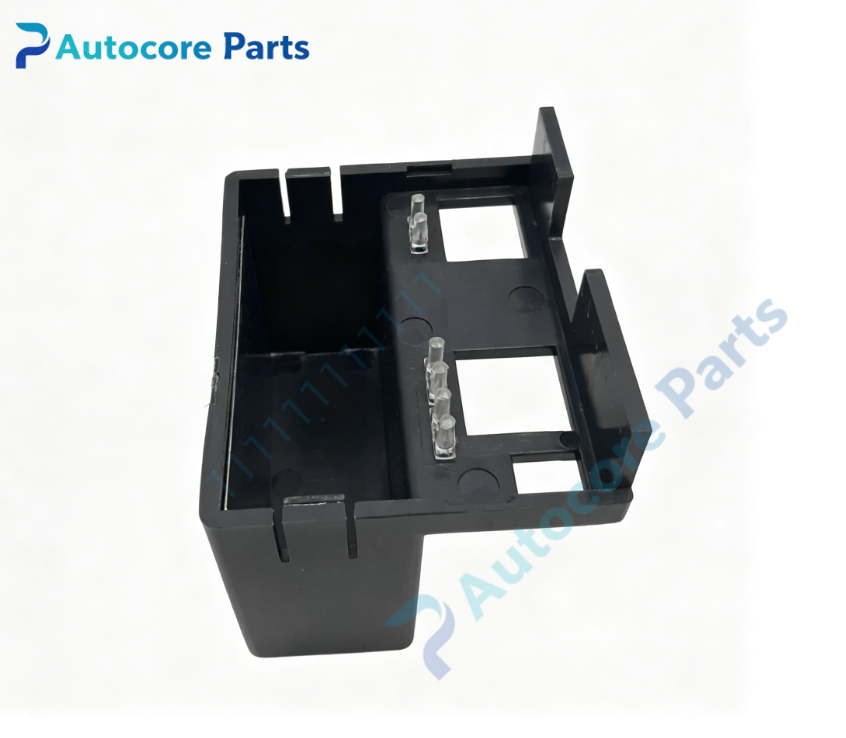

InterfaceDC power terminal block, 8 OptiLogic backplane edge connectors, power LED indicators on housing of PTC-5800.

Diagnostic

Module intermittent:Dirty or damaged edge connector on backplane. No power to slot:Loose power terminal wiring. Module not detected:Bent pin on backplane connector. Excess noise:Missing blank filler plate on empty slot.

Product Brief

PTC-5800 OPTIMATION 8-slot passive backplane rack chassis,compatible with OptiLogic OL series I/O modules,24VDC power supply,for semiconductor wet bench and chemical delivery control cabinet I/O assembly.
