OPTIMATION OL2205 Digital Input Module

Module Feature

OPTIMATION OL2205 belongs to OptiLogic series CLEAN FAST high-speed digital input module. It provides 4 opto-isolated input channels supporting 10~30V AC/DC field signals. Built-in high-speed noise cleaning filter to eliminate workshop electrical interference. Each channel has independent signal isolation to prevent ground loop disturbance. Standard OptiLogic form factor, plug directly into OL4054, OL4228, OL4058 OptiLogic RTU rack. Widely used for level sensors, flow switches and safety interlock signal acquisition in semiconductor wet bench and chemical delivery control systems.

Working principle: Field AC/DC discrete signal passes optocoupler isolation circuit. Onboard clean filter removes electrical noise, signal status is transmitted to RTU mainboard through backplane bus. Fast capture circuit ensures quick response for critical safety interlock signals. Onboard components:4 optocoupler isolation circuits, high-speed noise filter PCB, removable terminal block, backplane edge connector, front panel per-channel LED indicators

LED indicatorsIndividual channel input status LED indicators on module front panel

Hardware self-diagnosis

Visual inspection, each channel trigger test, opto-isolation resistance test, backplane communication verification

Programming software

OPTIMATION OL System Builder software for channel tag definition and input filter parameter setup

Electrical & Process Parameters

Power supply:Supplied from rack backplane Input range:10 ~ 30V AC / DC Channel:4 opto-isolated points Feature:CLEAN FAST high speed noise filter Form factor:OptiLogic standard rack module Terminal:Removable pluggable screw terminal block

Mechanical & Structure

Mounting:OptiLogic rack slot snap-in mounting Protection class:IP20

Environmental

Operating temperature:0℃ ~ +50℃ Ambient humidity:5~95% non-condensing Certification:CE compliant Status:OPTIMATION OptiLogic fast clean digital input module

System compatibility

Compatible with OL4054, OL4228, OL4058 OptiLogic RTU racks, matched with OPTIMATION HMI and host PLC.

Function

OL2205 CLEAN FAST digital input module manufactured by OPTIMATION. It collects fast status signals from field sensors and safety interlock switches. Built-in filter suppresses electrical noise in humid chemical cabinets. Damaged optocoupler or loose wiring will cause false triggering or missing field signals. It is high-speed 4-point discrete input component for wet bench automation rack.

Installation

Follow lockout/tagout safety procedure before installation. Power off OptiLogic RTU rack. Insert module to empty rack slot and lock mounting latches. Wire field sensor cables to removable terminal block. Test all 4 input channels before production startup.

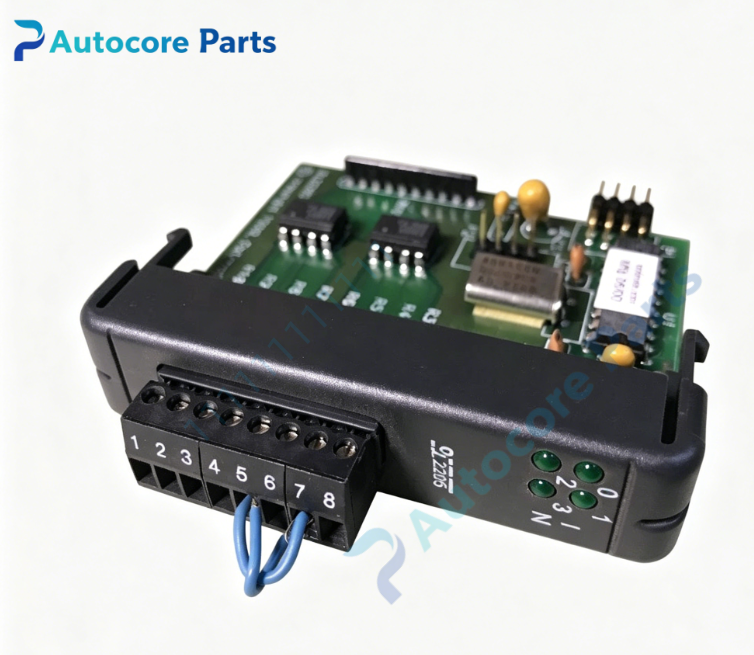

InterfaceField wiring removable terminal block, OptiLogic backplane edge connector, per-channel status LED indicators on housing of OL2205.

Diagnostic

False input trigger: Electrical noise or ground loop interference. No signal detection: Field cable open or opto element failure. Intermittent signal: Loose terminal screw connection. Module not detected: Poor backplane contact.

Product Brief

OL2205 OPTIMATION OptiLogic CLEAN FAST 4-channel opto-isolated AC/DC digital input module,10-30V range,with high-speed noise filtering,for semiconductor wet bench and chemical delivery safety interlock and sensor signal acquisition.
