OPTIMATION OL2205 CLEAN FAST Digital Input Module

Module Feature

OPTIMATION OL2205 CLEAN FAST belongs to OptiLogic series high-speed digital input module. It provides isolated clean fast digital input channels for reading sensor, limit switch and interlock status signals. High-speed signal capture, built-in noise filtering and channel isolation to prevent ground loop interference. Standard OptiLogic form factor, pluggable into OptiLogic rack backplane. Widely used in semiconductor wet bench and chemical delivery control systems.

Working principle: External dry contact or 24V digital signal enters isolated input circuit. Onboard filter eliminates electrical noise, signal status is transmitted to RTU base via internal backplane bus for host controller reading. Onboard components: Isolated input optocouplers, noise filter circuit, signal sampling PCB, backplane edge connector, metal front panel

LED indicatorsPer-channel input status LED indicators on module front panel

Hardware self-diagnosis

Visual inspection, channel input trigger test, isolation resistance test, backplane communication verification

Programming software

OPTIMATION OL System Builder software for channel definition, signal filtering parameter setup and fault log reading

Electrical & Process Parameters

Power supply:24V DC Signal type:Dry contact / 24V digital input Isolation:Channel-to-backplane electrical isolation Feature:Fast response with noise clean filter Form factor:OptiLogic standard rack module

Mechanical & Structure

Mounting:OptiLogic rack slot snap-in mounting Protection class:IP20

Environmental

Operating temperature:0℃ ~ +50℃ Ambient humidity:5~95% non-condensing Certification:CE compliant Status:OPTIMATION OptiLogic series fast clean input I/O module

System compatibility

Designed for OL4228 and other OptiLogic RTU racks, compatible with OPTIMATION HMI and host PLC systems.

Function

OL2205 CLEAN FAST digital input module manufactured by OPTIMATION. It collects fast digital status signals from field sensors and safety interlocks. Noise filter suppresses workshop electrical interference. Channel optocoupler damage or wiring short will lead to false signal triggering. It is high-speed digital input component for wet process safety interlock control.

Installation

Follow lockout/tagout safety procedure before installation. Power off OptiLogic RTU rack. Align module to empty rack slot and push until latches lock. Connect field sensor wiring to module terminals. Configure channel parameters and test each input channel before production startup.

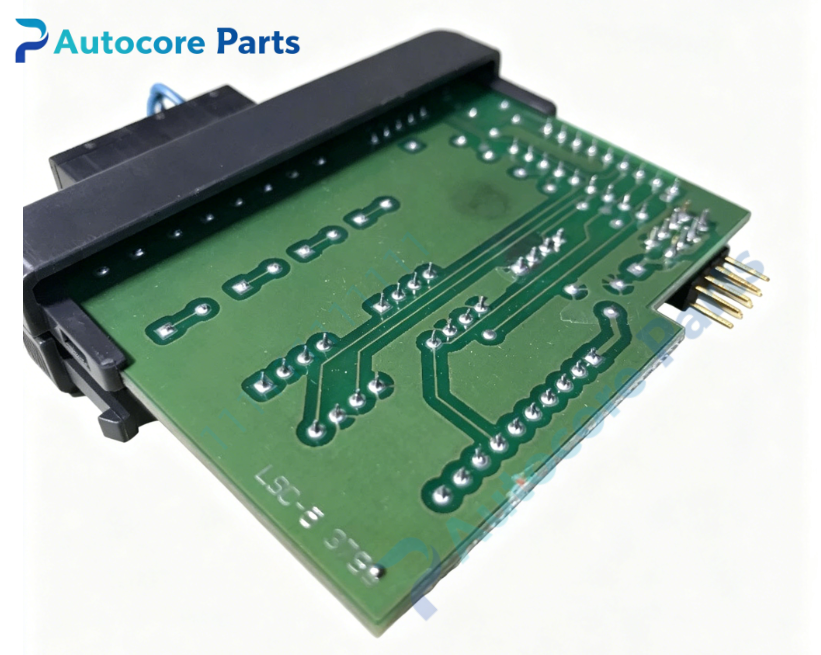

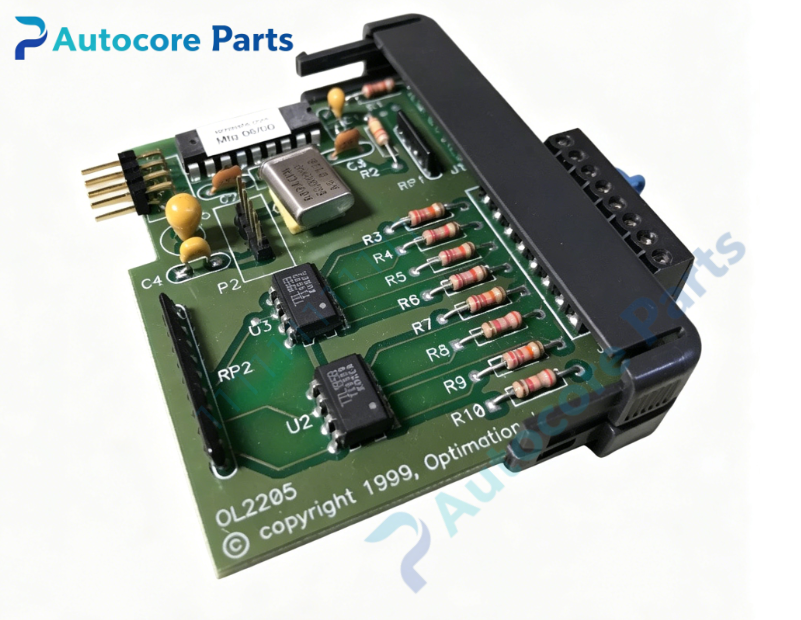

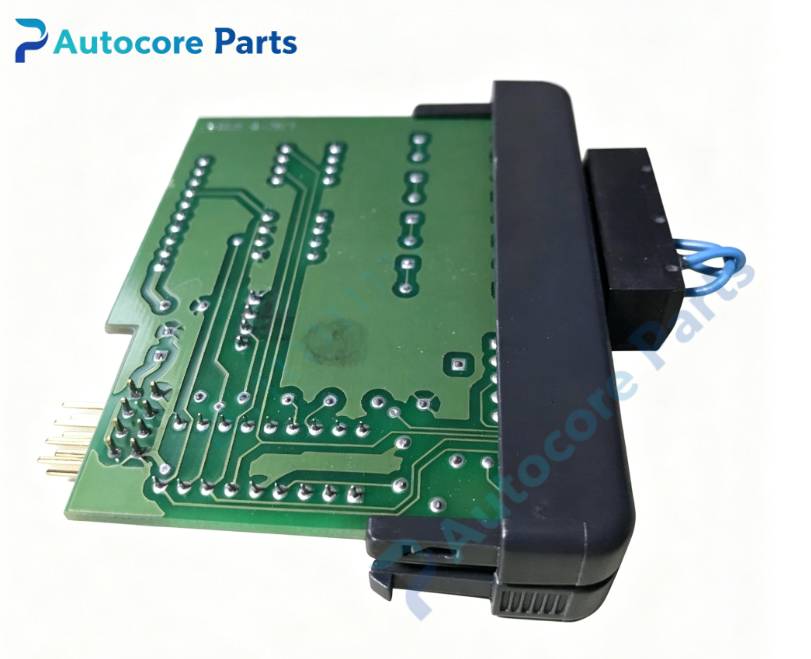

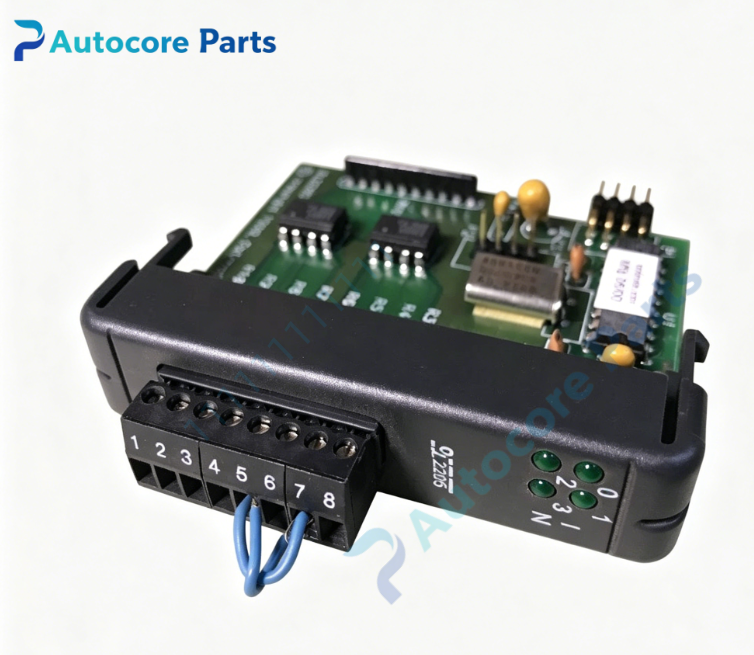

InterfaceField signal terminal block, OptiLogic backplane edge connector, per-channel status LED indicators on housing of OL2205.

Diagnostic

False input trigger: Electrical noise or ground loop interference. No signal detection: Field wiring open or optocoupler failure. Intermittent signal: Loose terminal wiring. Channel no response: Module backplane contact fault.

Product Brief

OL2205 OPTIMATION OptiLogic CLEAN FAST digital input module,isolated high-speed input with noise filtering,for semiconductor wet bench and chemical delivery safety interlock signal acquisition.
