OPTIMATION OL4228 8 SLOT REMOTE RTU Base

Module Feature

OPTIMATION OL4228 8 SLOT REMOTE belongs to OptiLogic series remote terminal unit base. It is an 8-slot rack chassis for hot-pluggable OptiLogic I/O modules, equipped with built-in Ethernet communication circuit supporting Modbus TCP and OptiLogic/UDP protocol. DIN rail mounting design, flexible combination of digital input, analog output and relay modules, widely used for distributed control of semiconductor wet bench and chemical delivery systems.

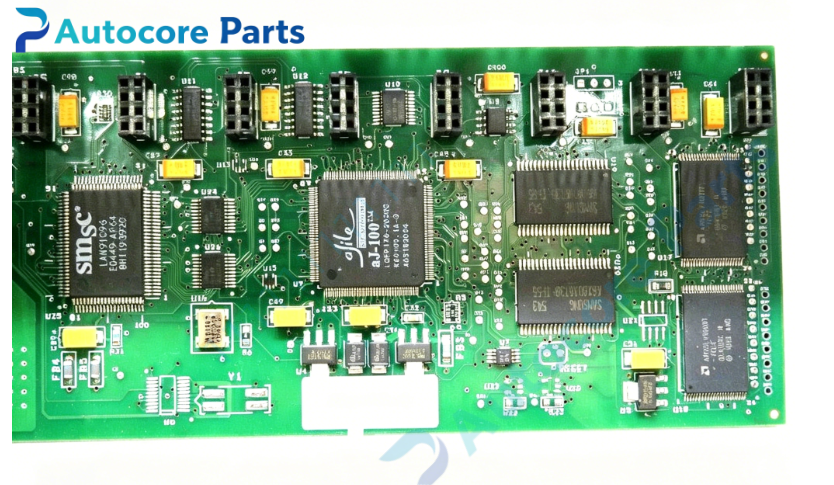

Working principle: The base collects signals from all I/O modules inserted in 8 slots, packages the data and transmits to host controller over Ethernet bus. It receives host commands and distributes control signals to corresponding I/O modules via internal backplane bus. Onboard components: Main control PCB, Ethernet communication module, backplane bus connector, 8 module slots, power input terminal, metal DIN rail housing, status LED indicators

LED indicatorsPower, network communication and fault LED indicators on front panel

Hardware self-diagnosis

Visual inspection, power supply test, backplane communication test, Ethernet link test, module slot recognition verification

Programming software

OPTIMATION OL System Builder software for network address configuration, I/O module mapping and fault log reading

Electrical & Process Parameters

Power supply:24V DC Communication:10BaseT Ethernet, Modbus TCP / OptiLogic UDP Slot quantity:8 I/O module slots Mount type:DIN rail mounting Backplane:OptiLogic internal bus

Mechanical & Structure

Mounting:DIN rail cabinet mounting Protection class:IP20

Environmental

Operating temperature:0℃ ~ +50℃ Ambient humidity:5~95% non-condensing Certification:CE compliant Status:OPTIMATION OptiLogic series 8-slot remote RTU base

System compatibility

Compatible with all OptiLogic I/O modules, connects to PLC, host PC and OPTIMATION HMI panels via Ethernet for distributed I/O control.

Function

OL4228 8 SLOT REMOTE RTU base manufactured by OPTIMATION. It serves as distributed remote I/O rack, expands system I/O points and reduces long-distance field wiring. Backplane damage or Ethernet communication failure will lead to module disconnection and signal loss. It is core remote I/O rack component for chemical delivery and wet process automation.

Installation

Follow lockout/tagout safety procedure before installation. Power off control system. Mount base on DIN rail, insert I/O modules into slots. Connect 24V DC power and Ethernet network cable. Configure network parameters and test I/O communication before production startup.

InterfaceEthernet port, 24V DC power terminal, internal backplane slot connectors, status LED indicators on housing of OL4228.

Diagnostic

No network link: Ethernet cable fault or IP address mismatch. Module not recognized: Backplane contact poor or module damage. Power failure: Power supply overload or wiring loose. Intermittent signal: Vibration causing loose module seating.

Product Brief

OL4228 OPTIMATION OptiLogic 8-slot remote RTU base,Modbus TCP Ethernet communication,DIN rail mount,for distributed remote I/O expansion of semiconductor wet process and chemical delivery control system.
