HIMA H7020 Safety Terminal Module

Technical Specifications

Model:H7020

Brand:HIMA

Matching plug:Combicon plug FK-MCP 1,5/8

Mounting:35mm standard DIN rail installation

Protection class:IP20

Operating temperature:-20~+60℃

Relative humidity:5~95% non-condensing

Weight:0.23kg

Certification:CE

System compatibility

Designed for HIMA HIMatrix PES safety system,serves as field signal wiring terminal unit for HIMatrix safety modules,widely used in petrochemical,chemical plant ESD emergency shutdown and F&G fire gas protection system.

Function

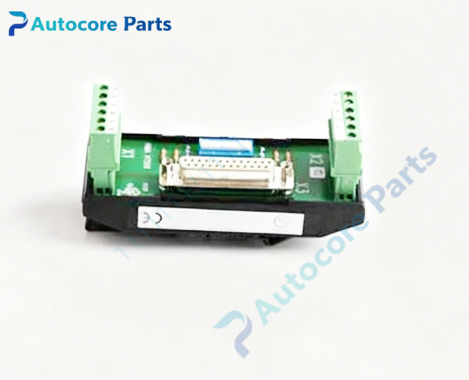

HIMA H7020 safety terminal module is used for field signal wiring connection of HIMatrix safety I/O modules.It uses Combicon plug FK-MCP 1,5/8 for fast wiring and quick module replacement,simplifies cabinet wiring and facilitates on-site maintenance.

Installation

Clip onto standard 35mm DIN rail inside control cabinet,complete field signal wiring and connect Combicon plug to HIMatrix safety module.

Interface

‑Field signal wiring terminals

‑Combicon plug FK-MCP 1,5/8 connector

‑DIN rail fixing buckle

Circuit feature

Compact terminal wiring structure,stable signal transmission,good vibration resistance,suitable for safety instrument system signal wiring in hazardous industrial environment.

Feature

HIMatrix series safety terminal module H7020. Common faults:terminal loosening,connector pin oxidation,cable aging.Check connector contact status before commissioning.

Diagnostic

Poor contact or loose wiring causes abnormal signal transmission;controller executes safety interlock logic.

Built‑in function

H7020 provides convenient field signal wiring for HIMatrix safety I/O modules in SIS safety instrumented system emergency shutdown protection,widely used for process plant safety spare replacement.

Product Brief

H7020 belongs to HIMA HIMatrix family,DIN rail mounted safety terminal module matched with Combicon plug FK-MCP 1,5/8. Verify module compatibility before ordering.Test wiring connection during commissioning. ESD anti‑static protection shall be followed during installation.
