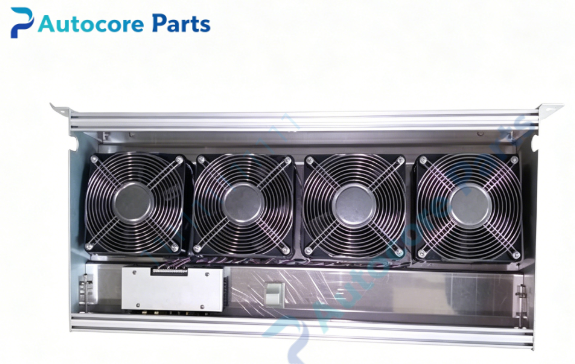

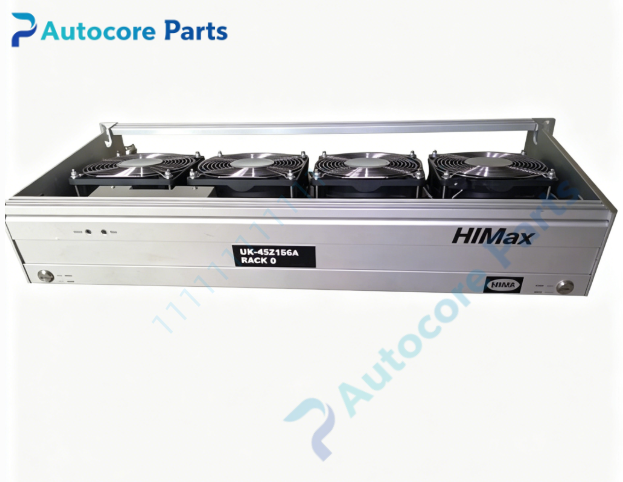

HIMA X-FAN1803 Rack Fan Module

Technical Specifications

Model:X-FAN1803

Brand:HIMA

Power supply:24V DC (-15%~+20%)

Fan quantity:Dual redundant fans

Max current:0.8A

Diagnosis:Independent fan speed monitoring,stall detection,dry contact fault relay output

Mounting:19 inch rack installation,hot swappable

Protection class:IP20

Operating temperature:0~+60℃

Relative humidity:5~95% non-condensing

Weight:4.5kg

Certification:CE

System compatibility

Designed for HIMA HIMax PES safety system,provides forced air cooling for CPU,communication and I/O modules in safety cabinet,widely used in petrochemical,chemical plant ESD emergency shutdown and F&G fire gas protection system.

Function

HIMA X-FAN1803 redundant dual fan cooling assembly.Two fans work in parallel redundant mode.If one fan stalls or fails,the remaining fan continues cooling without system shutdown.The module monitors each fan rotating speed independently.When fan stall or speed drop detected,it triggers fault alarm and sends dry contact warning signal to safety controller.It supports hot swap replacement without powering off the safety rack.

Installation

Install into standard 19-inch cabinet slot,lock the fixing bracket,connect 24V DC power and alarm signal wiring,check fan running and alarm function via SILworX engineering software.

Interface

‑24V DC power terminals

‑Dry contact fault relay terminals

‑LED indicators for power,fan status and fault

Circuit feature

Redundant fan design,independent speed supervision,hot swap support,short-circuit protection,strong anti-electromagnetic interference,meets safety requirements for hazardous industrial environment.

Feature

HIMax series redundant cabinet fan X-FAN1803. Common faults:fan bearing aging,cable loose,fan stall.Confirm cabinet compatibility before replacement.

Diagnostic

Fan stall or abnormal rotation speed triggers fault alarm;controller executes safety warning logic.

Built‑in function

X-FAN1803 provides redundant forced cooling and fan fault monitoring for SIS safety instrumented system emergency shutdown protection,widely used for process plant safety spare replacement.

Product Brief

X-FAN1803 belongs to HIMA HIMax family,19 inch rack mounted 24VDC dual redundant hot-swappable fan module with independent speed monitoring. Verify cabinet compatibility before ordering.Test fan and diagnosis function during commissioning. ESD anti‑static protection shall be followed during installation.
